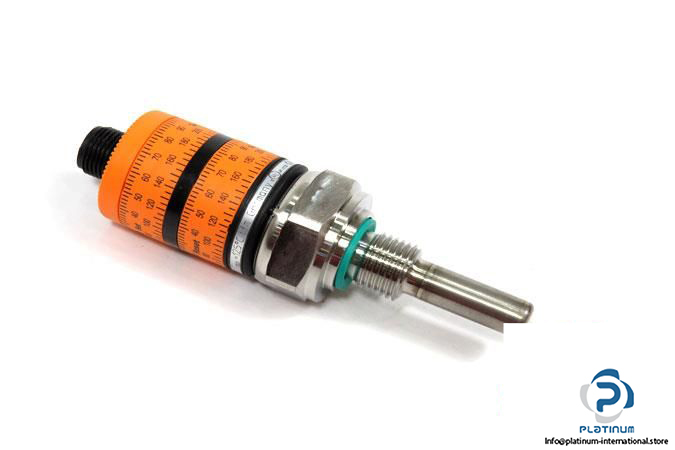

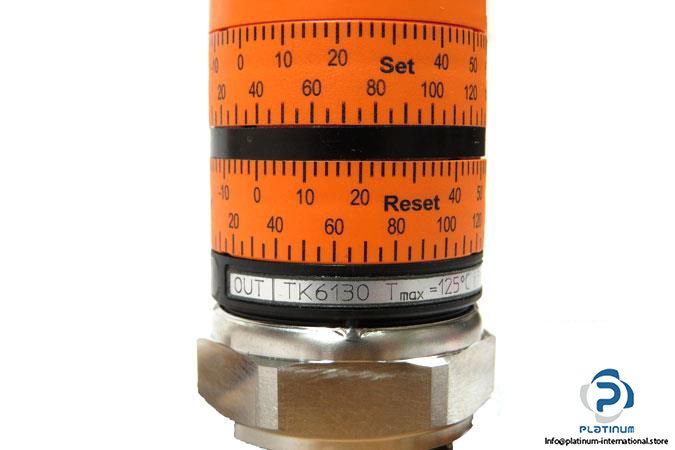

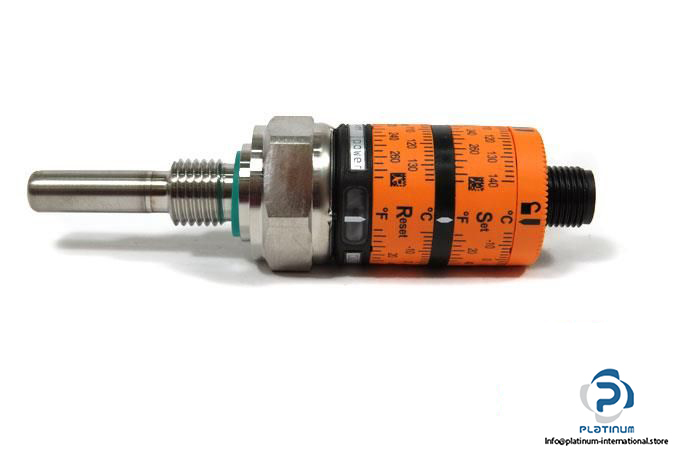

IFM TK6130 Temperature Switch With Intuitive Switch Point Setting

Manufacturer: ifm

Type: TEMPERATURE SWITCH WITH INTUITIVE SWITCH POINT SETTING

Part No.: TK6130

MRN: TK-025CLFR14-QKPKG/US

Measuring element: 1 x Pt 1000

Measuring range: -25 … 140°C

Pressure rating: 300 bar

Media: Liquids and gases

Operating Voltage: 9.6 … 32 V DC

Switching output current: 500 mA DC

Power on delay time: 0.5 S

Electrical design: PNP

Output Function: Complementary

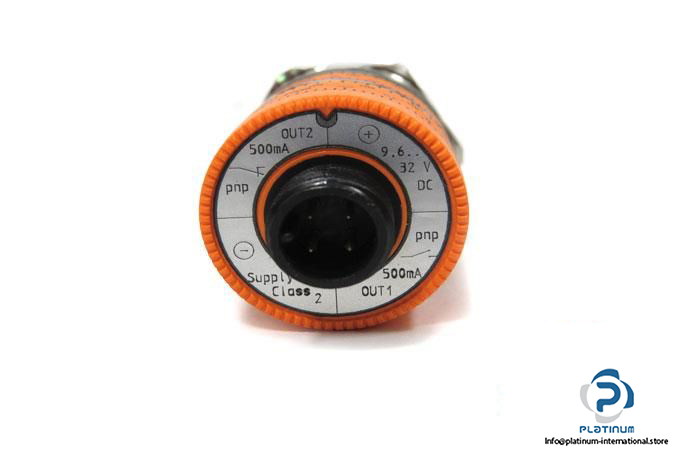

Connector type: M12 Connector

Protection Class: III

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Material: stainless steel

Weight: 102.5 g

Condition: New
