IKO CF10-1VBUURM Stud Type Track Roller

In stock3 unitsReady to ship
Manufacturer:
IKO
Type:
Standard Type Cam Followers With Cage/With Hexagon Hole
Model:
CF10-1 V B UURM
Manufacturer
IKO
SKU
1029876
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacturer: IKO
Type: Standard Type Cam Followers With Cage/With Hexagon Hole
Model: CF10-1 V B UURM

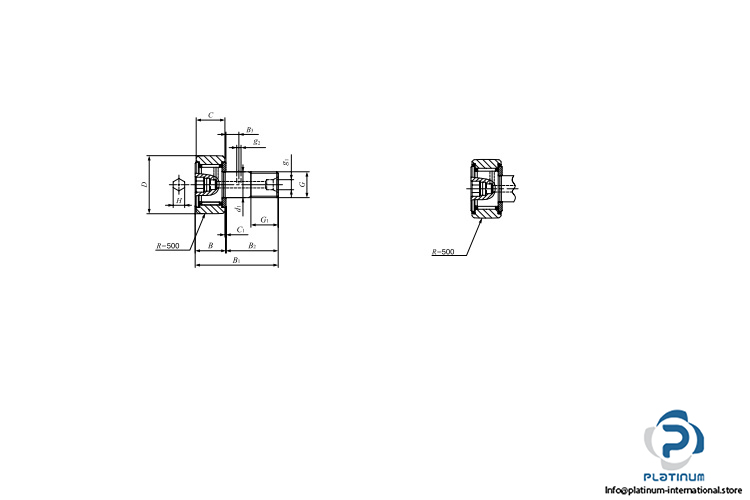

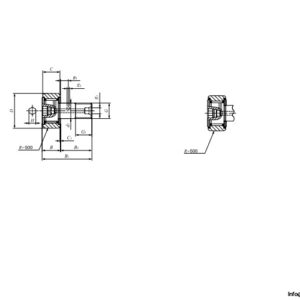

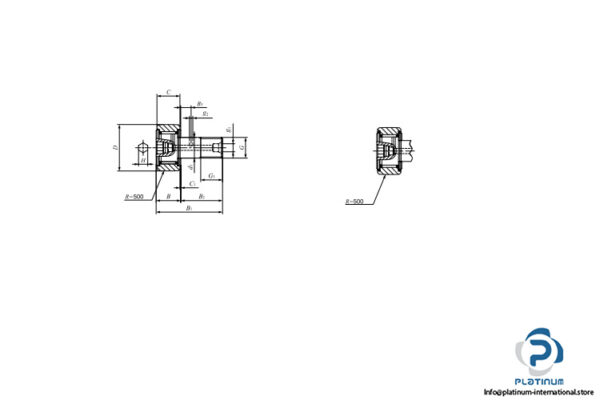

Dimensions
Outside diameter D: 26 mm
Stud diameter d1: 10 mm
Total length B1: 36.2 mm
Width outer ring C: 12 mm
Thread stud G: M10x1
B: 13.2 max
rs min: 0.30
C1: 0.6 mm
Basic load ratings:
Dynamic C:
 5430 N
Static C0: 6890 N
Maximum tightening torque: 14.7 Nm
Maximum allowable static load:
 6890 N
Roller guide method: V, Full Complement Type
sealing: UU, with Seal Type incorporates seals in the narrow clearances
Stud head shape type: B, hexagon hole for hexagon bar wrench
Shape of outer ring outside surface: R, With crowned outer ring
Item per set: 2
