ILC DPM-5 Progressive Lubrication
New
Available on request
111,11$
Progressive Lubrication
The ILC DPM 5 Progressive Lubrication system features 5 pistons, 15-250 bar pressure range, and a wide temperature range. Includes ILC 49.050.0 micro switch with IP65 protection for enhanced reliability in lubrication applications.2505ANDbarDividerGalvanisedGreaseILCIndustrialIP65lubricationMicrooilOperatingPistonsPressureProgressiveProtectionSteelSwitchSystemVAC
Used
Available on request 122,22$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

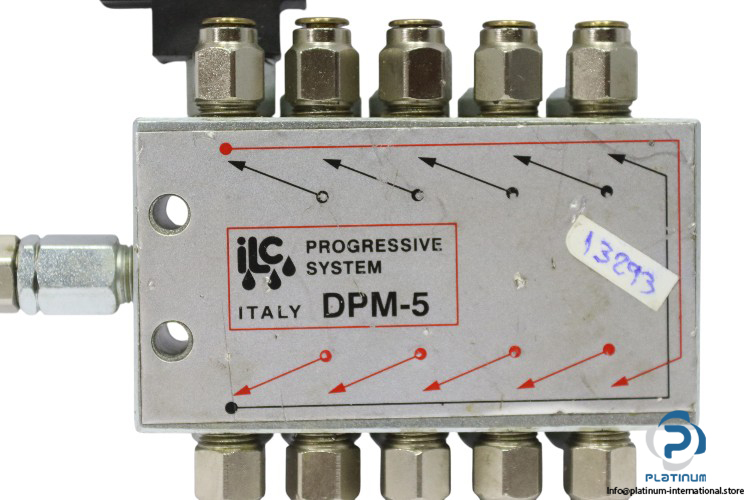

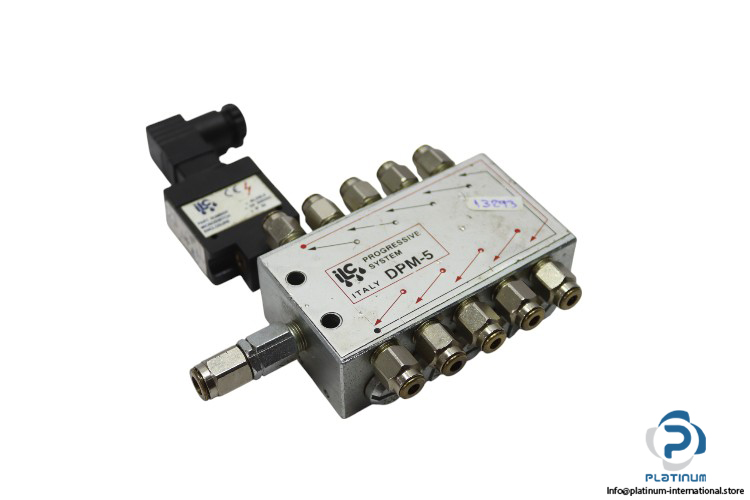

ILC DPM 5 Progressive Lubrication
The ILC DPM 5 is a highly efficient progressive lubrication system designed for industrial applications. With 5 pistons and an operating pressure range of 15 to 250 bar, it is suitable for a variety of lubrication tasks. The system supports both oils and greases, providing versatile lubrication capabilities for machinery and equipment.
Manufacturer: ILC
Type: Progressive Lubrication
Model: DPM 5
Technical Data:
- Lubricants: Min. Oils 15 Cst “ Max. Grease Nlgi 2
- Number of Pistons: 5
- Operating Pressure: 15 / 250 Bar
- Operating Temperature: -20 / +100°C
- Divider Material: Galvanised Steel
- Inlet Port Size: G1/8

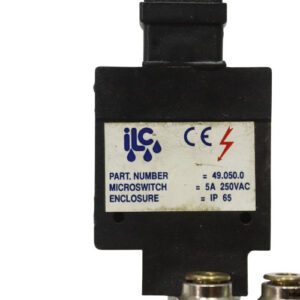

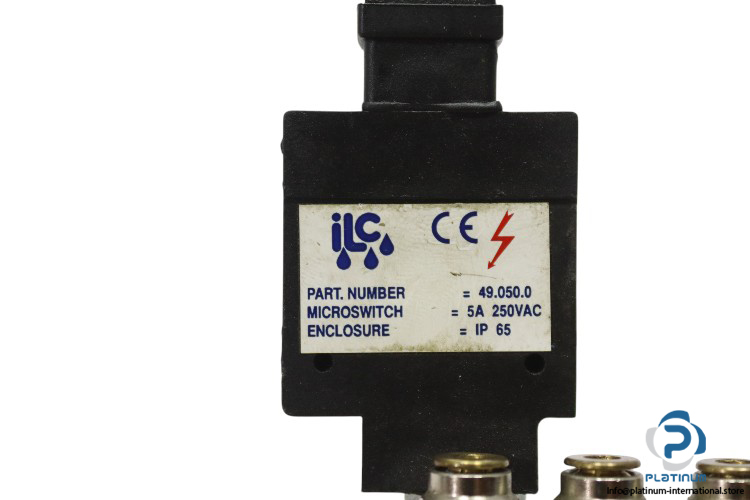

Attached Micro Switch:
- Part No.: ILC 49.050.0
- Voltage: 250 VAC
- Current: 5A
- Protection Class: IP65
