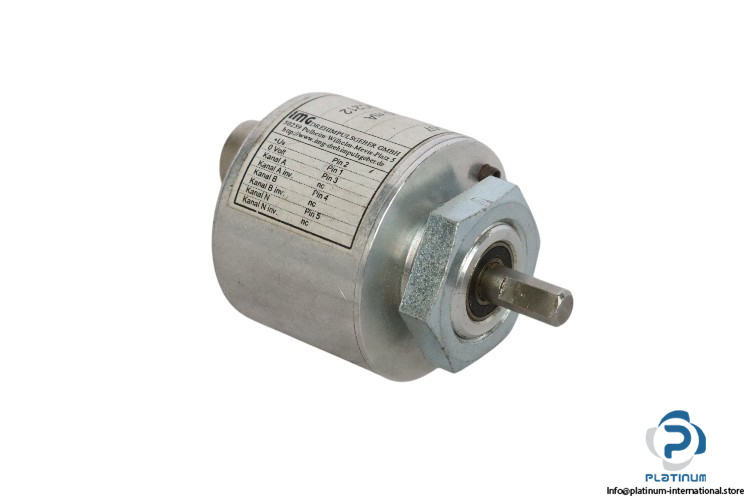

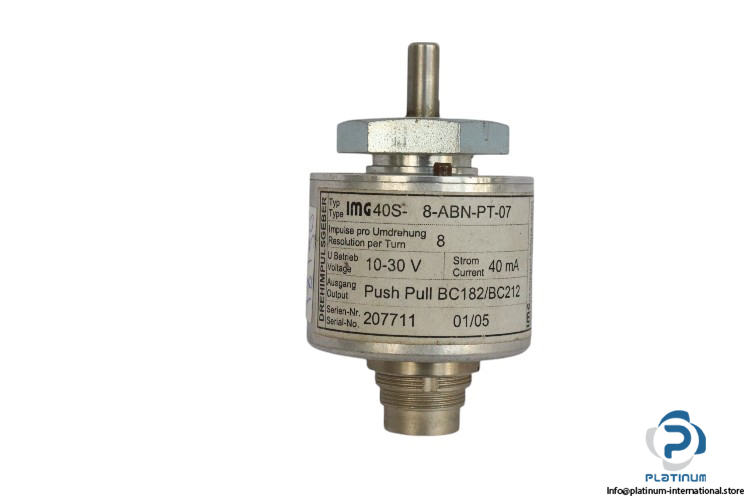

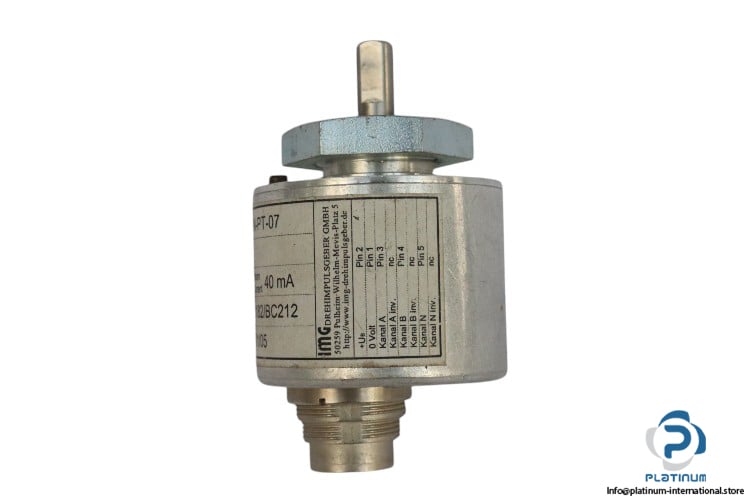

IMG IMG40S-8-ABN-PT-07 Incremental Encoder
IMG IMG40S8ABNPT07 Incremental Encoder High-precision incremental encoder with a solid shaft, IP64 protection, and 8 resolution/turn. Features a push-pull output and an M16 5-pin connector for industrial motion control applications.
IMG IMG40S8ABNPT07 Incremental Encoder
The IMG40S8ABNPT07 is a high-precision incremental encoder designed for industrial applications requiring reliable motion control feedback. With its robust solid shaft and high-quality materials, it ensures durability and performance in demanding environments.
Key Details:
Manufacturer: IMG
Type: Incremental Encoder
Model: IMG40S8ABNPT07
Materials:
Environmental Conditions:
The IMG40S8ABNPT07 incremental encoder is an excellent choice for precise motion control applications, offering reliable performance in industrial automation systems.
| Shaft Type | Solid Shaft |
| Operating Voltage | 10 to 30 V DC |
| Input Current | 40 mA |
| Output Load | 80 mA |
| Shaft Diameter | 6 mm |
| Resolution | 8 Resolution/turn |
| Protection Degree | IP64 |
| Output Circuit | Push Pull |
| Output Signals | A, B, N |
| Connection | Connector M16, 5-Pins |
| Flange | 40 mm |
| Housing | Aluminum solid |
| Shaft | Stainless Steel |
| Operating Temperature | 0 to +80 °C |
