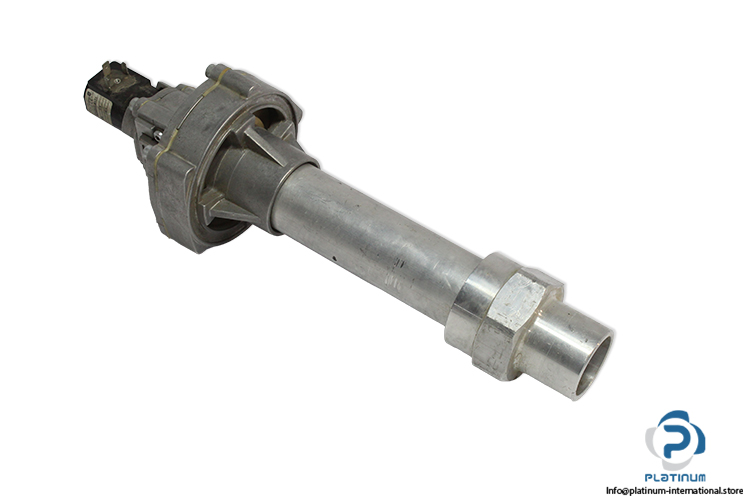

IMI Norgren 8392600 0409 Solenoid Actuated Diaphragm Valve
Solenoid Valve IMI NORGREN 8392600 0409 solenoid actuated diaphragm valve for neutral gases with high pressure range and 2/2 normally closed function, supplied with BUSCHJOST 8296600 pneumatic control valve.
Manufacturer: IMI NORGREN
Type: Solenoid Actuated Diaphragm Valve
Model: 8392600 0409
Fluid: neutral gases
Design: Poppet valve with spring return
Function: 2/2-way normally closed
Type of Actuation: Electrically
Operating Pressure: 5.8 to 116 bar
Differential pressure: 0.4 bar
Nominal Flow Rate: 300 l/min
Pneumatic Connection: 40 mm
Material: Aluminium
Ambient Temperature: -20 to 85 °C
Attachment:

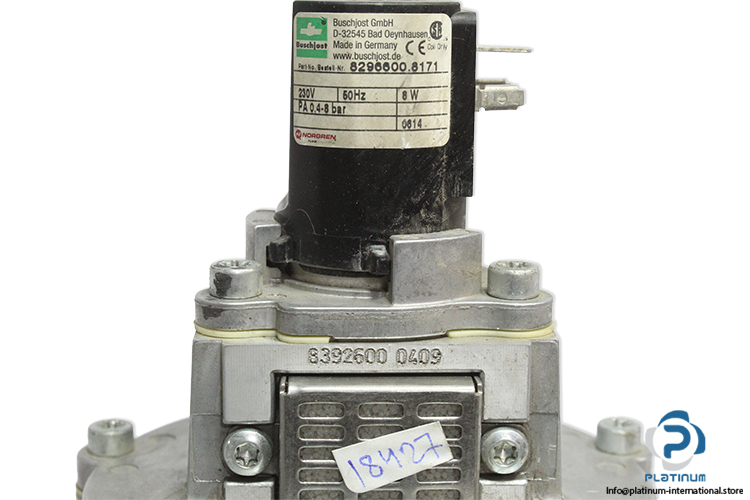

BUSCHJOST 8296600 8171 PNEUMATIC CONTROL VALVE
Manufacturer: BUSCHJOST NORGREN
Type: Pneumatic Control Valve
Model: 8296600 8171
Part No.: 0814
Operating Pressure: 0.4 / 8 bar
Supply Voltage: 230 V AC
Frequency: 50 Hz
Power Consumption: 8 W
Protection Class: IP65
| Condition | Used |
