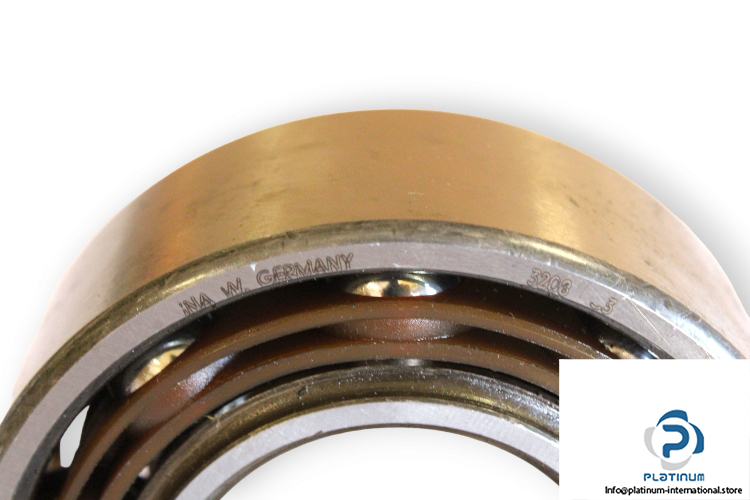

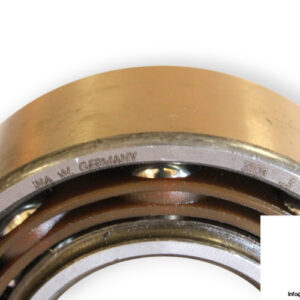

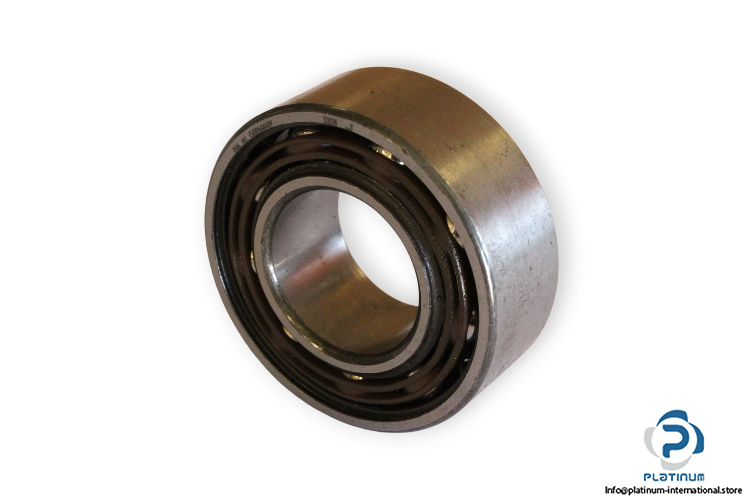

INA 3208 C3 Double ROW Angular Contact Ball Bearing

Manufacturer: Schaeffler INA
Type: Double Row Angular Contact Ball Bearing
Model: 3208 C3

Dimensions
Bore Diameter d: 40 mm
Outer diameter D: 80 mm
Width B: 30.2 mm
Contact angle: 30 °
Basic load ratings:
Dynamic C_r: 51000 N
Static C_0r: 38000 N
Fatigue load limit C_ur: 2650 N
Limiting speed: 8900 rpm
Reference speed: 9100 rpm
Cage: TVH, solid cage made of glass-fiber reinforced polyamid PA66
Axial internal clearance: C3
