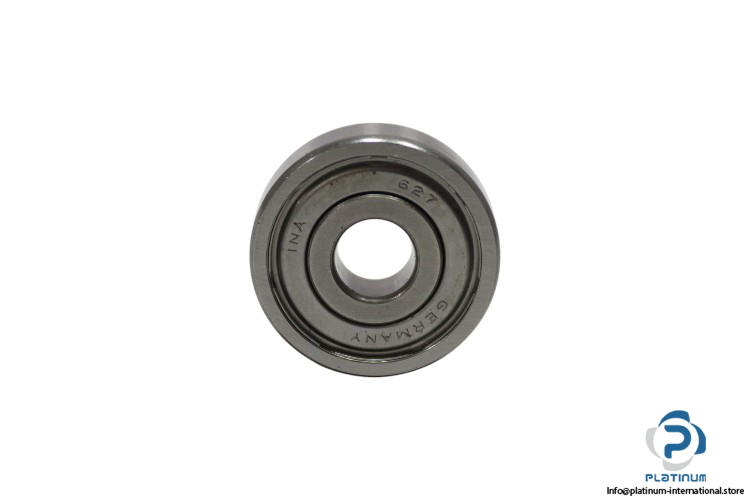

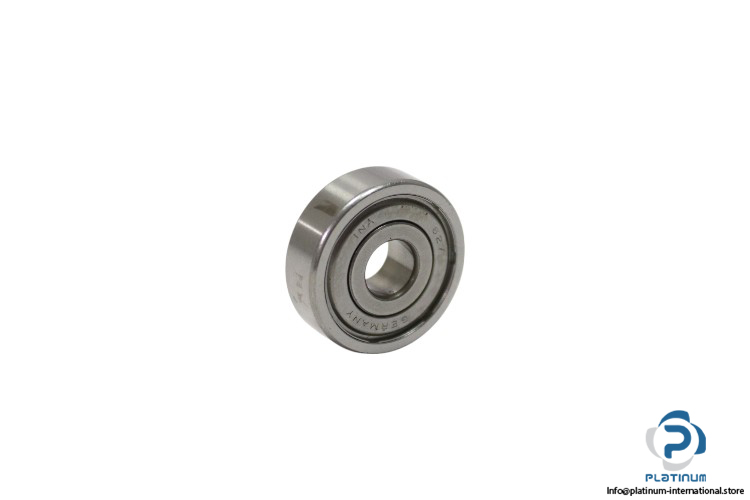

INA 627 2Z Deep Groove Ball Bearing
New
In stock7 unitsReady to ship
Deep Groove Ball Bearing
The INA 627 2Z is a high-speed deep groove ball bearing with 7 mm bore and 22 mm outer diameter. It features 2Z metal shields on both sides and is ideal for compact, precision-driven applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA 627 2Z Deep Groove Ball Bearing
The INA 627 2Z Deep Groove Ball Bearing is a compact, high-speed bearing designed for precision applications. Featuring 2Z shielding on both sides, it provides reliable protection against contaminants and ensures consistent operation under radial loads at high speeds.
Manufacturer: INA
Type: Deep Groove Ball Bearing
Model: 627 2Z
| Bore Diameter (d) | 7 mm |
| Outer Diameter (D) | 22 mm |
| Width (B) | 7 mm |
| Dynamic Load Rating (Cr) | 3,290 N |
| Static Load Rating (C‚r) | 1,360 N |
| Fatigue Load Limit | 85 N |
| Limiting Speed | 40,000 1/min |
| Reference Speed | 28,000 1/min |
| Seal Type | 2Z, Shielded on both sides |
