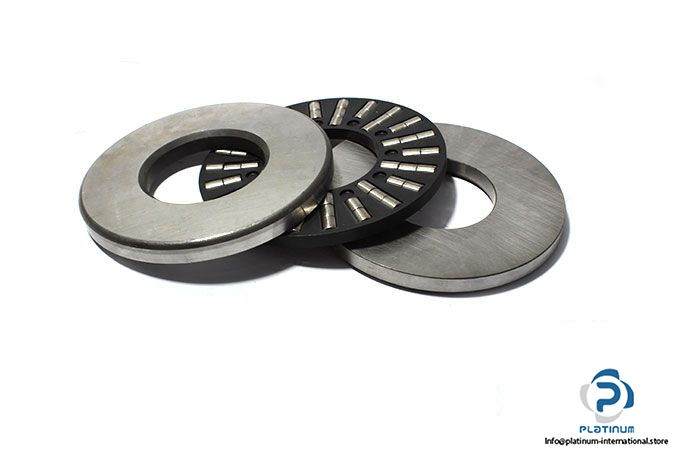

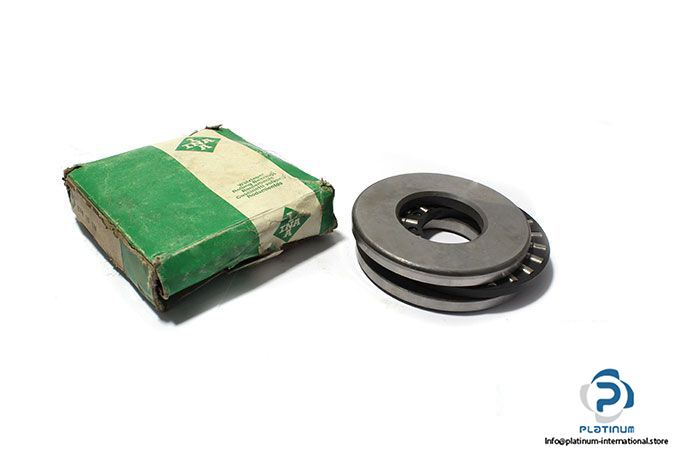

INA 87410 TN Cylindrical Roller Thrust Bearing

Manufacturer: INA

Type: Cylindrical Roller Thrust Bearing

Model: 874 10 TN

Housing washer: GS 87410

Shaft washer: WS 87410

Cage: K 874 10 TN

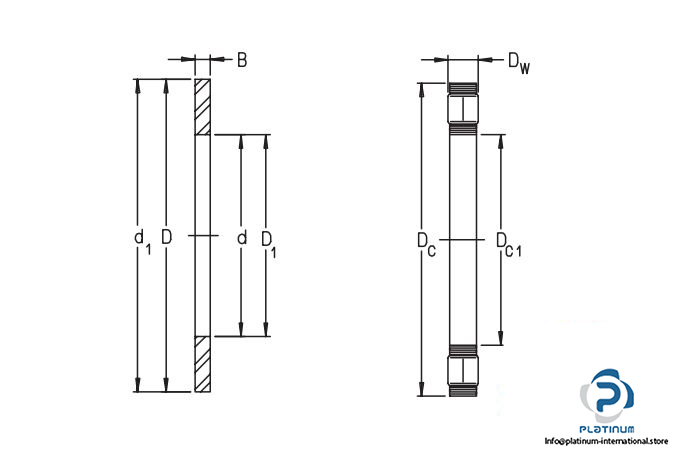

Dimensions:

Bore diameter d: 50 mm

Outer diameter D: 110 mm

Nominal height H: 27 mm

Bore diameter housing washer D₁: 52 mm

Basic load ratings:

Dynamic C: 200 kN

Static C_o: 740 kN

Limiting speed: 3600 rpm

Cage material: Plastic Cage (Polyamid 66 Cage)

Weight: 1.3 kg
