INA AM 50 Precision Locknut
New
In stock1 unitReady to ship
111,11$
Type: Precision locknut AM, segments for clamping
Manufacturer:
Schaeffler INA
Model:
AM50
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Schaeffler INA
Type: Precision locknut AM, segments for clamping
Model: AM50

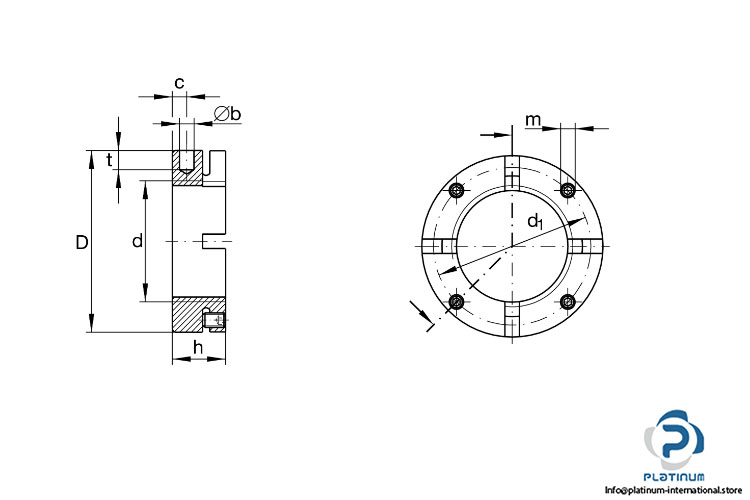

Dimensions:
Thread d: M50X1.5
Pitch circle diameter 1 (holes) d1: 68 mm
Outside diameter D: 75 mm
Height h: 25 mm
Mounting torque set screw: 5 Nm
Breaking load, axial FaB: 450000 N
Breakawag ML: 280 Nm
Mounting torque reference MAL: 85 Nm
