INA FLCTE30-XL Flanged Housing Unit
New
In stock2 unitsReady to ship

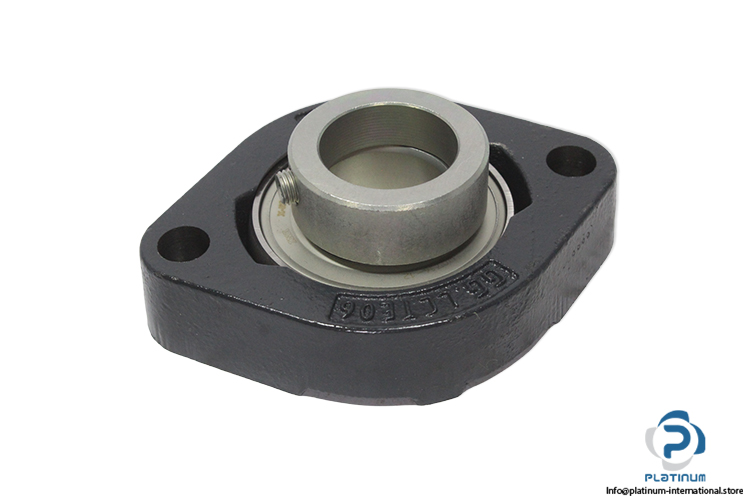

Plummer Block Housing Unit INA Schaeffler FLCTE30-XL plummer block housing unit with a 30 mm bore, for reliable industrial shaft support.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

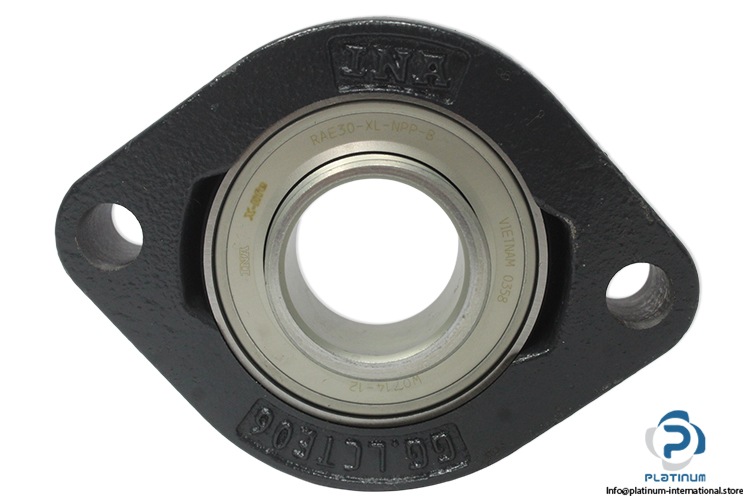

| Bearing No. | RAE30-XL-NPP-B |
| Housing No. | GG.LCTE06-E |
| Bore Diameter (d) | 30 mm |

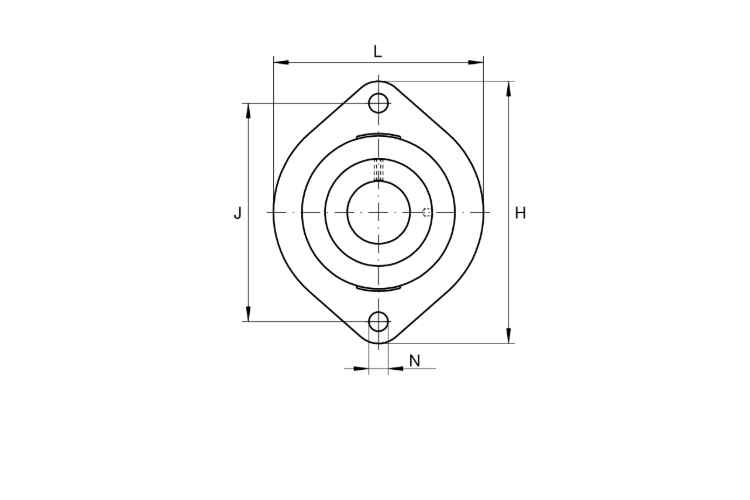

| Flange width, L | 84 mm |
| Height flange, H | 112.5 mm |
| Total height unit, U | 38.1 mm |
| Distance fixing bore, J | 90.5 mm |
| Fixing bore, N | 11.5 mm |
| Width across flats, W | 4 mm |
| Number of screwing holes, n | 2 |
| Basic dynamic load rating, radial, Cr | 20,700 N |
| Basic static load rating, radial, C0r | 11,300 N |
| Fatigue load limit, radial Cur | 480 N |
| Operating temperature min. | -20 °C |
| Operating temperature max | 100 °C |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101218 |
| Weight | 0,80 |
