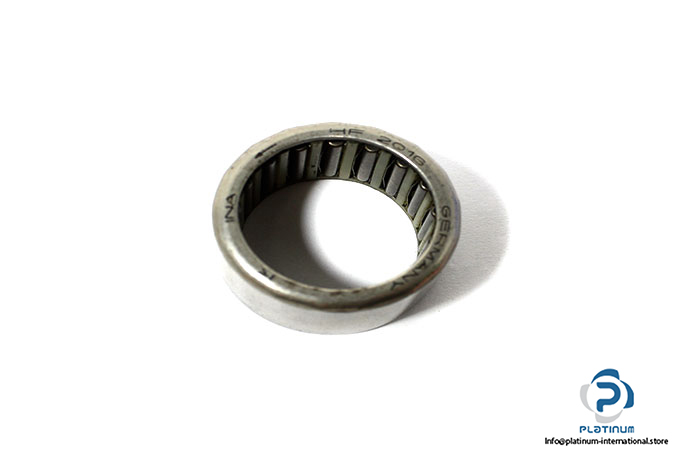

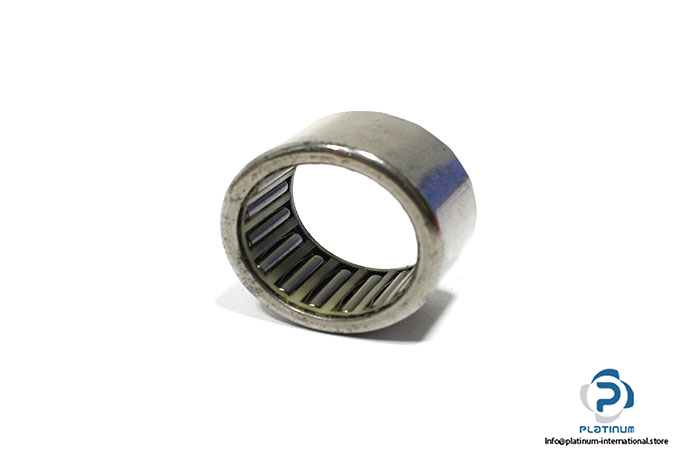

INA HF 2016 Drawn CUP Needle Roller Clutch Bearing

Manufacturer: Schaeffler INA

Type:  Drawn cup roller clutch

Model: HF2016

Dimensions

Diameter under rollers F_w: 20 mm

Outer diameter D: 26 mm

Width outer ring C: 16 mm

Minimum chamfer dimension r_min: 0.3 mm

Permissible torque: 28.5 Nm

Limiting speed for rotating shaft: 7000 rpm

Limiting speed for rotating outer ring: 6500 rpm

Lubricant: L564,Grease

Operating temperature: -10 °C…70 °C
