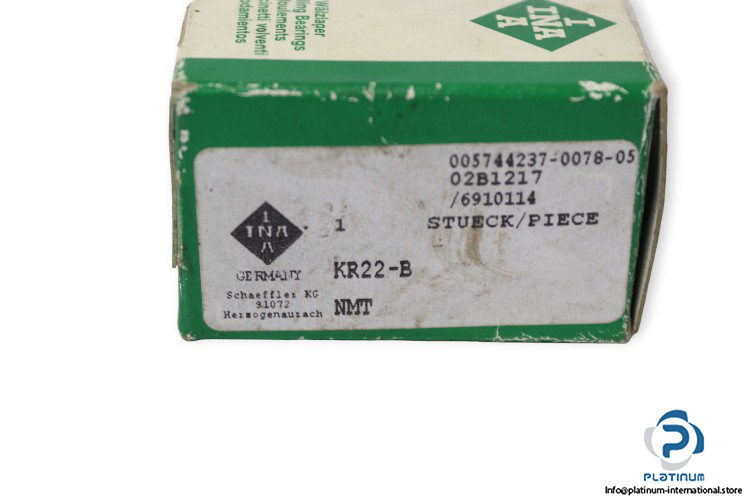

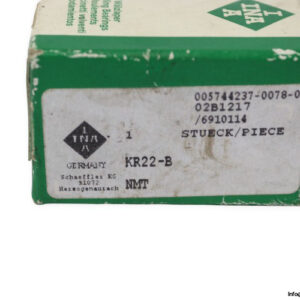

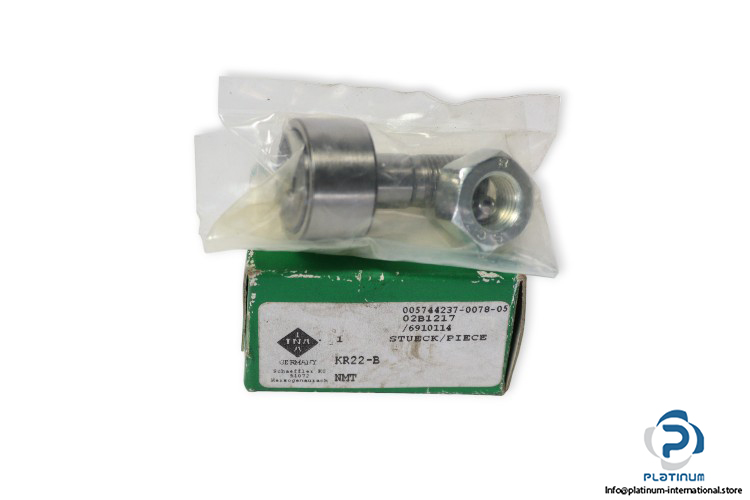

INA KR22-B Stud Type Track Roller

Manufacturer: INA
Type: Yoke type track roller
Model: KR22 B

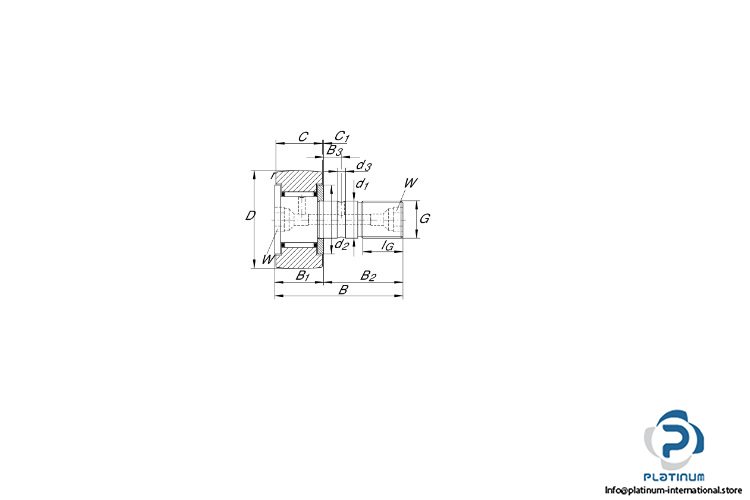

Dimensions
Outside diameter D: 22 mm
Attachment diameter d: 10 mm
Total length B: 36 mm
Width outer ring C: 20 mm
Thread stud G: M18x1.5
Basic load ratings:
Dynamic C: 4500 N
Static C₀: 5400 N
Fatigue load limit: 740 N
Speed on permanent grease lubrication: 8000 rpm
Sealing: Gap-type Seal on both sides
