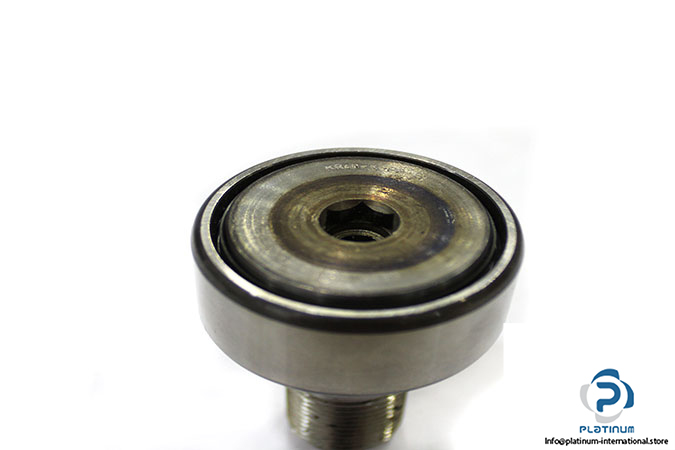

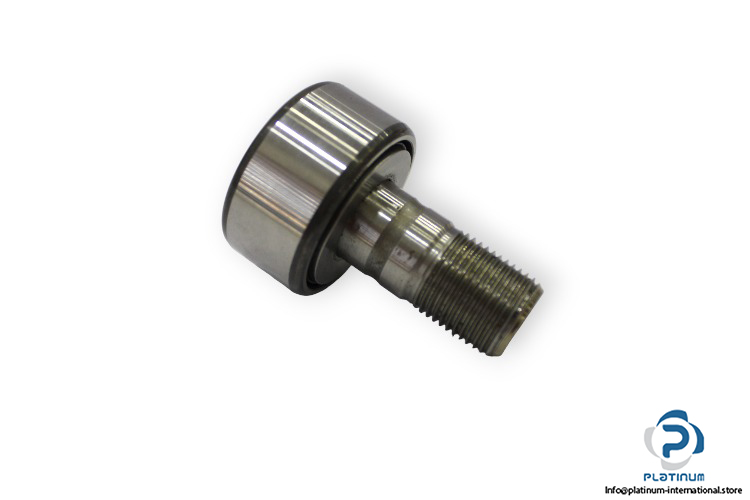

INA KR40-X-PP-A Stud Type Track Roller

Manufacturer: INA
Type: Stud type track roller
Model: KR40 XPPA

Dimensions:
Outside diameter D: 40 mm
Fit diameter of roller stud d₁: 18 mm
Width of the roller stud B: 58 mm
Roller Width B₁: 21.6 mm
Thread G: M18X1.5
Thread length: 19 mm
Basic load ratings, radial:
Dynamic C_{r w}: 10900 N
Static C_{0r w}: 16000 N
Fatigue load limit C_{ur w}: 2130 N
Speed on permanent grease lubrication: 2900 rpm
Sealing: Three-stage sealing by plastic axial plain washer on both sides
