INA KRV16-PP-A Stud Type Track Roller
Used
In stock1 unitReady to ship
Stud Type Track Roller
INA KRV16-PP-A Stud Type Track Roller features a 16 mm outside diameter and M6 thread size. Designed for high radial loads with dynamic load capacity of 4,850 N, it offers excellent sealing and long-lasting performance with permanent grease lubrication.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

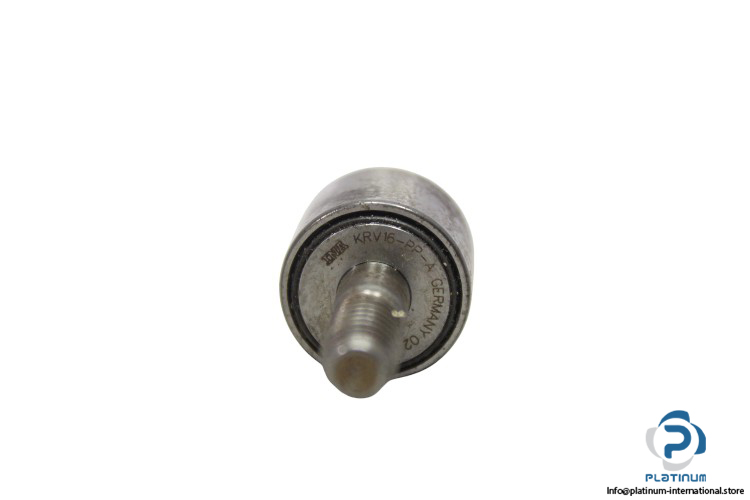

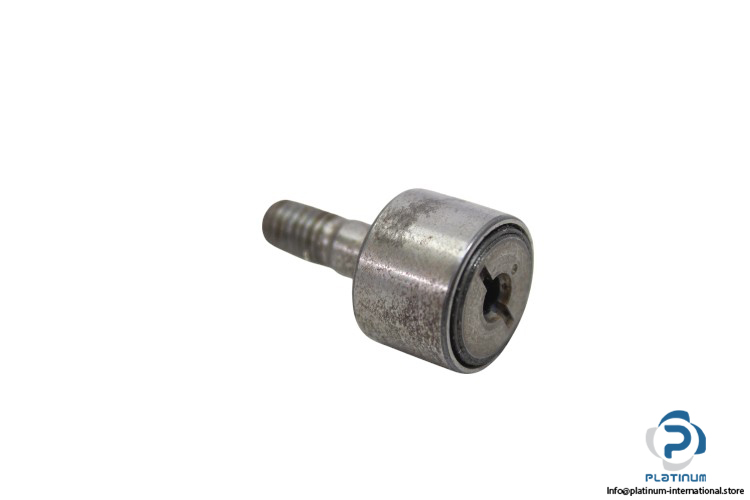

INA KRV16-PP-A Stud Type Track Roller
The INA KRV16-PP-A Stud Type Track Roller is designed to provide smooth and reliable rolling in various mechanical systems. With its dynamic and static load capacities, it performs efficiently under high radial loads, offering excellent durability and sealing properties.
Manufacturer: INA
Type: Stud Type Track Roller
Model: KRV16-PP-A
| Outside Diameter (D) | 16 mm |
| Fit Diameter of Roller Stud (d1) | 6 mm |
| Width | 28 mm |
| Width of Thrust Washer | 12.2 mm |
| Width, Outer Ring | 11 mm |
| Thread G | M6 |
| Thread Length | 8 mm |
| Dynamic Load Capacity (Cr w) | 4,850 N |
| Static Load Capacity (C0r w) | 6,700 N |
| Fatigue Load Limit (Cur w) | 970 N |
| Speed on Permanent Grease Lubrication | 3800 rpm |
| Sealing | PP, Three-stage sealing by plastic axial plain washer on both sides |
