INA KWE35 N G3V2 Linear Recirculating Ball Bearing
Used
Available on request
99,99$
Linear Recirculating Ball Bearing
The INA KWE35-N-G-V2 provides smooth and precise linear motion with high rigidity and load capacity. Designed for 35 mm systems, it features G3 accuracy and V2 preload for demanding automation and CNC applications.AccuracyAutomationBallbearingBlockCNCG3GuideGuidewayInaIndustrialKWE35-N-G-V2LinearMotionPrecisionPreloadRecirculatingV2
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

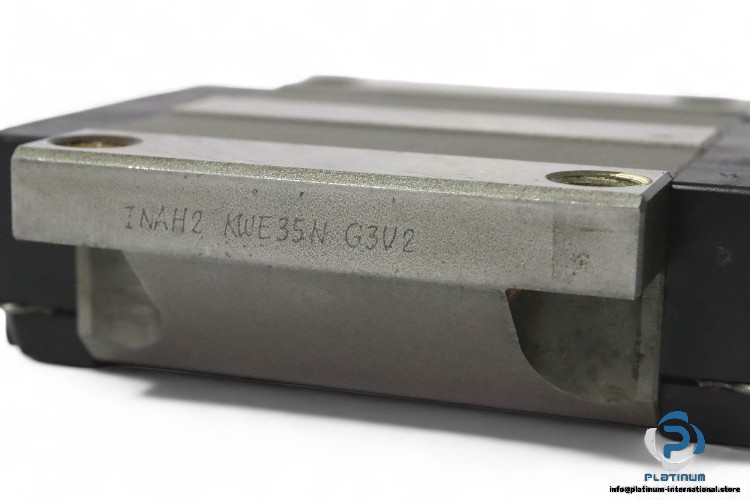

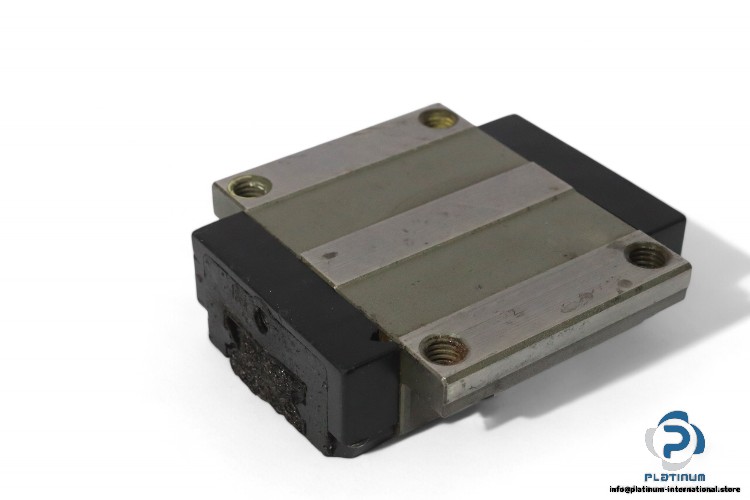

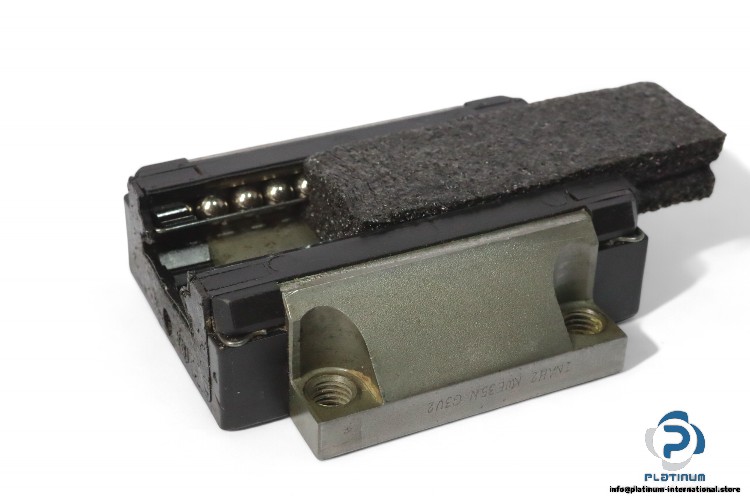

INA KWE35-N-G-V2 Linear Recirculating Ball Bearing
The INA KWE35-N-G-V2 is a high-performance linear recirculating ball bearing designed for smooth, precise, and load-bearing linear motion. Built to support heavy-duty applications, it offers high rigidity, low friction, and exceptional positioning accuracy. Suitable for CNC machinery, automation systems, and precision industrial equipment.
Manufacturer: INA
Type: Linear Recirculating Ball Bearing
Model: KWE35-N-G-V2

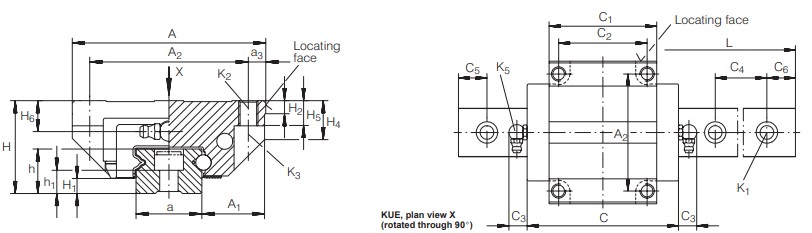

| Size | 35 mm |
| Height System (H) | 48 mm |
| Width Carriage (A) | 100 mm |
| Overall Length Carriage (C) | 106.4 mm |
| Block Height (H-H1) | 40 mm |
| A2 | 82 mm |
| C2 | 62 mm |
| Preload | V2 |
| Accuracy Class | G3 |
| Basic Dynamic Load Rating (C) | 28 kN |
| Basic Static Load Rating (C0) | 37 kN |
| Static Moment Rating About X-Axis (M0x) | 658 Nm |
| Static Moment Rating About Y-Axis (M0y) | 450 Nm |
| Static Moment Rating About Z-Axis (M0z) | 450 Nm |
| Rail Configuration | N, T-Bolt Mounting |
