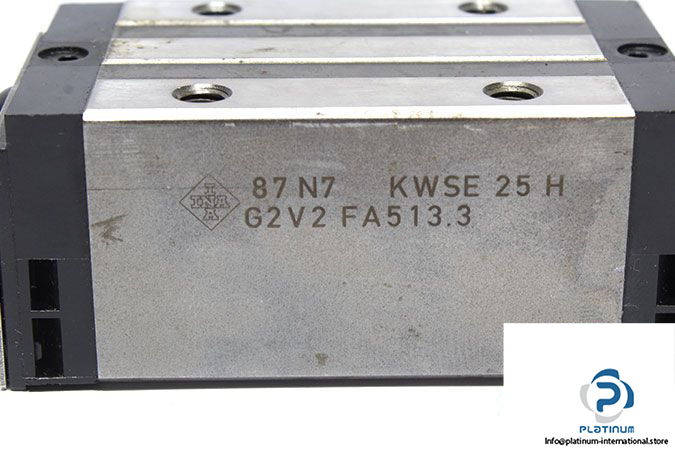

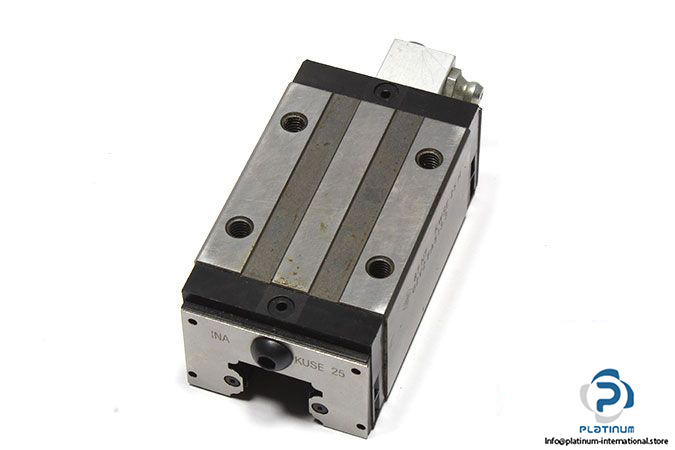

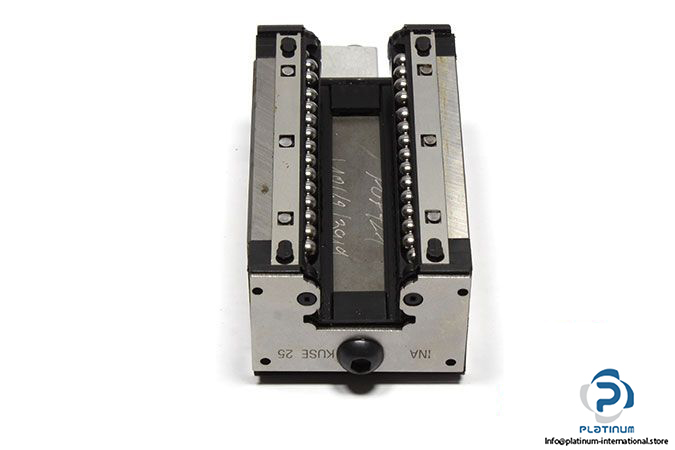

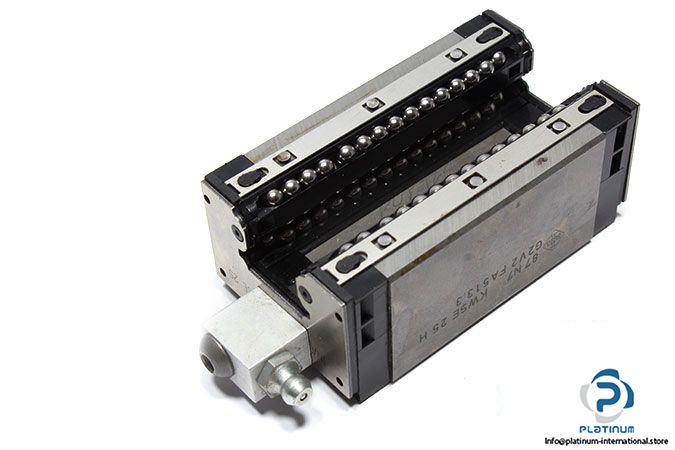

INA Kwse 25 H Recirculating Ball Bearing Carriage

Manufacturer: Schaeffler INA

Type:  Six-Row Linear Recirculating Ball Bearing

Model: KWSE25H-G2-V2

Size: 25

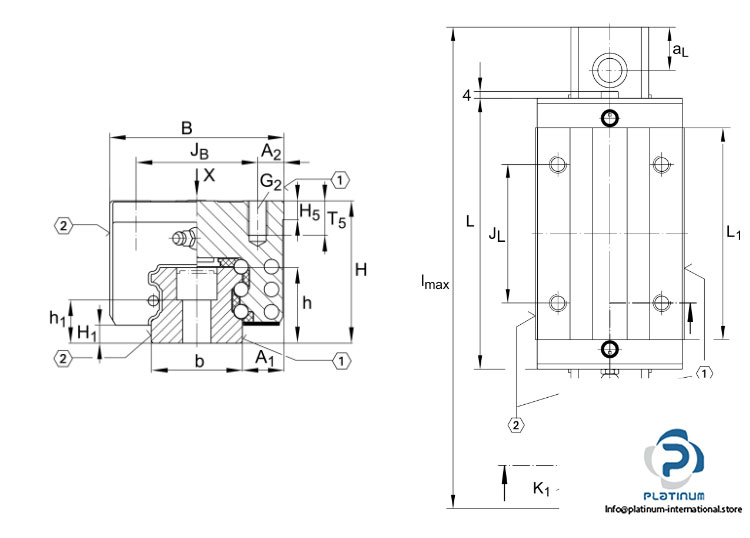

Dimensions

Length ( L ): 81.8 mm

Width ( B ): 48 mm

Height ( H ): 40 mm

Block Height: 34.5 mm

J_B: 35 mm

J_L: 35 mm

Basic Load Ratings (Compressive Load):

Dynamic C: 28000 N

Static C₀: 67000 N

Basic Load Ratings (Tensile Load):

Dynamic C: 26000 N

Static C₀: 45000 N

Basic Load Ratings (Lateral Load):

Dynamic C: 28000 N

Static C₀: 47000 N

Block Type: Square Type

Mounting Hole: 4 tapped holes

Guideway Model: TKSD25(-U)

Accuracy Class: G2

Carriage Preload: V2
