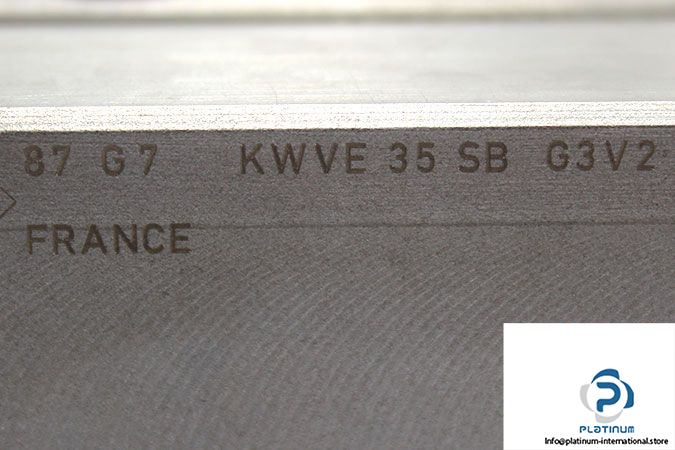

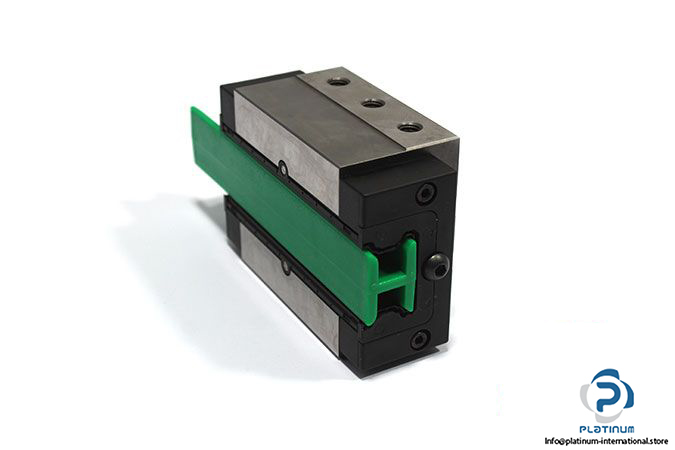

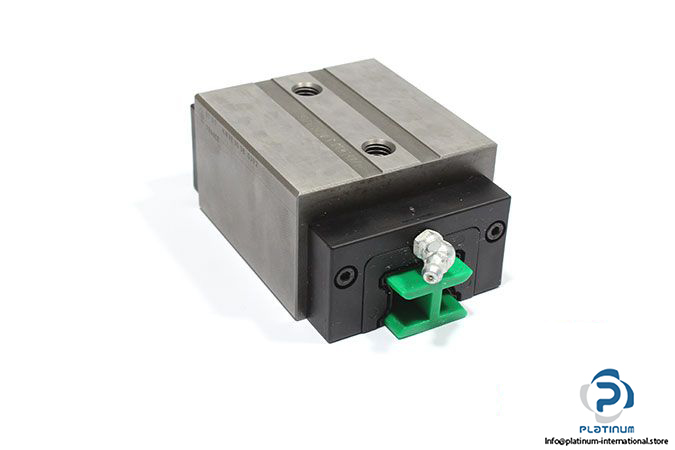

INA Kwve 35 SB G3 V2 Recirculating Ball Bearing Carriage

Manufacturer: Schaeffler INA

Type: Four-row Linear Ball Bearing Carriage

Model: KWVE35-B-SB

Size: 35 mm

Carriage Design: High carriage with lateral threaded fixing holes

Basic Load Ratings:

Dynamic C: 38000 N

Static C₀: 72000 N

Static Moment Rating About:

X axis M_0x: 1465 Nm

Y axis M_0Y: 1020 Nm

Z axis M_0Z: 1020 Nm

Preload: V2

Accuracy Class: G3

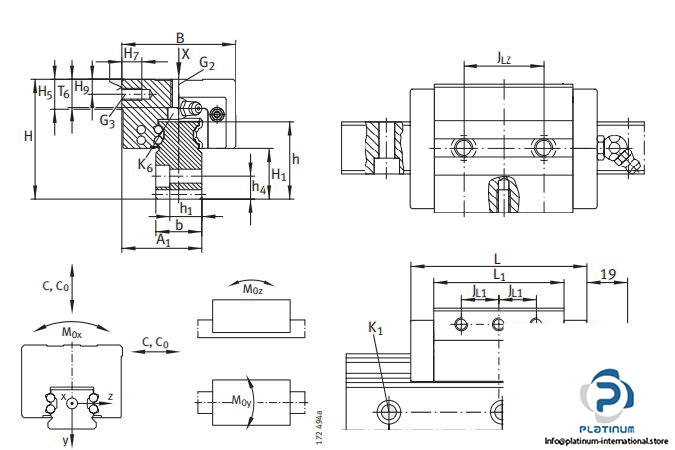

Dimensions

Height carriage H₁: 48.2 mm

Width carriage B: 76 mm

Overall length carriage L: 110.4 mm

J_L1: 25 mm

J_LZ: 50 mm

Weight: 2 kg
