INA KWVE35-B V1-G3 Recirculating Ball Bearing Carriage
New
In stock28 unitsReady to ship
Recirculating Ball Bearing Carriage
INA KWVE35-B V1-G3 Recirculating Ball Bearing Carriage offers a dynamic load rating of 38,000 N and a static load rating of 72,000 N, providing smooth and precise linear motion for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
INA KWVE35-B V1-G3 Recirculating Ball Bearing Carriage
The INA KWVE35-B V1-G3 Recirculating Ball Bearing Carriage is designed to offer smooth linear motion with high load capacities and precise movement, ideal for demanding industrial applications.
Manufacturer: INA
Model: KWVE35-B V1-G3
Type: Recirculating Ball Bearing Carriage
Static Moment Rating About:

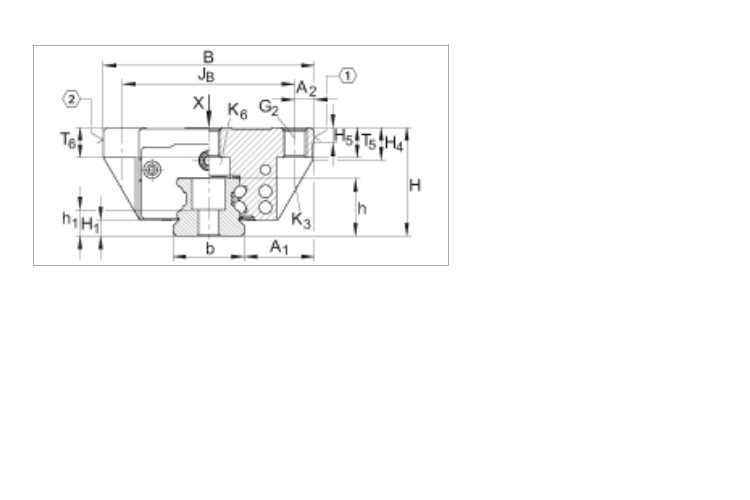

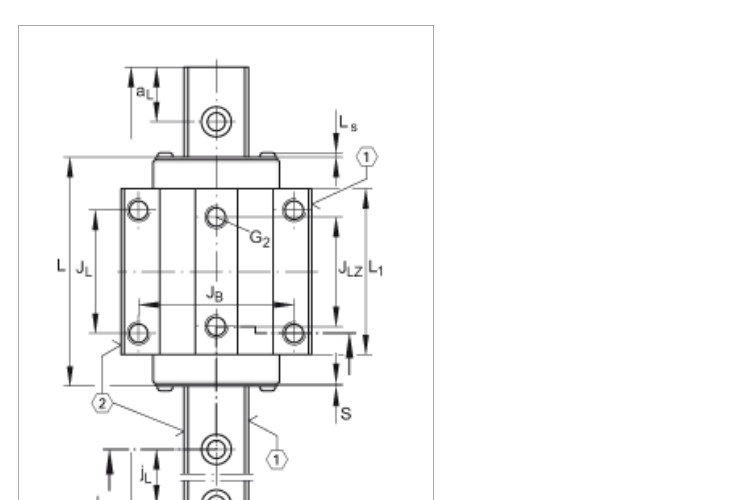

| Total Height (H) | 48 mm |
| Width of Carriage (B) | 100 mm |
| Overall Length of Carriage (L) | 112 mm |
| Height of Block | 41.3 mm |
| JL | 62 mm |
| JB | 82 mm |
| Dynamic Load Rating (C) | 38000 N |
| Static Load Rating (C0) | 72000 N |
| X axis (M0x) | 1465 Nm |
| Y axis (M0Y) | 1020 Nm |
| Z axis (M0Z) | 1020 Nm |
| Preload | V1 |
| Accuracy Class | G3 |
