INA LFR5201-10-2Z Yoke Type Track Roller
New
In stock1 unitReady to ship
Track Roller
INA LFR5201-10-2Z yoke type track roller with 12 mm bore, 35 mm outer diameter, and 2Z gap seals, designed for linear guidance and cam follower applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

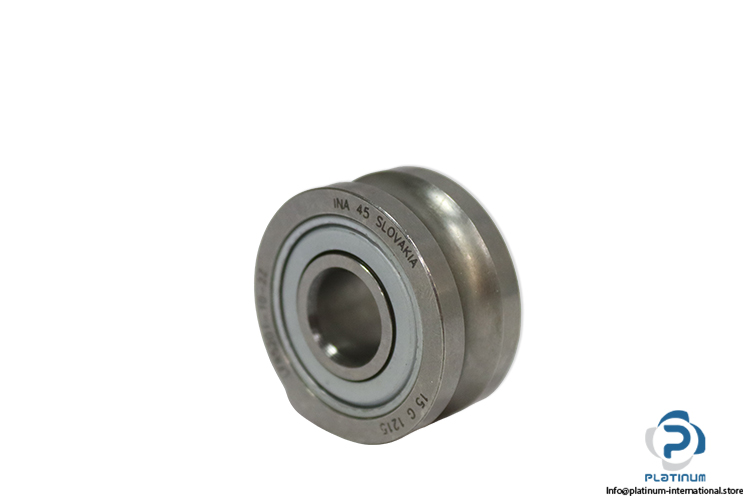

INA LFR5201-10-2Z Yoke Type Track Roller
The INA LFR5201-10-2Z is a precision yoke type track roller designed for reliable guidance and load transmission in linear motion and cam follower applications. Manufactured by Schaeffler, this track roller offers high load capacity, stable running characteristics, and long service life.

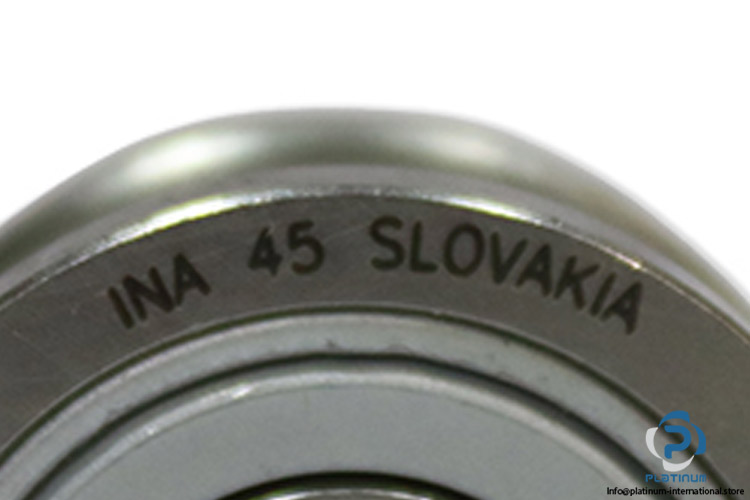

Manufacturer: INA / Schaeffler
Type: Yoke Type Track Roller

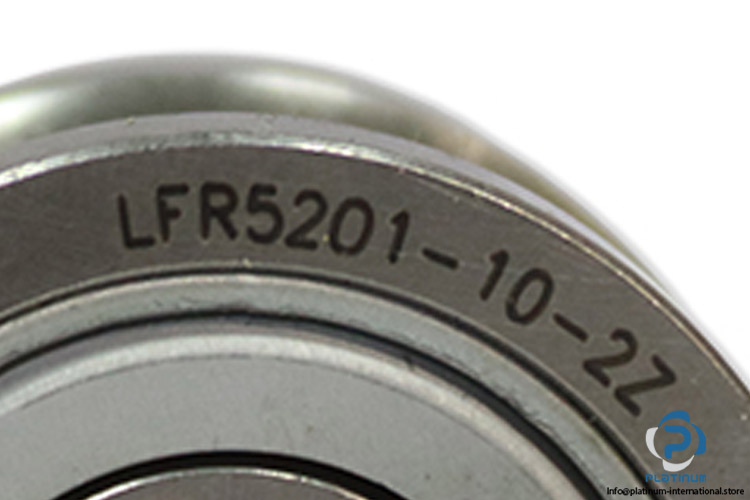

Model: LFR5201-10-2Z
| Bore Diameter (d) | 12 mm |
| Outer Diameter (D) | 35 mm |
| Width, Inner Ring (B) | 15.9 mm |
| Width, Outer Ring (C) | 15.9 mm |
| Diameter of Rolling Element (Da) | 32.25 mm |
| Effective Dynamic Load Rating (Crw) | 8,400 N |
| Effective Static Load Rating (C0rw) | 5,000 N |
| Fatigue Load Limit (Curw) | 250 N |
| Permissible Dynamic Limit Load (Frper) | 4,750 N |
| Permissible Static Limit Load (F0rper) | 10,000 N |
| Seal Type | 2Z, Gap Seal On Both Sides |
