INA LR 209 NPP Track Roller

Manufacturer: Schaeffler INA

Type: Track Roller

Model: LR209NPP

Successor: LR209-X-2RS

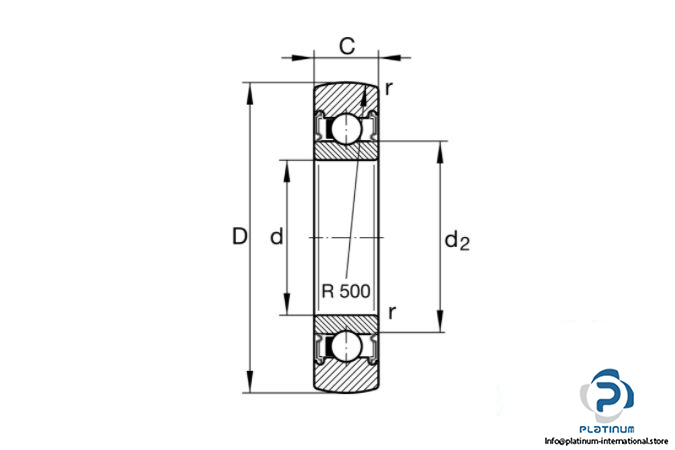

Dimensions:

Bore Diameter d: 45 mm

Outer diameter D: 90 mm

Width B: 19 mm

Basic load ratings:

Dynamic C_r: 23,700 N

Static C_0r: 14,100 N

Fatigue load limit C_{ur w}: 750 N

Speed on permanent grease lubrication: 3600 rpm

Weight: 0.49 kg
