INA NKX 30 Z Combined Needle Roller/Axial Ball Bearing
New
In stock1 unitReady to ship
Combined Needle Roller / Axial Ball Bearing
INA NKX 30 Z combined bearing with 30 mm bore, sealed design, and high radial and axial load capacity for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

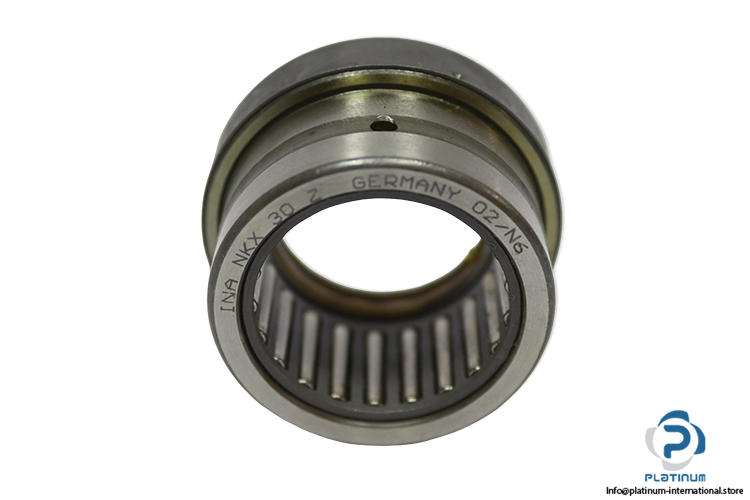

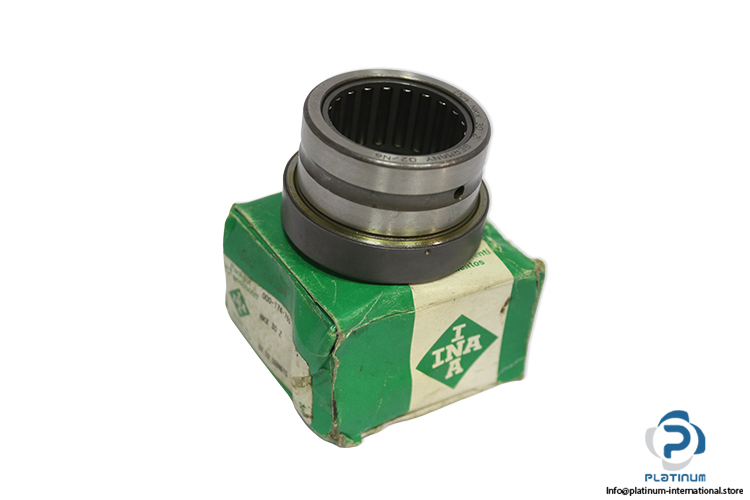

INA NKX 30 Z Combined Needle Roller / Axial Ball Bearing
The INA NKX 30 Z is a combined needle roller and axial ball bearing designed to support radial and axial loads simultaneously. Manufactured by Schaeffler, this bearing offers compact design, high load capacity, and reliable performance in demanding industrial applications.
Manufacturer: INA / Schaeffler
Type: Combined Needle Roller / Axial Ball Bearing
Model: NKX 30 Z
Replaces: NKX30-Z-XL
| Bore Diameter (Fw) | 30 mm |
| Outer Diameter (D) | 42 mm |
| Height (C) | 30 mm |
| Basic Dynamic Load Rating, Radial (Cr) | 25,500 N |
| Basic Static Load Rating, Radial (C0r) | 36,000 N |
| Fatigue Load Limit, Radial (Cur) | 6,400 N |
| Basic Dynamic Load Rating, Axial (Ca) | 20,400 N |
| Basic Static Load Rating, Axial (C0a) | 42,000 N |
| Fatigue Load Limit, Axial (Cua) | 2,090 N |
| Limiting Speed | 5,000 1/min |
| Sealing | Z, Bearing with End Cap |
| Operating Temperature Range | -30 to 120 °C |
