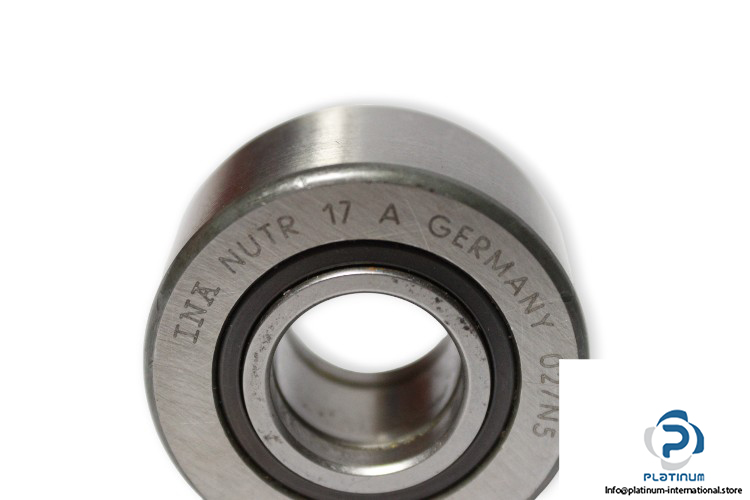

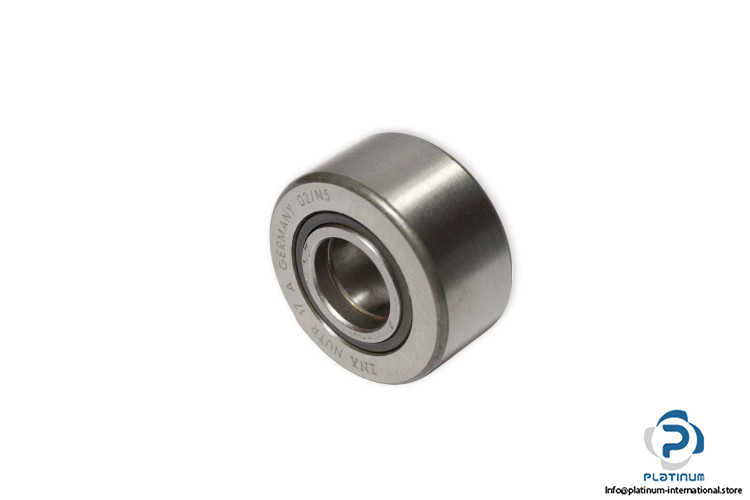

INA Nutr 17 A Yoke Type Track Roller

Manufacturer: INA
Type: Yoke type track rollers NUTR
Model: NUTR17-A

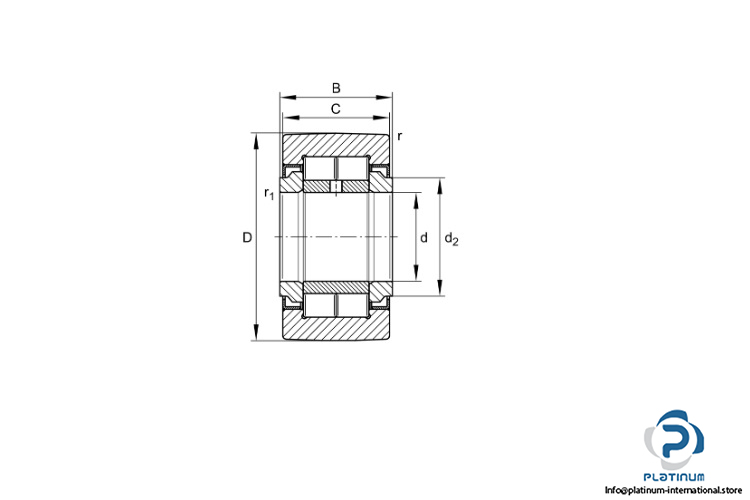

Dimensions:
Bore diameter d: 17 mm
Outside diameter D: 40 mm
Width, inner ring B: 21 mm
Basic load ratings, radial:
Dynamic C_{r w}: 19100 N
Static C_{0r w}: 24800 N
Fatigue load limit, radial: 3250 N
Speed on permanent grease lubrication: 5500 rpm
Permissible static load, radial: 24800 N
Permissible dynamic load outer ring, radial: 12900 N
Sealing: Labyrinth seals on both sides
