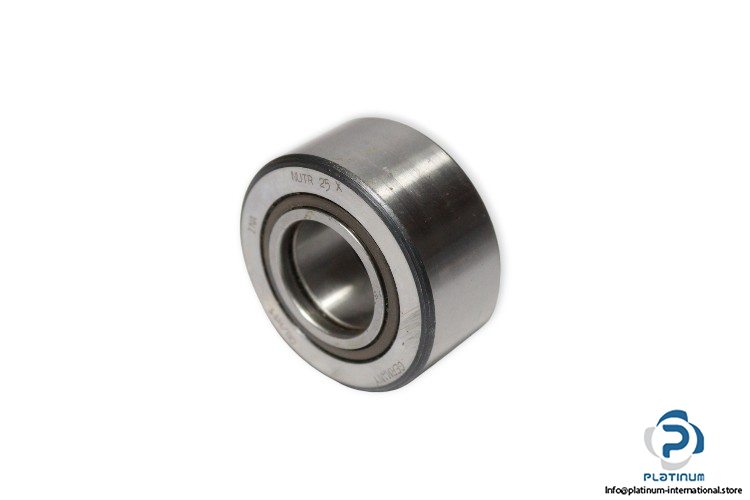

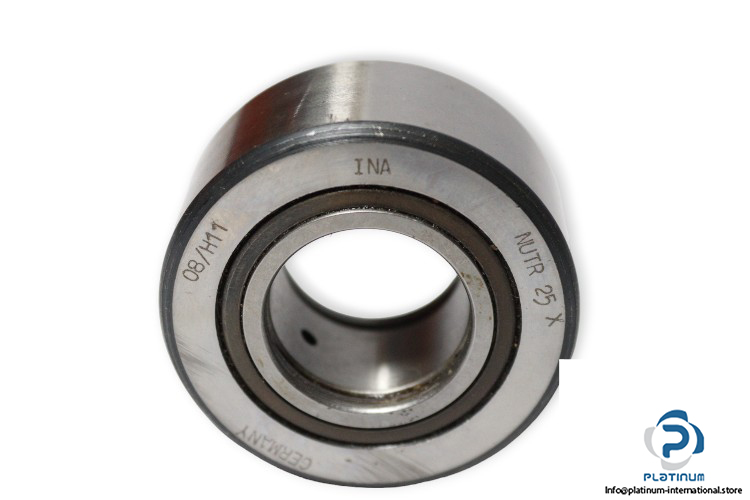

INA Nutr 25 X Yoke Type Track Roller

Manufacturer: INA
Type: Yoke type track rollers NUTR
Model: NUTR25 X

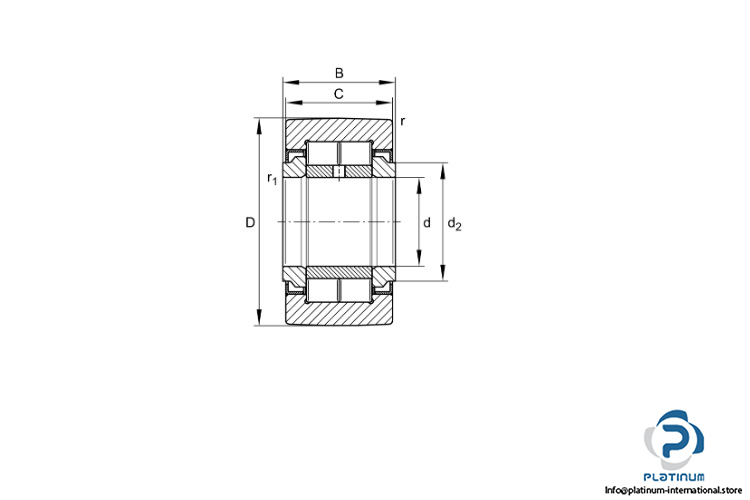

Dimensions:
Bore diameter d: 25 mm
Outside diameter D: 52 mm
Width, inner ring B: 25 mm
Basic load ratings, radial:
Dynamic C_{r w}: 29000 N
Static C_{0r w}: 41500 N
Fatigue load limit, radial: 5400 N
Speed on permanent grease lubrication: 4200 rpm
Permissible static load, radial: 34000 N
Permissible dynamic load outer ring, radial: 17100 N
Sealing: Labyrinth seals on both sides
