INA RCJT20-N Flanged Housing Unit

Manufacturer: INA
Type: Flanged Housing Unit
Model: RCJT20-N
Replaces: RCJT20-XL-N
Housing: CJT04
Bearing designation: GE20-XL-KRR-B

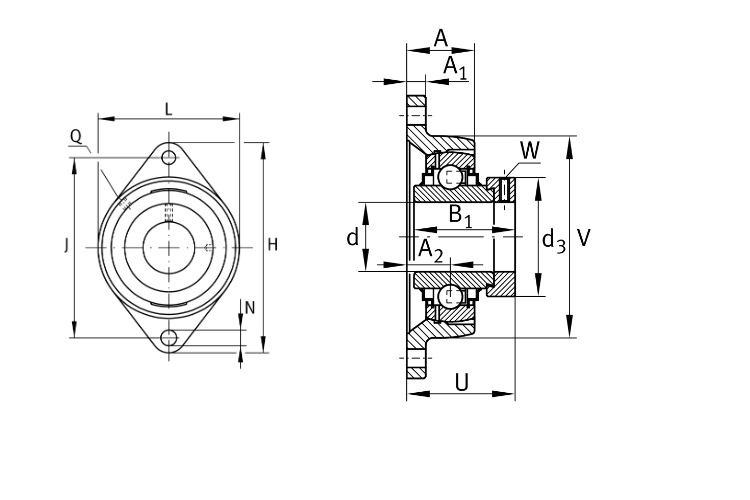

Bore Diameter d: 20 mm
Flange width L: 61 mm
Height flange H: 112 mm
Total height unit U: 45.6 mm
Distance fixing bore J: 90 mm
Fixing bore N: 11.5 mm
Basic dynamic load rating: 13600 N
Basic static load rating: 6600 N
Fatigue load limit: 345 N
Temperature range: -20 °C…120°C
Groove: N, Cast iron housing with undercut slot for end caps
Material: GG, Grey cast iron
Locking device: eccentric locking collar
