INA RNA-NA 2204.2RS A Yoke Type Track Roller
New
In stock5 unitsReady to ship
Yoke Type Track Roller
INA RNA-NA 2204.2RS A track roller with 2RSR sealing, high radial load capacity, and R500 outer ring profile for industrial cam and guide applications. Ideal for conveyor systems, cam drives, and precision guide rails.2204.2RS2RSRabearingCamConveyorDutyFollowerGuideHeavyInaIndustrialLoadradialRna/NaRollerSealedtrackTypeYoke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

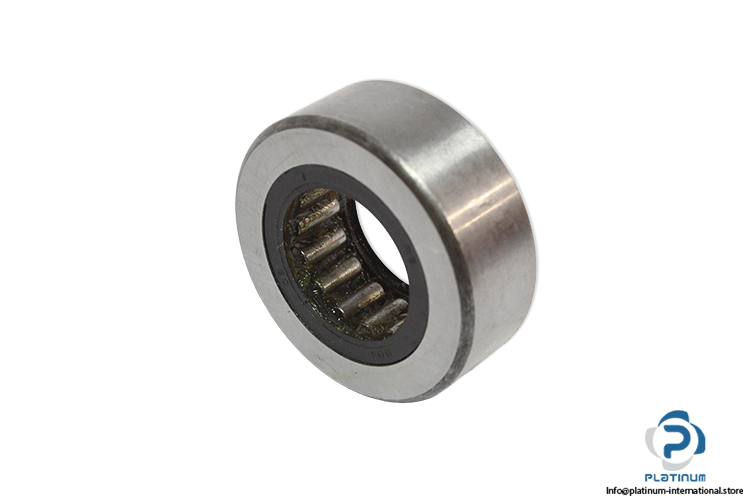

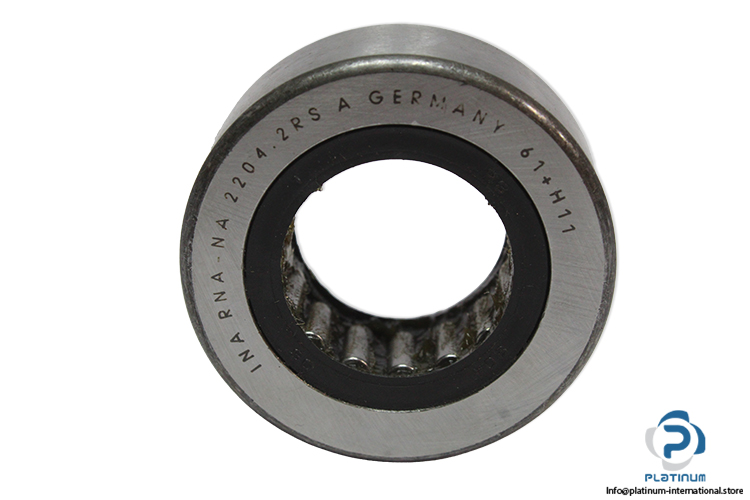

INA RNA-NA 2204.2RS A Yoke Type Track Roller
The INA RNA-NA 2204.2RS A yoke type track roller is designed for high radial load capacity and reliable rolling motion in cam drives, guide rails, and track systems.
Manufacturer: INA
Type: Yoke Type Track Roller
Model: RNA-NA 2204.2RS A
Recommended for cam followers, conveyor tracks, linear guide systems, and heavy-duty track applications requiring high radial load performance.
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter (d) | 20 mm |
| Outer Diameter (D) | 47 mm |
| Width of Bearing (B) | 18 mm |
| Width, Outer Ring (C) | 17.8 mm |
| Basic Dynamic Load Rating (Cr) | 14000 N |
| Basic Static Load Rating (C0r) | 18600 N |
| Fatigue Load Limit, Radial | 2700 N |
| Speed on Permanent Grease Lubrication | 2300 rpm |
| Sealing | 2RSR, Lip Seal on Both Sides |
| Relubrication Feature | Via Inner Ring Lubrication Hole |
| Outer Ring Profile | R500 |
