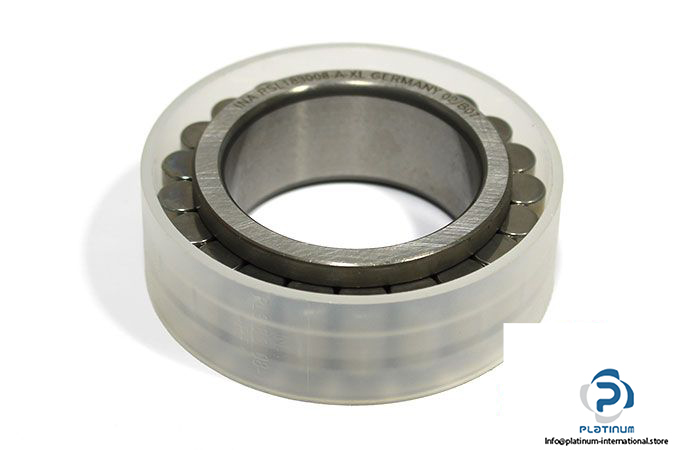

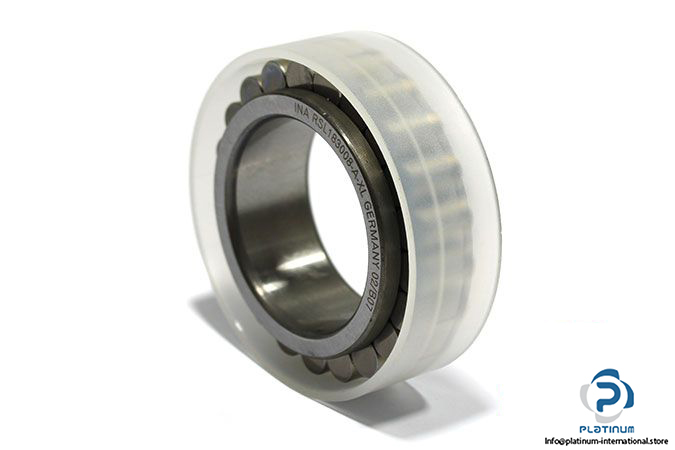

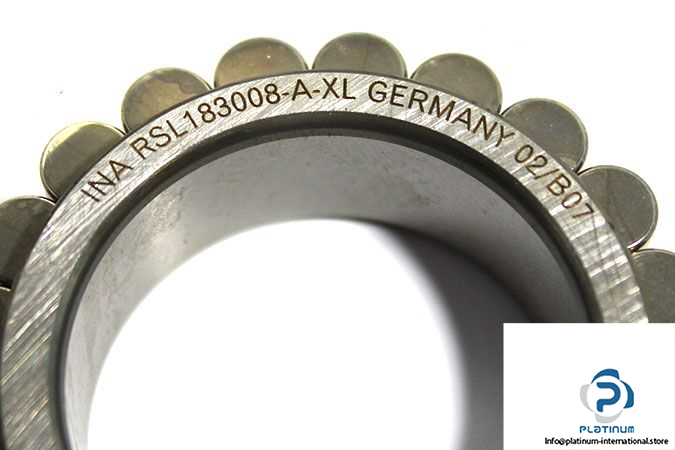

INA RSL183008-A-XL Cylindrical Roller Bearing

Manufacturer: Schaeffler INA

Type: Cylindrical Roller Bearing Full complement

Model: RSL183008 A XL

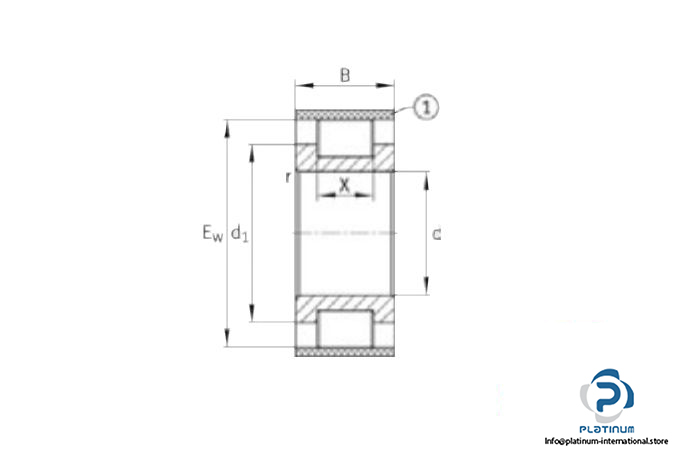

Dimensions:

Bore Diameter d: 40 mm

Outer diameter E_w: 61.74 mm

Width B: 21 mm

Minimum chamfer dimension r_min: 1 mm

Basic load ratings:

Dynamic C_r: 66000 N

Static C_0r: 68000 N

Cage design: Full complement of rollers (no cage)

Weight: 0.2 kg
