INA RSRA16-129-L0 Belt Tension Pulley
New
In stock1 unitReady to ship

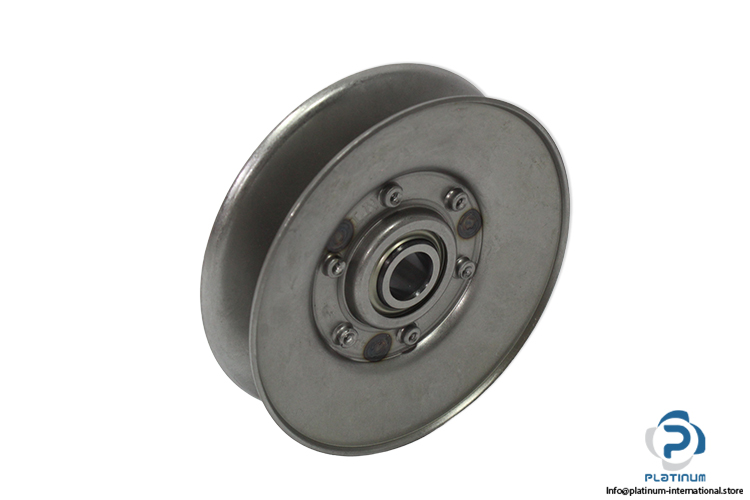

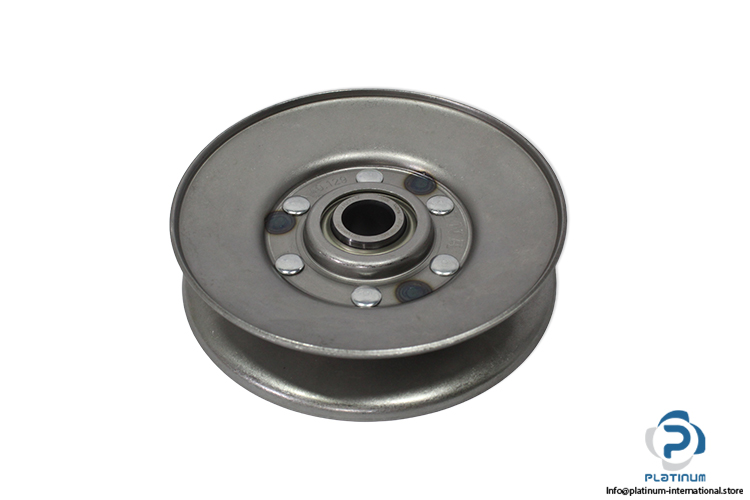

Belt Tension Pulley The INA Schaeffler RSRA16-129-L0 is an industrial belt tension pulley with a 16 mm bore and 129 mm outside diameter, suitable for V-belt sizes 13, 17, 20 and 22.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

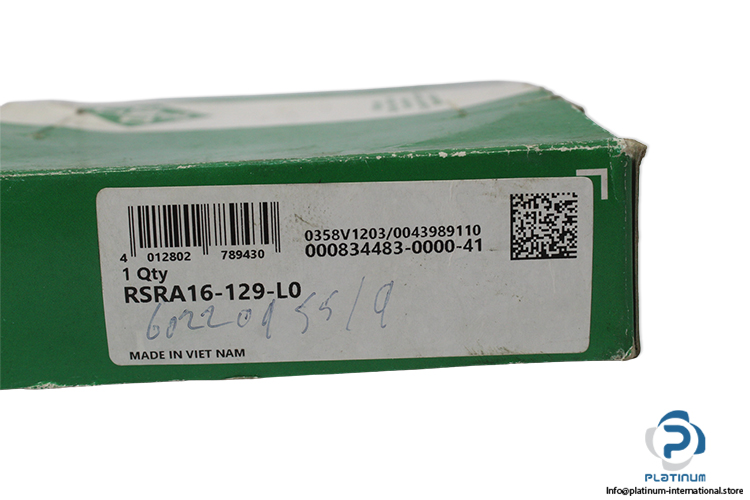

| Code | 0358V1203/0043989110/000834483-0000-41 |
| Bore diameter d | 16 mm |
| Upper tolerance | 0,26 mm |
| Lower tolerance | 0,13 mm |
| Outside diameter idler pulley | 129 mm |
| Width | 18,3 mm |
| Width idler pulley raceway | 22,1 mm |
| Raceway diameter idler pulley | 73,7 mm |
| Width idler pulley | 32 mm |
| Basic dynamic load rating, radial | 9.800 N |
| Basic static load rating, radial | 4.750 N |
| Fatigue load limit, radial | 219 N |
| Angle idler pulley raceway | 32 ° |
| Vee belt size | 13, 17, 20, 22 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101195 |
| Weight | 0,55 |
