INA RUS 19069 GR 3 Linear Recirculating Roller Bearing Unit
Used
In stock1 unitReady to ship
Linear Roller Bearing Unit
INA RUS19069GR3 linear recirculating roller bearing unit with high load capacity and precise guidance for industrial linear motion systems.bearingComponentGuideHighInaIndustrialLinearLoadMotionPrecisionRecirculatingRollerRUS19069GR3SchaefflerUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

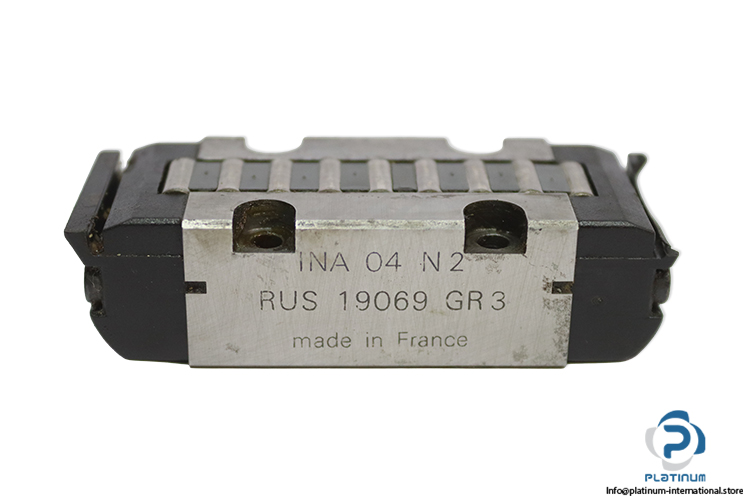

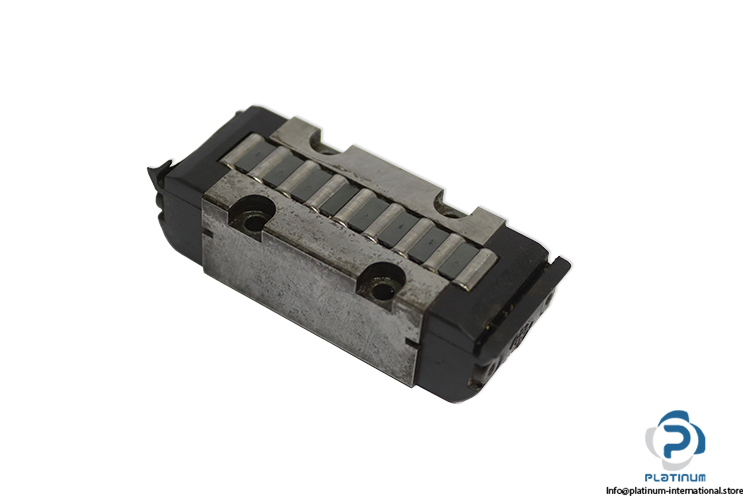

INA RUS19069GR3 Linear Recirculating Roller Bearing Unit
The INA RUS19069GR3 is a precision linear recirculating roller bearing unit designed for high load capacity and accurate linear motion in industrial guidance systems. It is engineered for rigidity, durability, and reliable performance in demanding applications.
Manufacturer: INA / Schaeffler
Type: Linear Recirculating Roller Bearing Unit
Model: RUS19069GR3
Compatible With:
Adjustment Gib: VUS19069-A
Guide Rail: UG6628, UGN6628, UZ6628, UZN6628, UFK3210, UFB4710

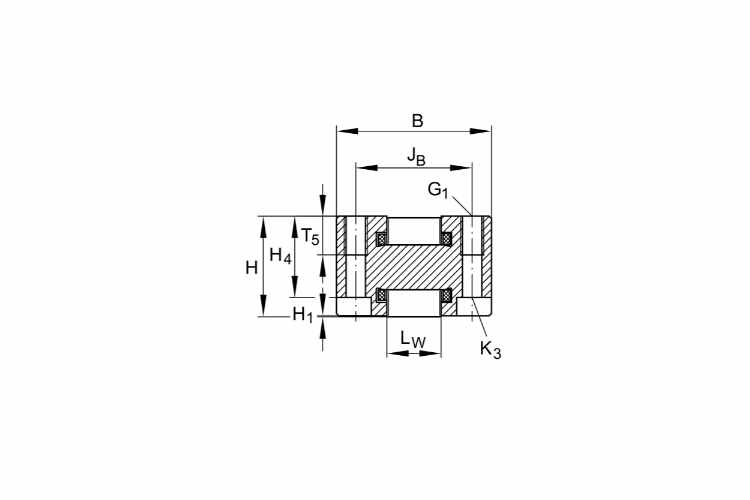

| Total Length (Ltot) | 74 mm |
| Length (L) | 70.4 mm |
| Width (B) | 27 mm |
| Height (H) | 19 mm |
| Mounting Dimension (L1) | 43.8 mm |
| Mounting Dimension (JB) | 20.6 mm |
| Fixing Screws Top (G1) | M4 |
| Fixing Screws Below (K3) | M3 |
| T5 | 6.2 mm |
| LW | 10 mm |
| H4 | 15.2 mm |
| Basic Dynamic Load Rating (C) | 42,000 N |
| Basic Static Load Rating (C0) | 66,000 N |
