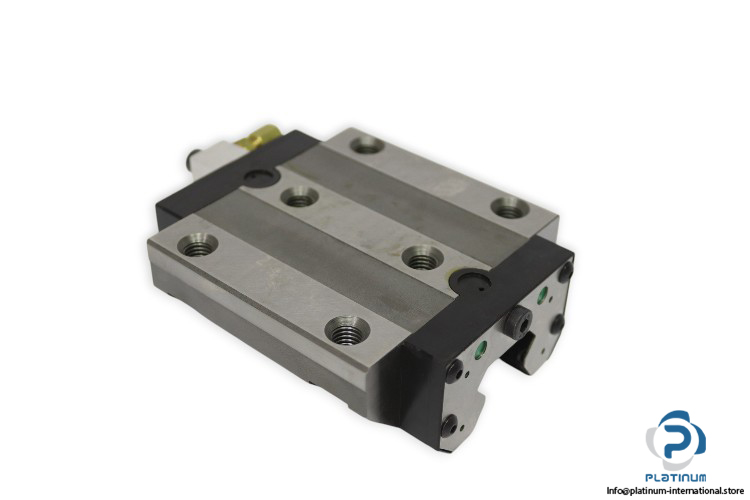

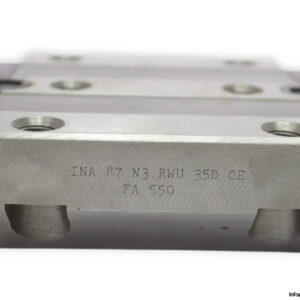

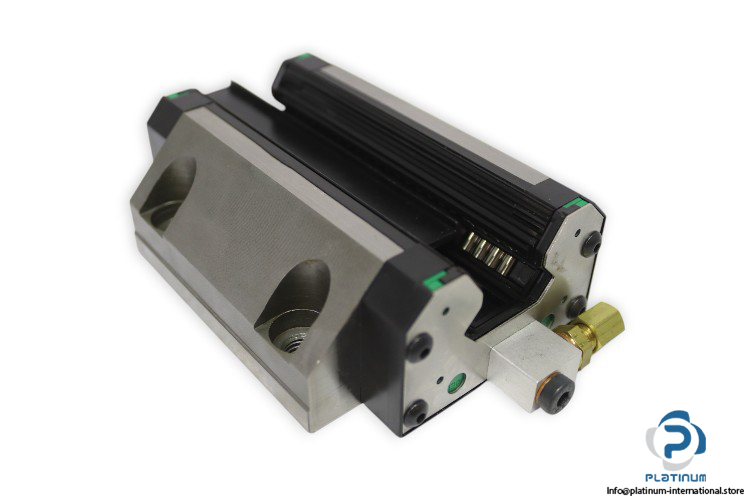

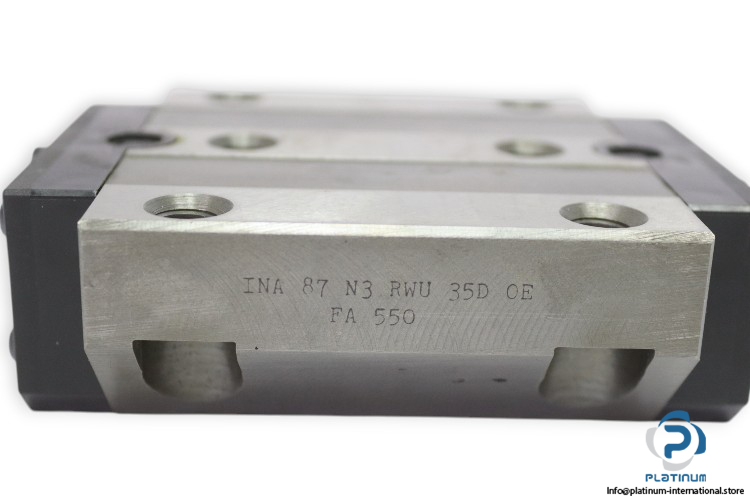

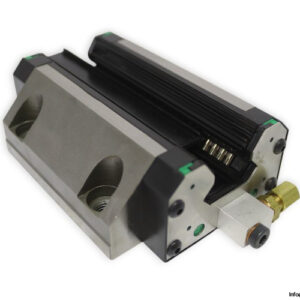

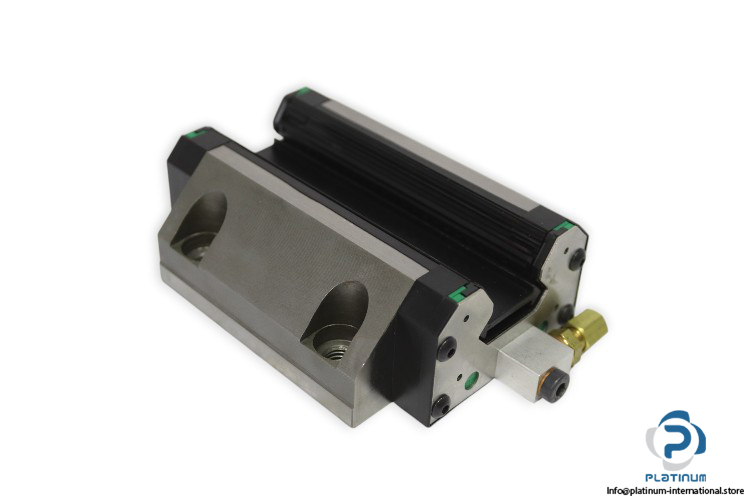

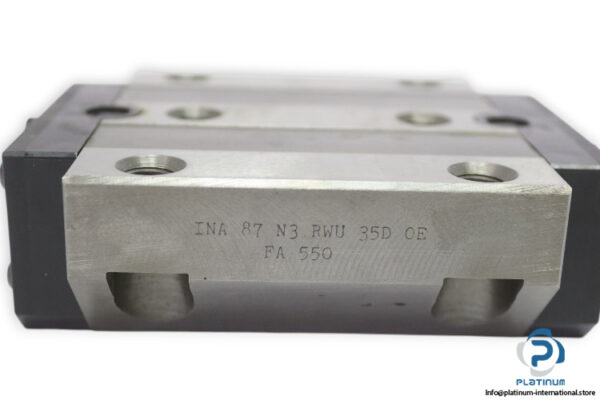

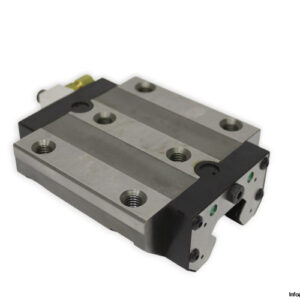

INA RWU 35 D OE FA550 Recirculating Roller Bearing Carriage
The INA RWU 35 D OE FA550 is a high-performance recirculating roller bearing carriage designed for precision linear guidance. With flange-type block design, oil lubrication, and strong load ratings, it ensures rigidity and reliability for demanding industrial applications. Compatible rails (TSX 35 D) are also available.
Manufacturer: INA
Type: Recirculating Roller Bearing Carriage
Model: RWU 35 D OE FA550
Rail: TSX 35 D
Size: 35
Static Moment Rating
Additional Information

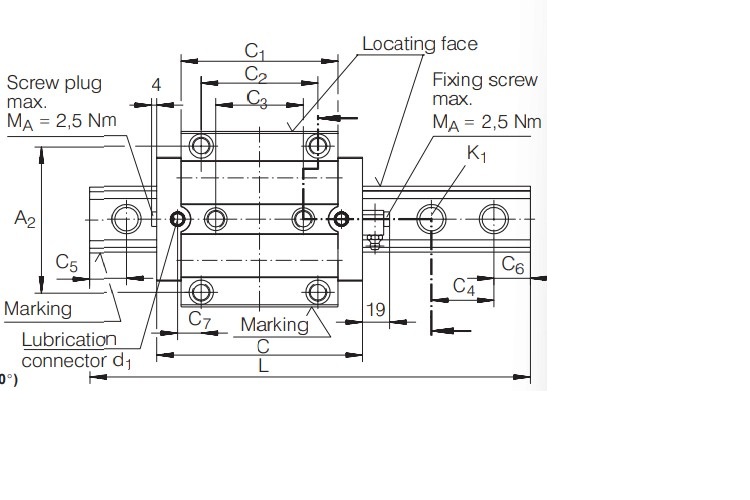

| Height System H | 48 mm |
| Width Carriage A | 100 mm |
| Overall Length Carriage C | 120 mm |
| Block Height | 41.5 mm |
| C2 | 62 mm |
| A2 | 82 mm |
| Basic Dynamic Load Rating | 59,000 N |
| Basic Static Load Rating | 134,000 N |
| Block Type | Flange Type |
| X Axis M0x | 990 Nm |
| Y Axis M0y | 2140 Nm |
| Z Axis M0z | 1925 Nm |
| Lubrication Suffix | OE, Oil |
| Note | We also provide the corresponding rails (guideways) in a wide range of lengths - please ask us if you need rails to match your bearing |
