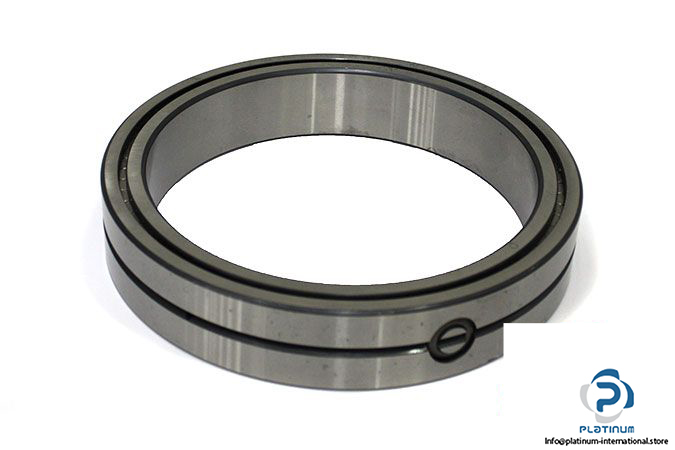

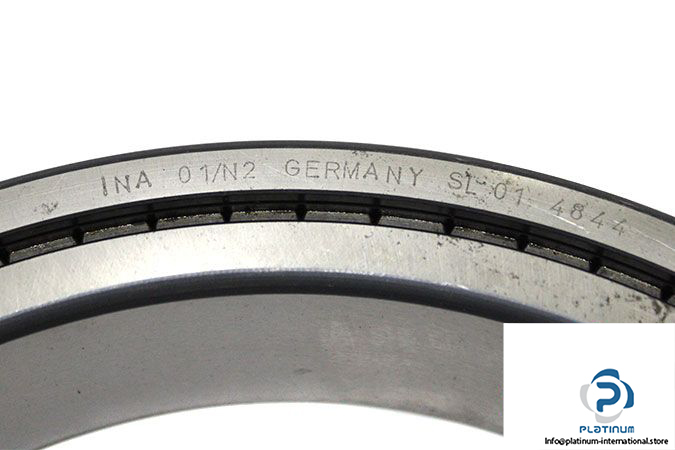

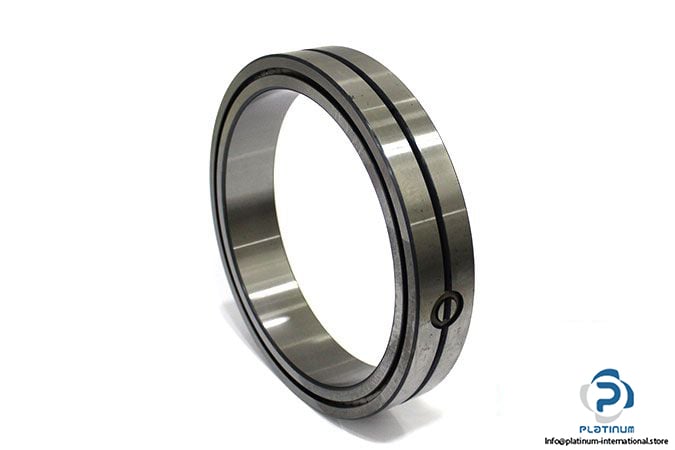

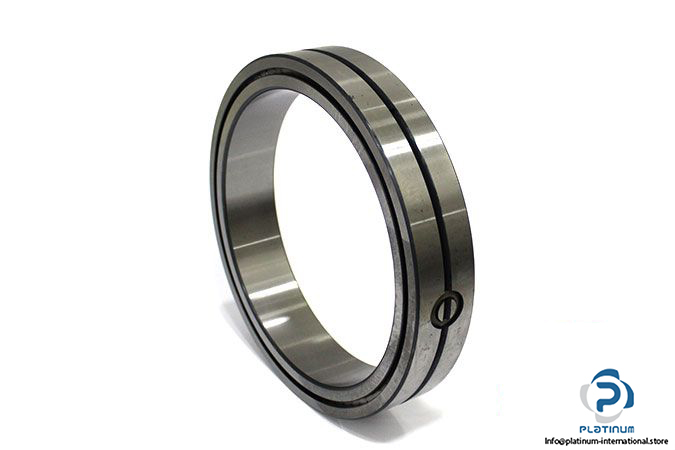

INA SL01 4844 Cylindrical Roller Bearing

Manufacturer: Schaeffler INA

Type: Cylindrical Roller Bearing, locating bearing, double row

Model: SL014844

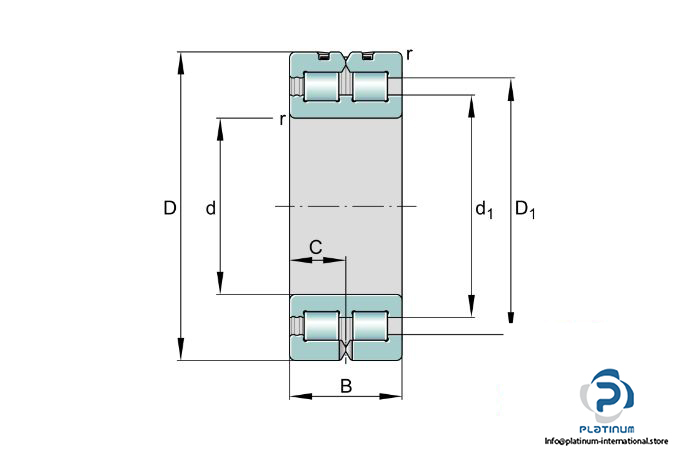

Dimensions:

Bore Diameter d: 200 mm

Outer diameter D: 270 mm

Width B: 50 mm

Minimum chamfer dimension: 1.5 mm

Basic load ratings:

Dynamic C_r: 335000 N

Static C_0r: 840000 N

Fatigue load rating: 92000 N

Limiting speed: 1290 rpm

Reference speed: 850 rpm

Cage design: Full complement of rollers (no cage)

Operating temperature: -30 … +120 °C

Weight: 6 kg
