INA VU-200220 Slewing Ring Four Point Contact Bearing
New
In stock1 unitReady to ship
Cross Roller Bearing
INA VU200220 cross roller bearing designed for high rigidity and accurate motion, supporting combined axial and radial loads in precision applications. Ideal for rotary tables, robotics, and machine tool assemblies.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

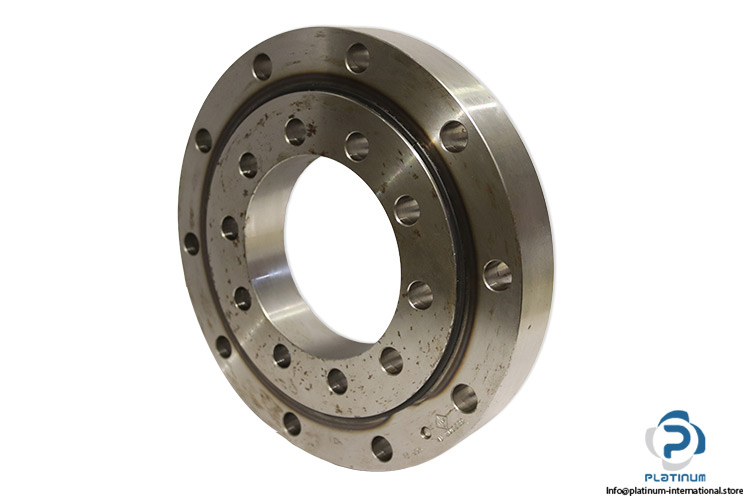

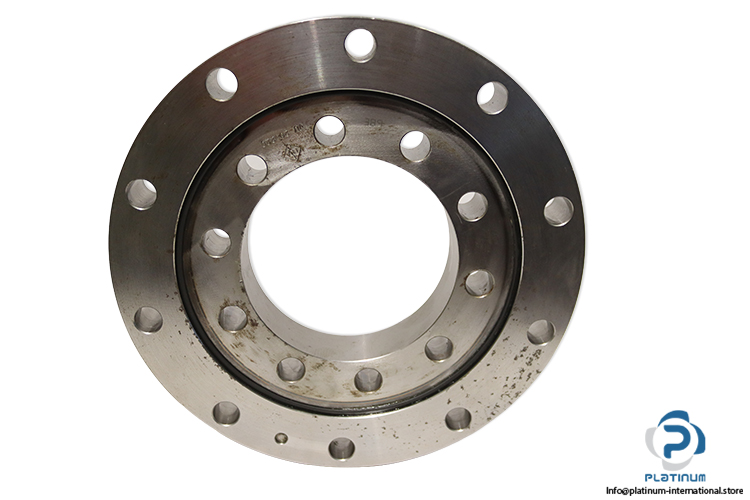

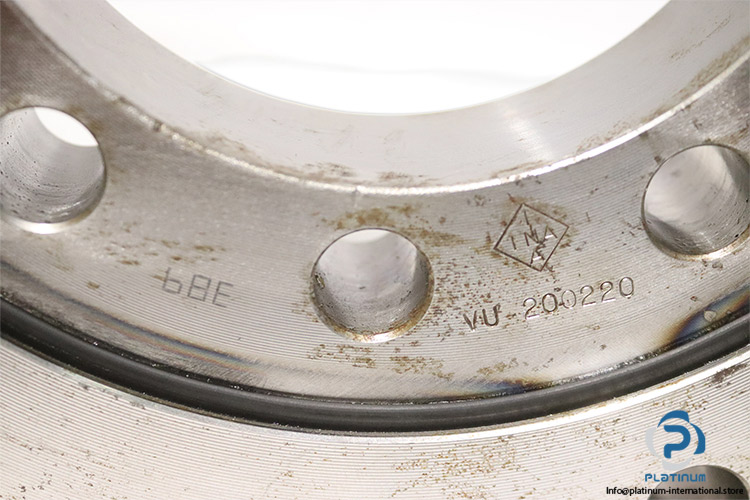

INA VU200220 Cross Roller Bearing
The INA VU200220 cross roller bearing is engineered for applications requiring high rigidity, precise guidance, and the ability to support combined axial and radial loads.
Manufacturer: INA
Type: Cross Roller Bearing
Model: VU200220
Recommended for rotary tables, machine tools, robotics, and high-precision industrial systems.
Please contact us via Ask for assistance with any inquiries.
| Inner Diameter (Inner Ring di) | 138 mm |
| Outside Diameter (Da) | 302 mm |
| Width (Outer / Inner Ring) | 41 mm |
| Height (H) | 46 mm |
| Basic Dynamic Load Rating, Axial | 159,000 N |
| Basic Static Load Rating, Axial | 510,000 N |
| Basic Dynamic Load Rating, Radial | 145,000 N |
| Basic Static Load Rating, Radial | 235,000 N |
| Operating Temperature Range | -25 to 80 °C |
