Needle Roller/Axial Cylindrical Roller Bearing
The INA ZARN3062-L-TV-A-NA bearing features a 30 mm bore diameter, 62 mm outer diameter, and a plastic cage, offering exceptional radial and axial load capacity for high-precision applications.30ANDAxialbearingboreCageCylindricaldiameterfatiguehigh-loadHigh-SpeedInaLoadmmNeedlePA66radialRatingRollerZARN3062-L-TV-A-NA
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

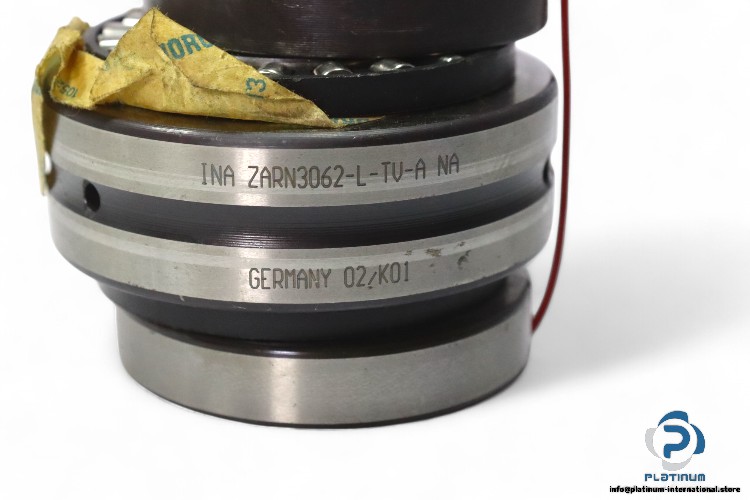

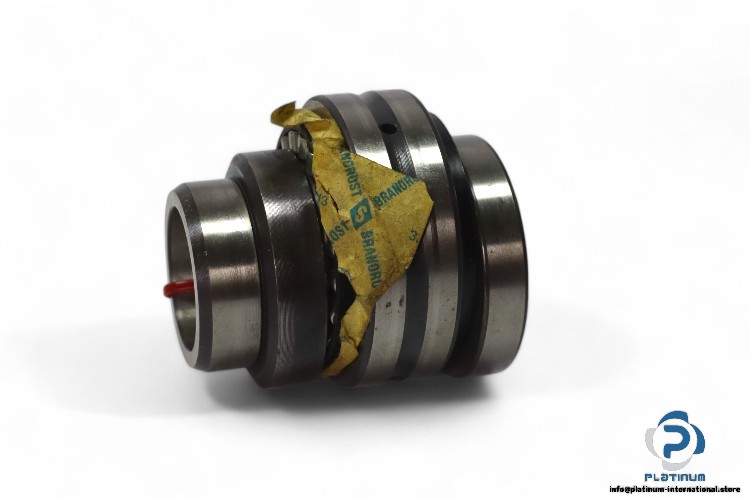

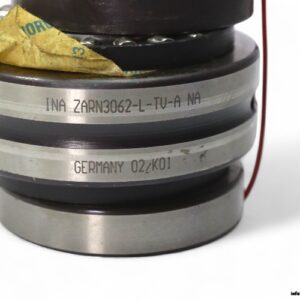

INA ZARN3062-L-TV-A-NA Needle Roller/Axial Cylindrical Roller Bearing
The INA ZARN3062-L-TV-A-NA Needle Roller/Axial Cylindrical Roller Bearing is designed for high-performance applications requiring both radial and axial load capabilities. It combines the reliability of a needle roller with the precision of an axial cylindrical roller, offering exceptional load ratings and operational stability.
This bearing is engineered to provide exceptional performance under both axial and radial loads, making it ideal for high-precision and high-speed applications.
| Bore Diameter (d) | 30 mm |
| Outer Diameter (D) | 62 mm |
| Height (H) | 65 mm |
| Radial Dynamic Load Rating (Cr) | 24.3 kN |
| Radial Static Load Rating (C0r) | 41 kN |
| Axial Dynamic Load Rating (Ca) | 39 kN |
| Axial Static Load Rating (C0a) | 101 kN |
| Axial Fatigue Load Rating (Pu) | 8.5 kN |
| Radial Fatigue Load Rating (Pu) | 6 kN |
| Limiting Speed (Oil Lubrication) | 5500 rpm |
| Limiting Speed (Grease Lubrication) | 1800 rpm |
| Cage | TV; Plastic Cage made from PA66 |
| Locating Feature (Outer Ring) | L, Stepped shaft locating washer extended on one side |
