INA ZARN3062-L-TV-A Needle Roller/Axial Cylindrical Roller Bearing
New
In stock1 unitReady to ship
Needle Roller/Axial Cylindrical Roller Bearing
The INA ZARN3062-L TV A bearing offers a 30 mm bore diameter and 62 mm outer diameter, delivering high radial and axial load capacity for demanding, high-speed applications.30aANDAxialbearingboreCageCylindricaldiameterfatiguehigh-loadHigh-SpeedInaLoadmmNeedlePA66radialRatingRollerTVZARN3062-L
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

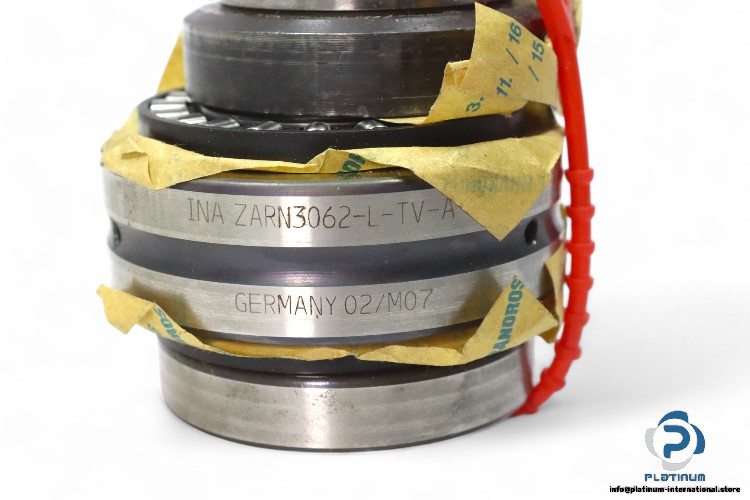

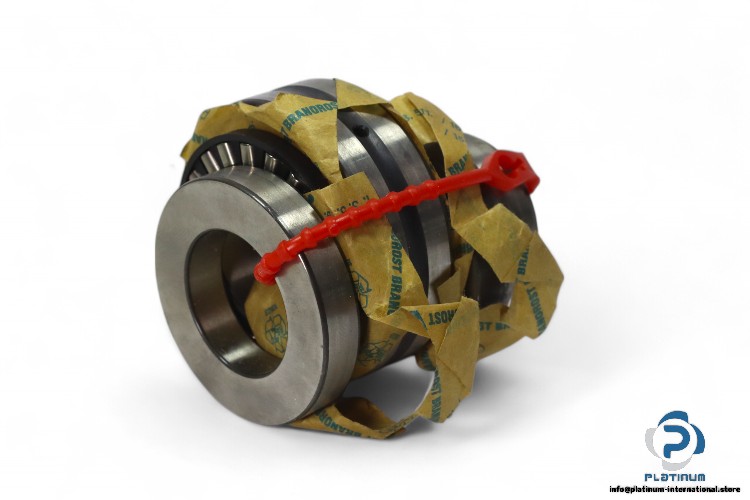

INA ZARN3062-L TV A Needle Roller/Axial Cylindrical Roller Bearing
The INA ZARN3062-L TV A Needle Roller/Axial Cylindrical Roller Bearing is designed for high-performance applications requiring both radial and axial load capabilities. It offers exceptional performance with high load ratings and operational stability, making it ideal for high-speed, heavy-duty applications.
Manufacturer: INA
Type: NEEDLE ROLLER/AXIAL CYLINDRICAL ROLLER BEARING
Model: ZARN3062-L TV A
This bearing is engineered to provide exceptional performance under both axial and radial loads, making it perfect for high-precision and high-speed applications.
| Bore Diameter (d) | 30 mm |
| Outer Diameter (D) | 62 mm |
| Height (H) | 65 mm |
| Radial Dynamic Load Rating (Cr) | 24.3 kN |
| Radial Static Load Rating (C0r) | 41 kN |
| Axial Dynamic Load Rating (Ca) | 39 kN |
| Axial Static Load Rating (C0a) | 101 kN |
| Axial Fatigue Load Rating (Pu) | 8.5 kN |
| Radial Fatigue Load Rating (Pu) | 6 kN |
| Limiting Speed (Oil Lubrication) | 5500 rpm |
| Limiting Speed (Grease Lubrication) | 1800 rpm |
| Cage | TV; Plastic Cage made from PA66 |
| Locating Feature (Outer Ring) | L, Stepped shaft locating washer extended on one side |
