INA ZKLN4075-2Z Angular Contact Ball Bearing
New
In stock1 unitReady to ship
Axial Angular Contact Ball Bearing
INA ZKLN4075-2Z axial angular contact ball bearing with double-sided 2Z sealing, high load ratings, and precise performance for industrial applications.AngularAxialBallbearingContactDoubleHighInaIndustrialLoadMachinePrecisionSchaefflerSealedToolZKLN4075-2Z
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

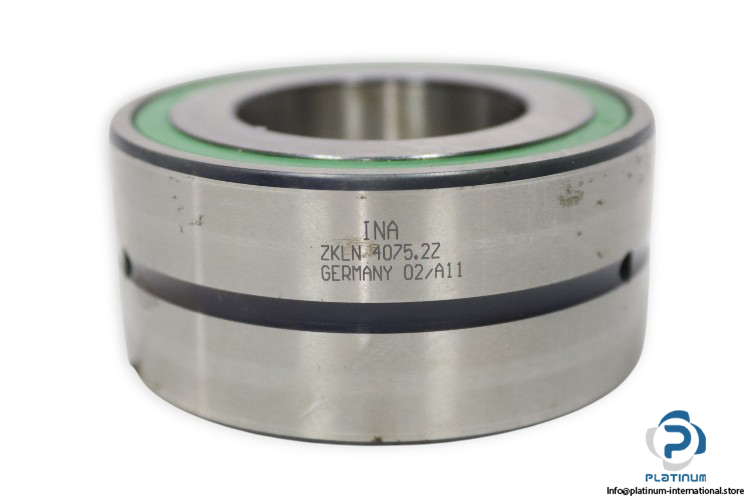

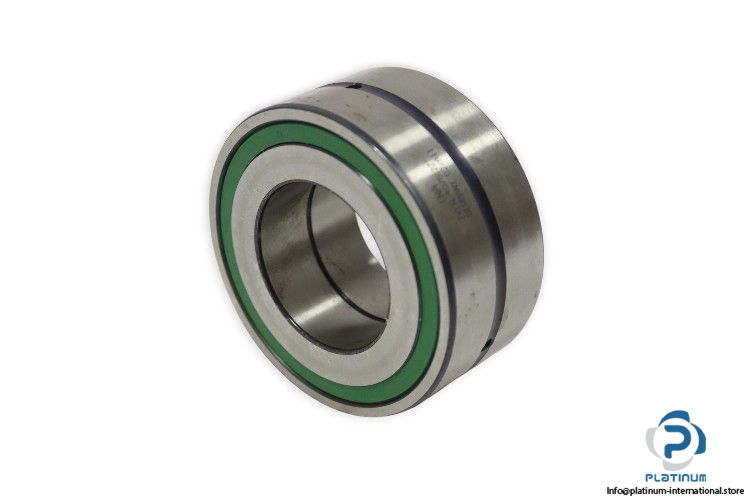

INA ZKLN4075-2Z Axial Angular Contact Ball Bearing
The INA ZKLN4075-2Z is an axial angular contact ball bearing designed for high axial and radial load capacity with precise running characteristics. Manufactured by Schaeffler, this bearing is suitable for demanding industrial applications requiring high rigidity and controlled operating speeds.
Manufacturer: INA / Schaeffler
Type: Axial Angular Contact Ball Bearing
Model: ZKLN4075-2Z
Code: 02/A11
| Bore Diameter (d) | 40 mm |
| Outer Diameter (D) | 75 mm |
| Width (B) | 34 mm |
| Design | A, Internal Variant Cage |
| Basic Dynamic Load Rating, Radial (Cr) | 47,500 N |
| Basic Static Load Rating, Radial (C0r) | 101,000 N |
| Fatigue Load Limit, Radial (Cur) | 6,100 N |
| Limiting Speed (Grease Lubrication) | 5,200 1/min |
| Thermally Safe Operating Speed | 3,300 1/min |
| Sealing | 2Z, Minimal Gap Seal on Both Sides |
| Operating Temperature Range | -30 to 120 °C |
