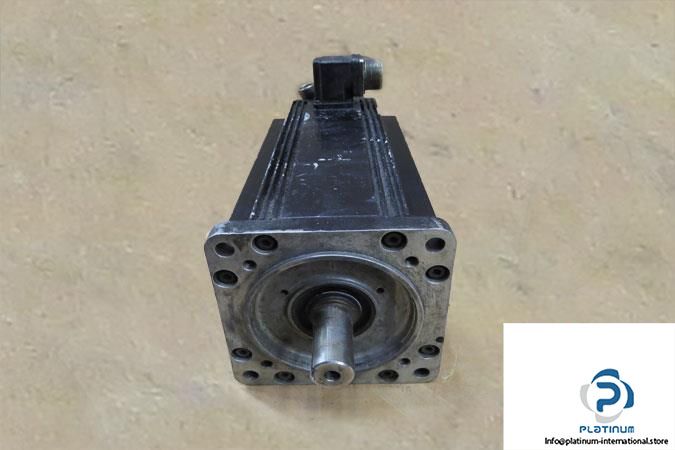

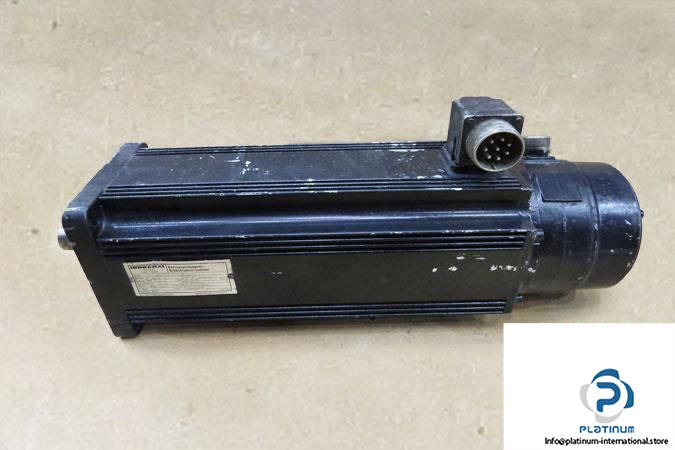

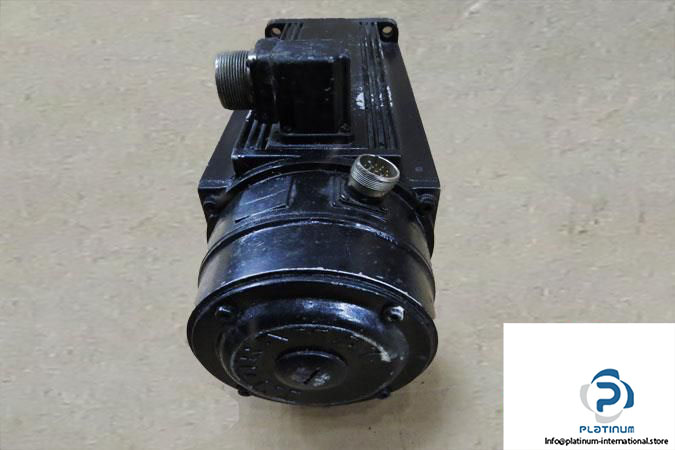

Indramat MAC 090C-0-KD Servo Motor

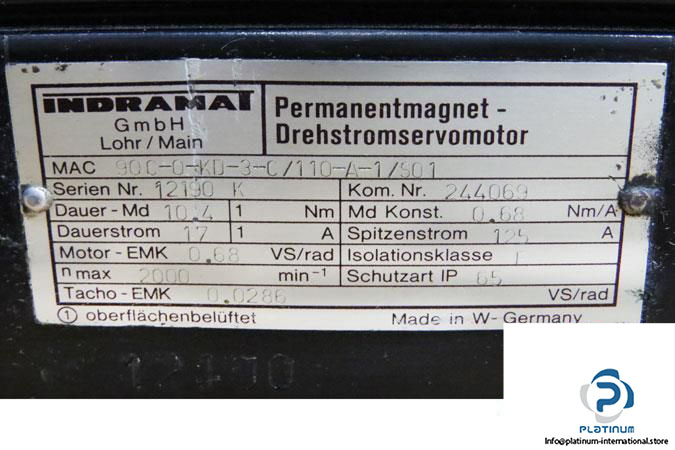

Manufacturer: INDRAMAT REXROTH

Type: PERMANENT MAGNET DREHSTROM SERVOMOTOR

Model: 90C-0-KD-3-C/110-A-1/S01

Motor-EMK: 0.68 Vs/rad

TACHO-EMK: 0.0286 Vs/rad

Continuous Current at Standstill: 17 A

Maximum Peak of Pulse Current: 125 A

Nominal Motor Speed: 2000 rpm

Continuous Torque at Standstill:  10.4 Nm

Torque Constant at 20°C: 0.68 Nm/A

Ambient Temperature: 0 … 45 °C

Protection Class: IP 65

Insulation Class: Class F

Weight: 23.2 Kg
