Indramat MAC112D-1-HD-4-C/130-A-0/WI520LV/S005 Permanent Magnet Motor

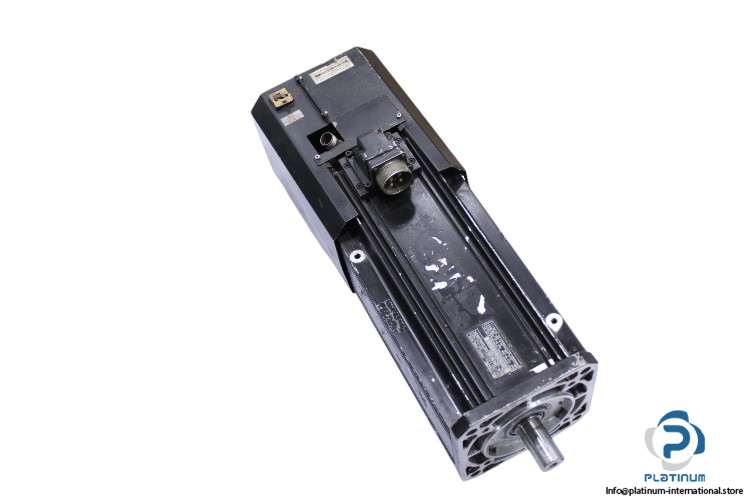

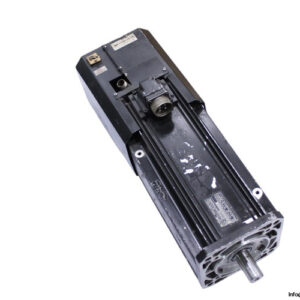

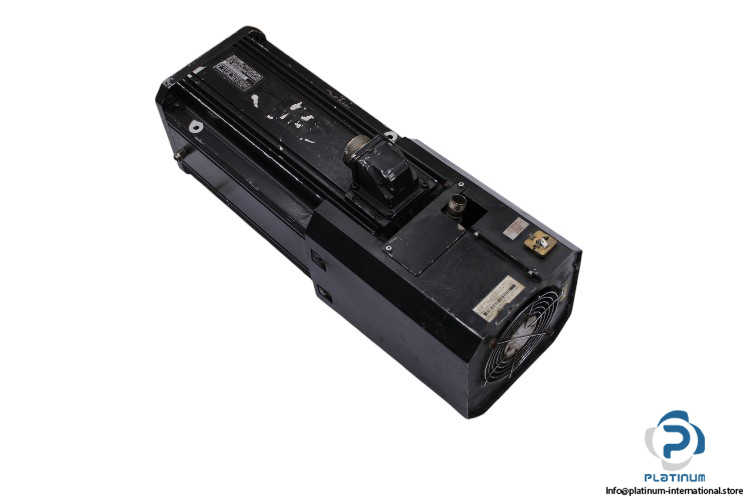

INDRAMAT MAC112D Permanent Magnet Motor

The INDRAMAT MAC112D-1-HD-4-C/130-A-0/WI520LV/S005 Permanent Magnet Motor is designed for high-performance applications in industrial automation and motion control. Featuring natural convection and surface cooling options, it ensures efficient torque generation and reliable operation at rated speeds.

Manufacturer: INDRAMAT

Type: Permanent Magnet Motor

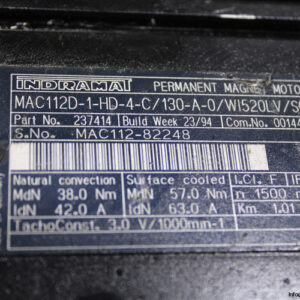

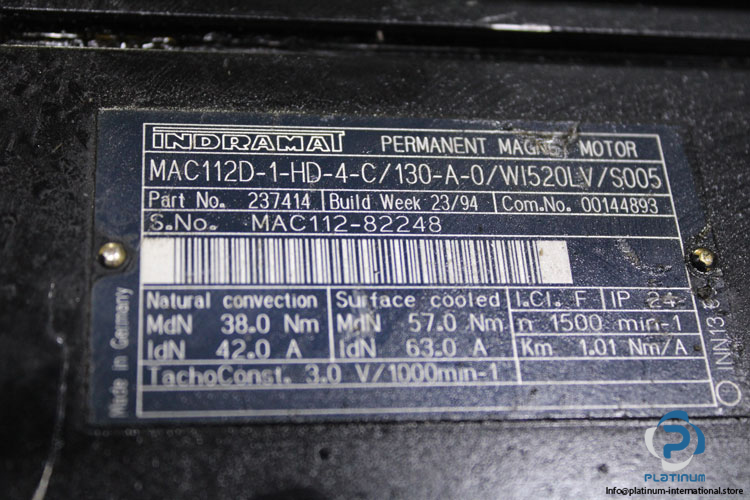

Model: MAC112D-1-HD-4-C/130-A-0/WI520LV/S005

Part No.: 237414

S. No.: MAC112-82248

Ref No.: 00144893

Technical Data:

• Natural Convection:
• Rated Current: 42 A
• Rated Torque: 38 Nm
• Surface Cooled:
• Rated Current: 63 A
• Rated Torque: 57 Nm
• Rated Speed: 1500 min^-1
• Torque Constant: 1.01 Nm/A
• Voltage Constant: 3.0 V/1kmin^-1
• Thermal Class: F
• Protection Class: IP24

Attached Components:

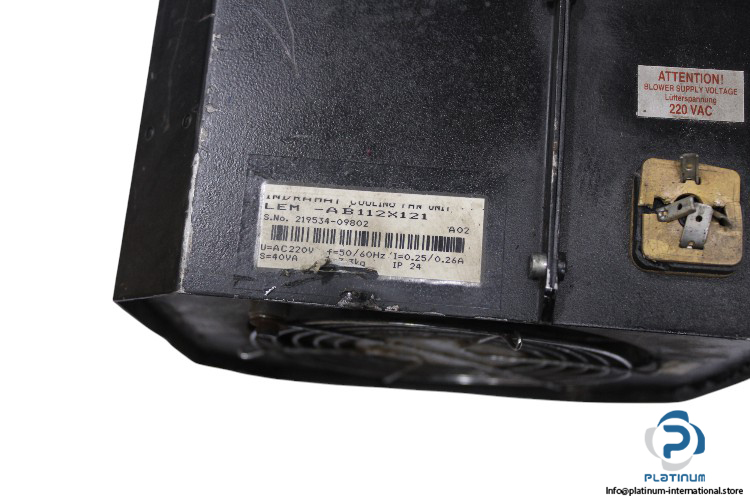

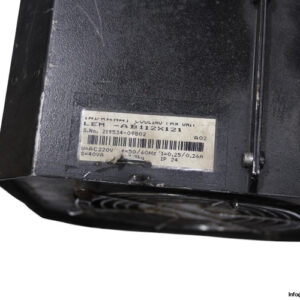

• Cooling Unit: INDRAMAT LEM œ AB112X121
• Cooling Unit S. No.: 219534-09802 A02
• Supply Voltage: 220 VAC
• Frequency: 50/60 Hz
• Current: 0.25/0.26 A

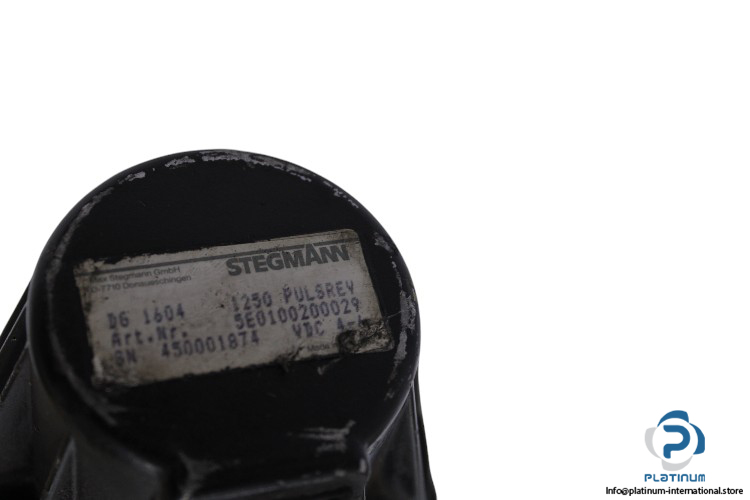

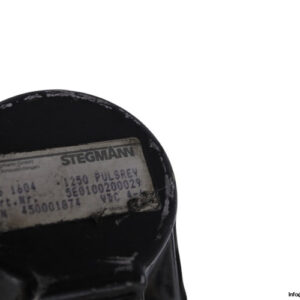

• Encoder: STEGMANN DG 1604
• Encoder Art No.: 5E0100200029
• Encoder Ref No.: 450001874
• Pulse: 1250
