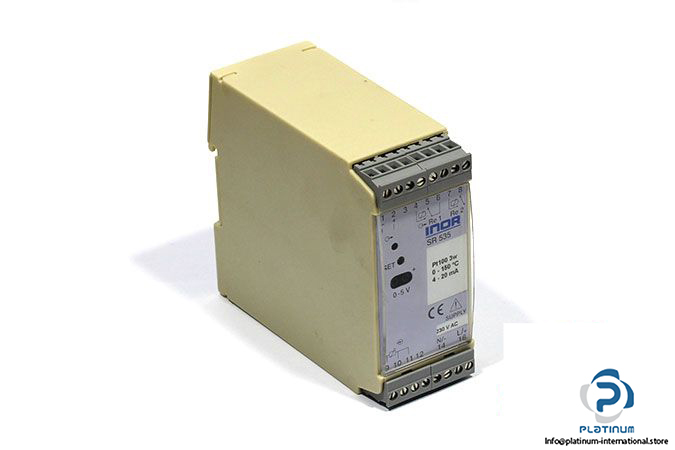

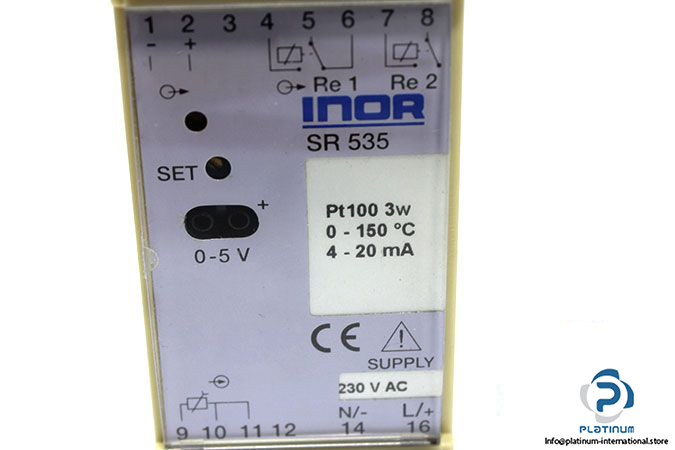

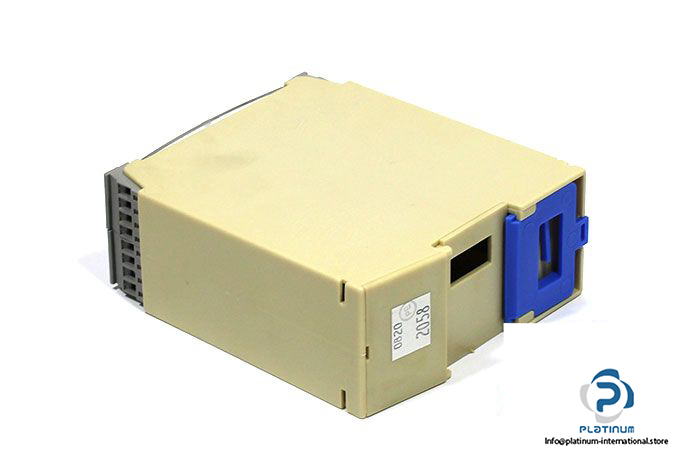

Inor SR535 Alarm Unit

Manufacturer: Inor

Type: Alarm Unit

Model: SR 535

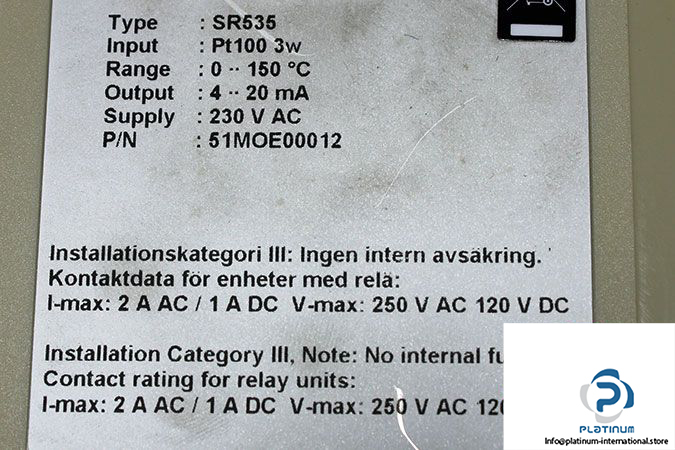

Part No: 51MOE00012

Input: Pt100 (acc. to IEC 60751) 3-wire connection

Range: 0-100, 0-150, 0-200, 0-300, 0-500 °C

Sensor Current: 3 mA

Power Supply

• AC: 230 VAC, -15..+10 %, 45..75 Hz / 115 VAC, -15..+10 %, 45..75 Hz
• DC: 19…60 VDC

Output Current: 4-20 mA linear to selected temperature range

Operation Temperature: -20…60 °C

Typical Accuracy: Trip point, mA output, ± 0.1 % of span

Connections: Plug-in terminals Stranded, ≤ 2.5 mm2, AWG 14

Mounting: Rail acc. to DIN EN 50022, 35 mm

Dimensions: 120 x 46 x 106 mm

Weight: 0.44 kg
