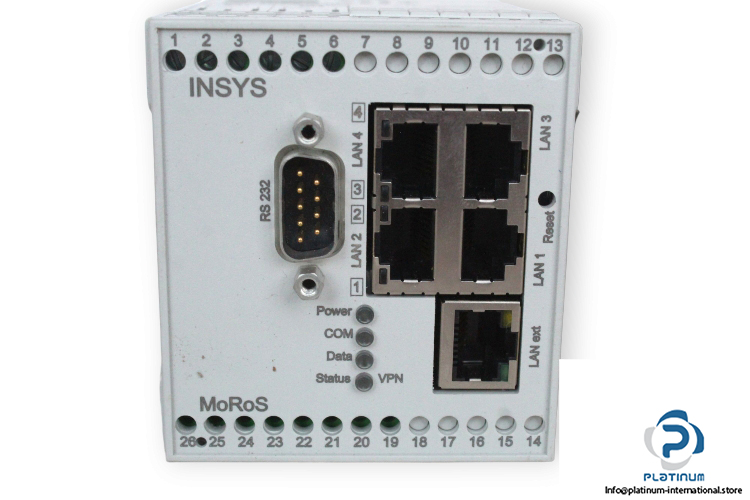

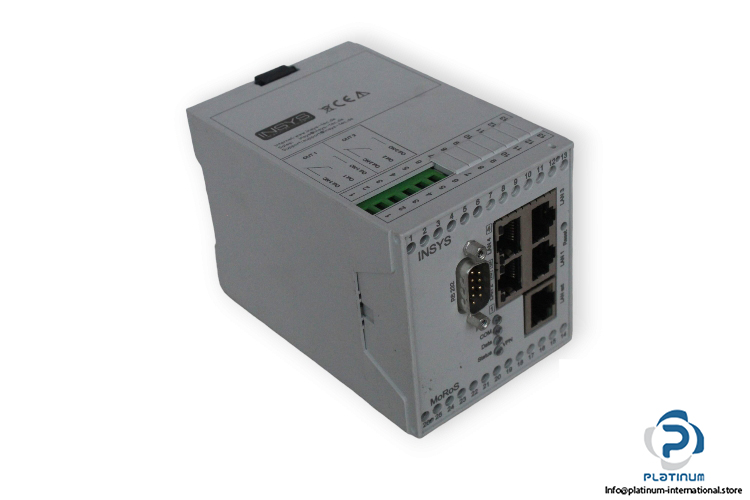

Insys Moros LAN 2.1 PRO LAN-LAN Router

Manufacture: Insys
Type: Lan-Lan Router
Model: MOROS LAN 2.1 PRO

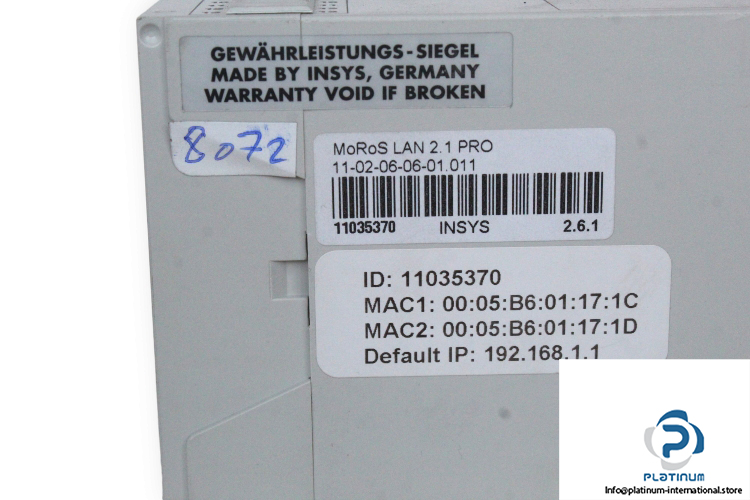

Part No.: 11-02-06-06-01.011

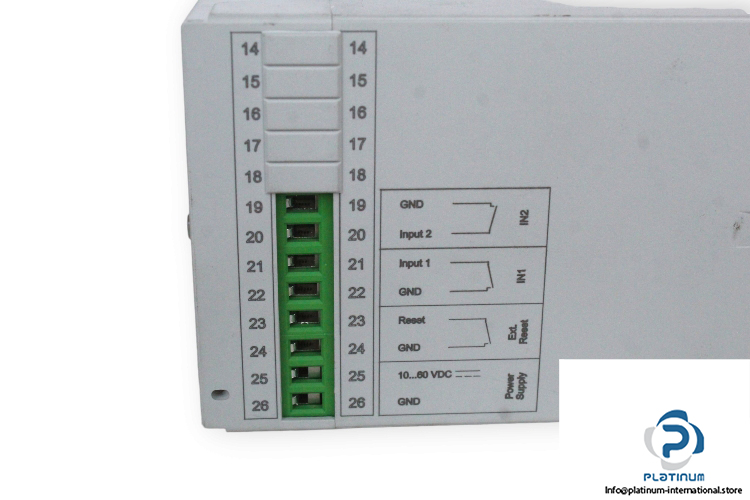

Operating voltage: 10 … 60 V DC
Power consumption connection: 3 W
Level inputs HIGH level: 3-12 V
Current consumption of an active input against GND (internal +5V): Typically 0.35 mA

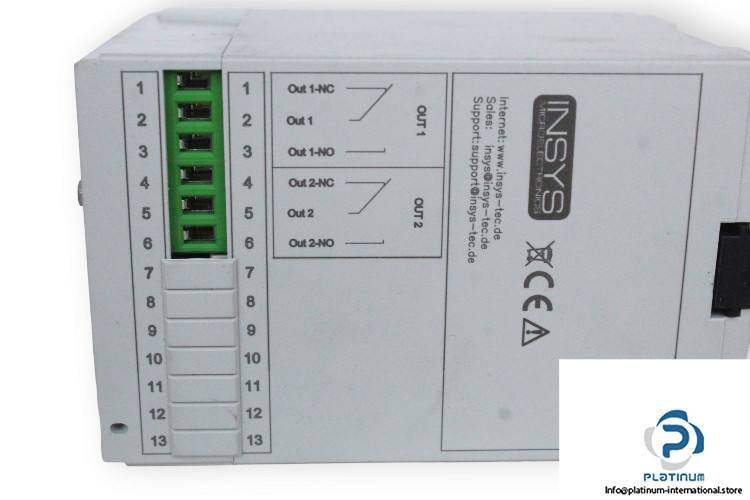

Switch output, maximum switch voltage: 30 V (DC) / 42 V (AC)
Switch output, maximum current load: 1 A (DC) / 0.5 A (AC)
Temperature range: -20 … 55 °C
IP rating: Housing IP40, Terminals IP20
Dimensions: 70 x 110 x 75 mm
