INTERROLL 113I DRUM MOTOR 350 mm
Used
In stock1 unitReady to ship
699,99$
DRUM MOTOR
Interroll 113 I drum motor with 370 W power, 113.5 mm diameter, 350 mm width, 3-phase supply, IP66 protection, FDA oil ISO VG 150, and insulation class F.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

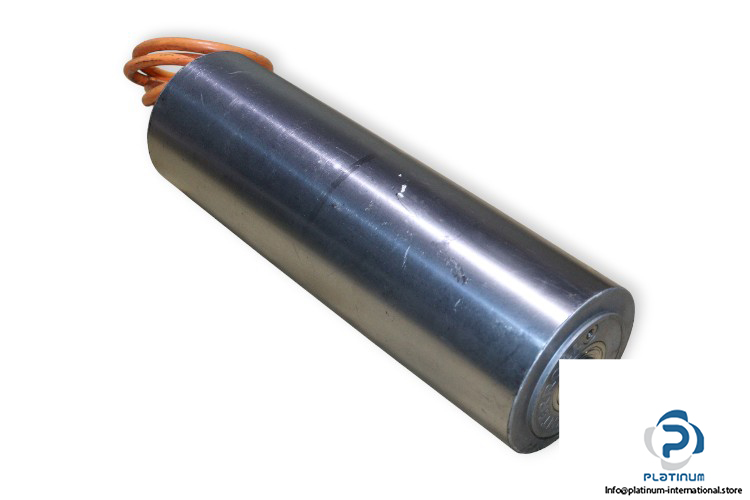

Interroll 113 I Drum Motor
The Interroll 113 I drum motor is a compact and efficient drive solution for conveyor systems. Built with high power density, protection class IP66, and FDA-approved lubrication, it ensures reliable performance in demanding industrial applications.
Manufacturer: Interroll
Type: Drum Motors
Model: 113 I
| Phase | 3 |
| Circumferential Speed of Drum Tube | 0.467 m/s |
| Drum Tube Diameter | 113.5 mm |
| Drum Width (SL) | 350.0 mm |
| Rated Power | 370 W |
| Frequency | 50/60 Hz |
| Rated Voltage at 50 Hz | 230/400 V (Delta/Star) |
| Rated Current at 50 Hz | 1.9/1.1 A |
| Rated Speed at 50 Hz | 3420 rpm |
| Rated Voltage at 60 Hz | 276/480 V (Delta/Star) |
| Rated Current at 60 Hz | 1.9/1.1 A |
| Rated Speed at 60 Hz | 2850 rpm |
| Power Factor | 0.79 |
| Number of Poles | 2 |
| Oil Type | ISO VG 150 FDA |
| Oil Quantity | 0.4 L |
| Protection Class | IP66 |
| Insulation Class | F |
