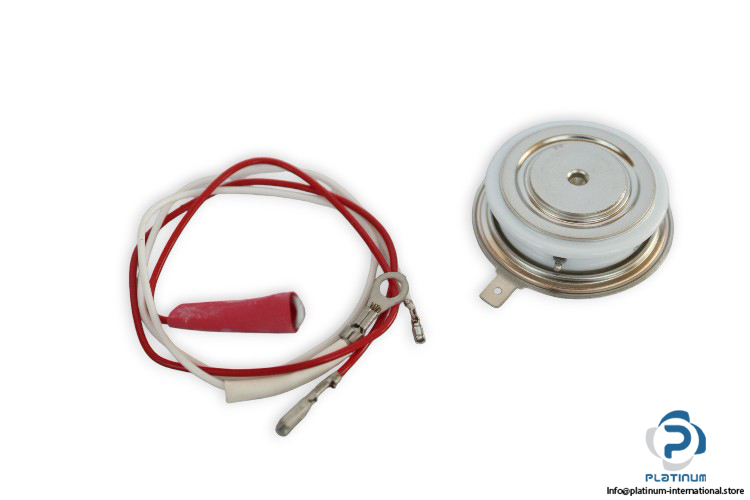

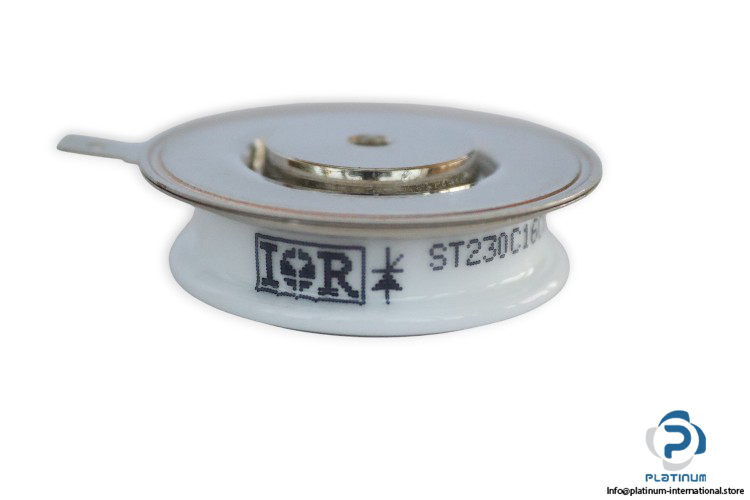

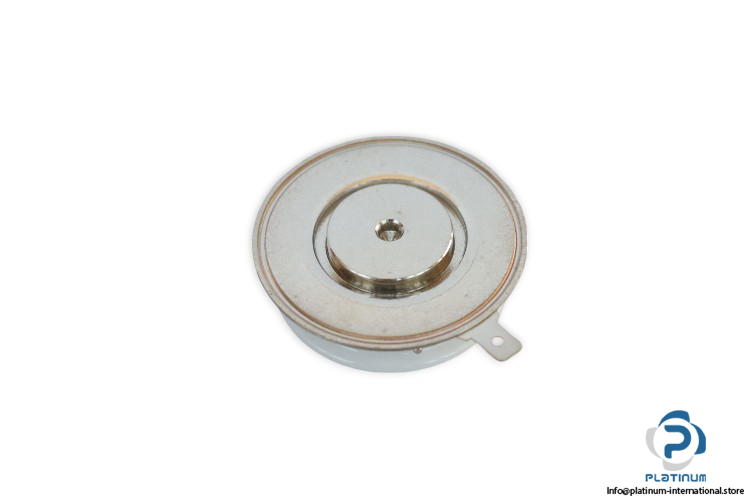

IOR ST230C16C0 Phase Control Thyristor

Manufacturer: IOR
Type: Phase Control Thyristor

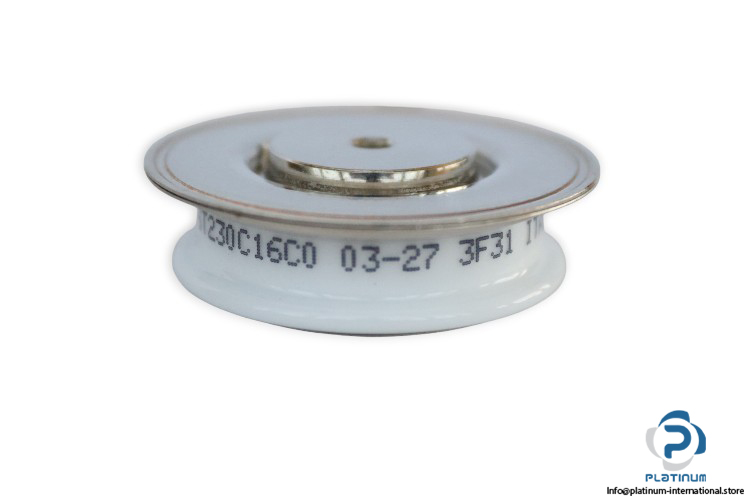

Model: ST230C16C0

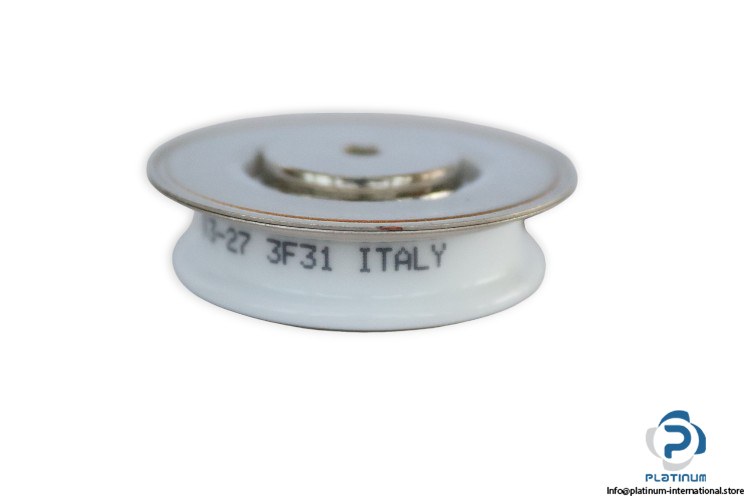

Part No.: 03-27 3F31

Features:
-Center amplifying gate
-Metal case with ceramic insulator
-International standard case TO-200AB (A-PUK)
Typical Applications:
-DC motor controls
-Controlled DC power supplies
-AC controller
Maximum peak positive gate voltage: 20 V
Maximum peak gate power: 10 W
Max. peak positive gate current: 3 A
Maximum Repetitive Peak Reverse Voltage: 1600 V
Maximum Non-Repetitive Peak Reverse Voltage: 1700 V
Operating Temperature: -40 … 125°C
Dimensions: 27 x 58.5 x 58.5 mm
