IPC BLXMS00003 Blower FAN
149,99$
Blower Fan

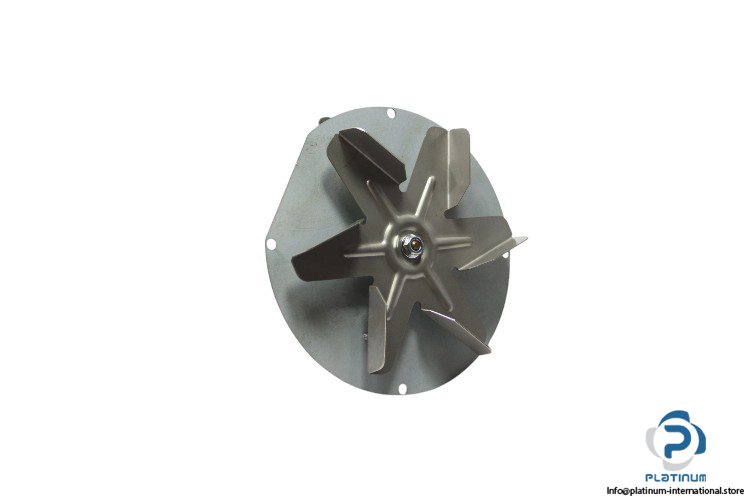

The IPC BLXMS00003 blower fan features 6 metal blades, 2400/2600 RPM speed, and a power rating of 32/33 W. Paired with the IPC FLH150/020A-1802D-3 motor, it delivers up to 160 m³/h airflow for efficient industrial ventilation.IPC BLXMS00003 Blower Fan with Exhaust Motor FLH150/020A-1802D-3
The IPC BLXMS00003 Blower Fan is a high-performance industrial ventilation component designed for effective airflow and cooling. Equipped with 6 durable metal blades and operating at speeds up to 2600 RPM, it delivers a maximum airflow of 160 m³/h. It runs on 220/240 V AC and supports both 50/60 Hz frequency operation.
This unit is coupled with the IPC FLH150/020A-1802D-3 Exhaust Fan Motor, ensuring reliable and energy-efficient performance with a current rating of 0.14/0.13 A. Built with a metal blade and fan housing, and integrated with a 7-wire configuration, the fan is ideal for demanding ventilation needs in industrial environments.
Manufacturer: IPC
Type: Blower Fan
Model: BLXMS00003
Exhaust Fan Motor Technical Information:
| Number of Blades | 6 |
| Voltage | 220/240 V AC |
| Power Rating | 32/33 W |
| Speed | 2400/2600 RPM |
| Frequency | 50/60 Hz |
| Inverter | Without Inverter |
| Number of Wires | 7 |
| Dimensions | 150x20 mm |
| Max Air Flow | 145/160 m³/h |
| Blade / Fan Housing Material | Metal |
| Attachment | IPC FLH150/020A-1802D-3 Exhaust Fan Motor |
| Current | 0.14/0.13 A |
