IPC GMF280D901 AC Gear Motor
Used
In stock2 unitsReady to ship
111,11$
AC Gear Motor
The IPC GMF280D901 gear motor offers smooth 8 rpm performance with 4 Nm torque and reversible CW/CCW rotation. Built with an aluminium alloy housing for durability and efficiency in industrial automation applications.ACAlloyAluminiumAutomationControlElectricEquipmentGearGearboxGMF280D901IndustrialIPCMotionmotorReversibleTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

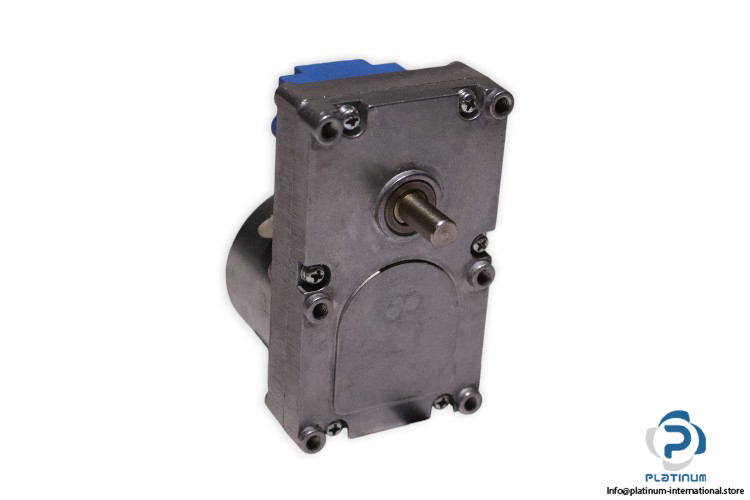

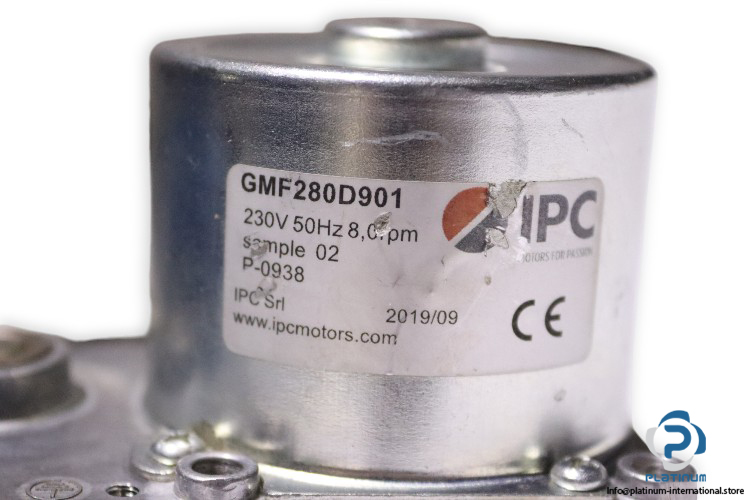

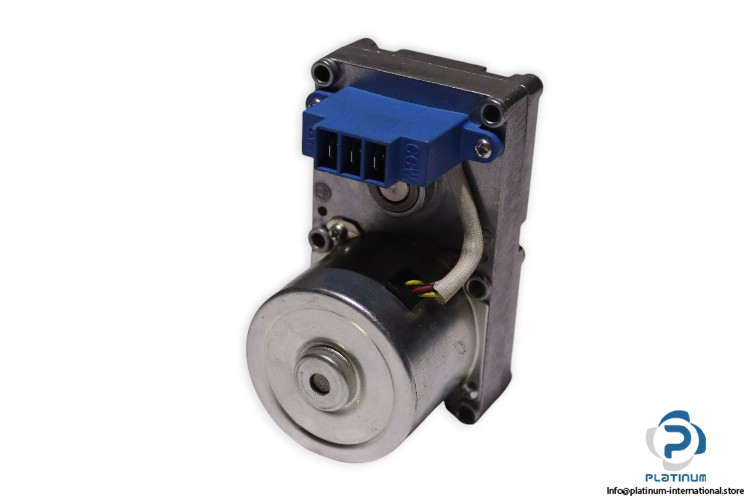

IPC GMF280D901 AC Gear Motor
The IPC GMF280D901 is a compact and efficient AC gear motor designed for precise motion and torque control in industrial and automation applications. With a durable aluminium alloy gearbox, reversible rotation, and consistent performance across wide temperature ranges, it ensures reliable operation and long service life.
Manufacturer: IPC
Type: AC Gear Motor
Model: GMF280D901
| Rated Voltage | 220 / 240 V |
| Rated Frequency | 50 Hz |
| Rated Power | 14“22 W |
| Rated Speed | 8 rpm |
| Rated Torque | 4 Nm |
| Rated Current | 0.08“0.12 A |
| IP Rate | IP20 |
| Max Torque | 5 Nm |
| Type of Service | S3 (Intermittent) |
| Stall Torque | 6 Nm |
| Rotation | CW / CCW |
| Operating Temperature | -10°C / +70°C |
| Gearbox Shell Material | Aluminium Alloy |
| Shaft Diameter | 9.5 mm |
