IPC GMF420D901 Gear BOX Motor
New
In stock18 unitsReady to ship
149,99$
Gear Box Motor
The IPC GMF420D901 is a 24 VDC gear box motor delivering 18 Nm rated torque and 10 W output power. Designed for continuous-duty operation with smooth, reliable performance in industrial and automation systems.24vAutomationBoxContinuousControldcDriveDutyGearGMF420D901HighIndustrialIPClowMotionmotorSpeedTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

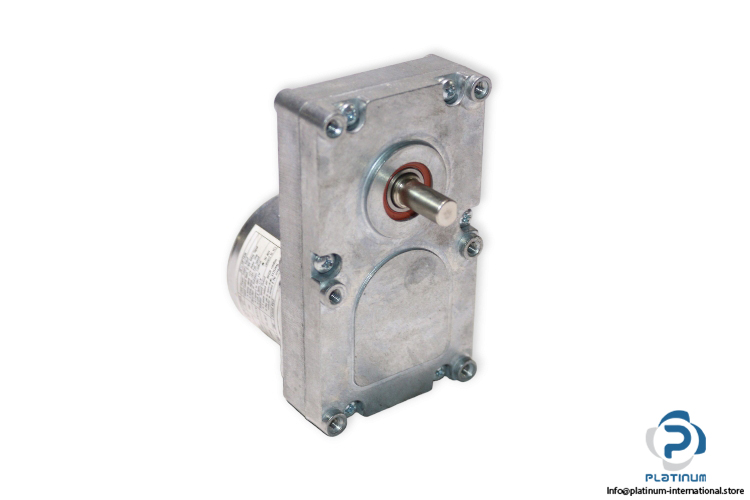

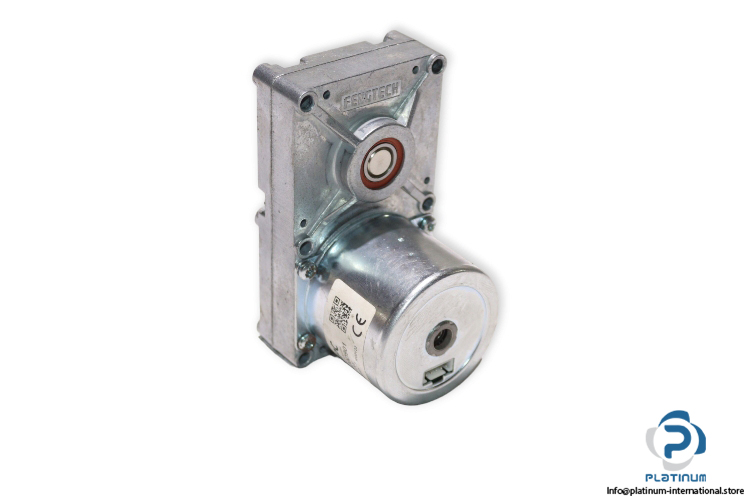

IPC GMF420D901 Gear Box Motor
The IPC GMF420D901 Gear Box Motor is a compact and efficient DC motor designed for reliable torque transmission and long operational life. Built for industrial automation and motion systems, it offers smooth speed control, stable operation, and high torque output within a 24 VDC range.
Manufacturer: IPC
Type: Gear Box Motor

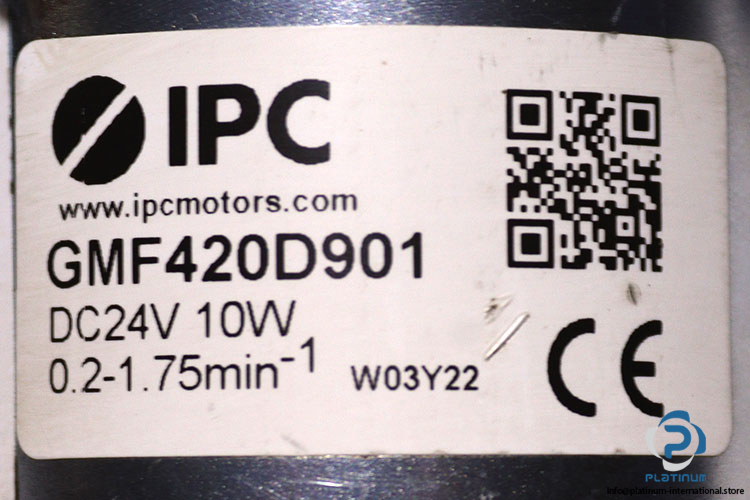

Model: GMF420D901
| Rated Voltage | 24 VDC |
| Rated Current | 0.4 A |
| Rated Power | 10 W |
| Speed Range | 0.2 “ 1.75 rpm |
| Rated Torque | 18 Nm |
| Max Torque | 25 Nm |
| Short Term Torque | 30 Nm |
| Operation Voltage | 18 “ 26 VDC |
| Operation Temperature | -20 °C to 60 °C |
| IP Rate | IP40 |
| Type of Service | S1 (Continuous) |
