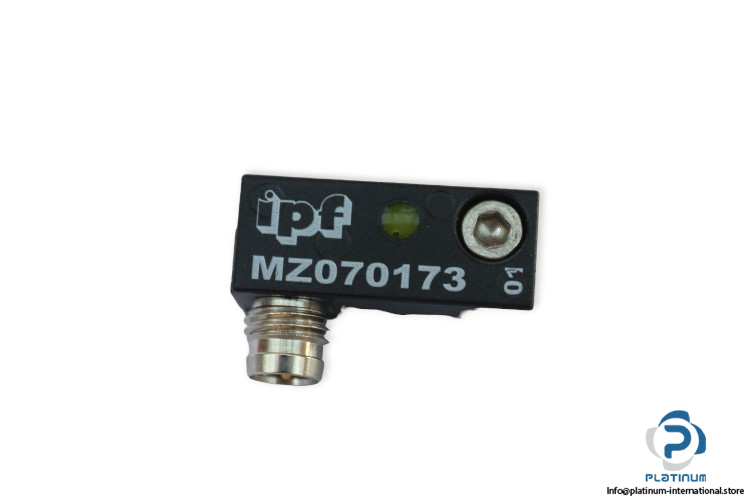

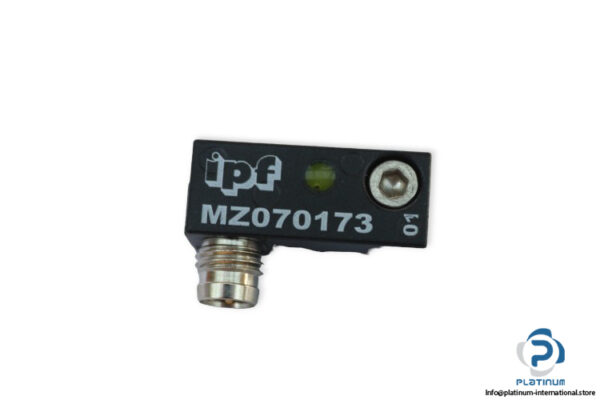

IPF MZ070173 Magnetic Sensor
Manufacturer: IPF
Type: Magnetic Sensor
Model: MZ070173
Operating voltage: 10 … 30 V
Voltage drop: 2 V DC
Switching hysteresis typ.: 1 mm
Max. output current: 150 mA
No-load current: 15 mA
No. of pins: 3
No. of switching outputs: 1
Enclosure rating: IP67
Type of electrical connection Connector: M8
Type of switching function: Normally open contact
Type of switching output: PNP
Ambient temperature: -25 … 70 °C
Housing design: Cuboid
Housing material: Aluminum
Switching frequency: 1000 Hz
Dimensions: 16 x 25 x 10.2 mm
