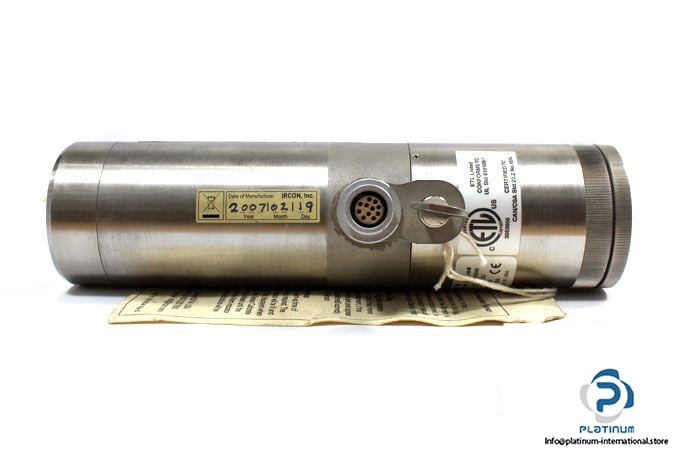

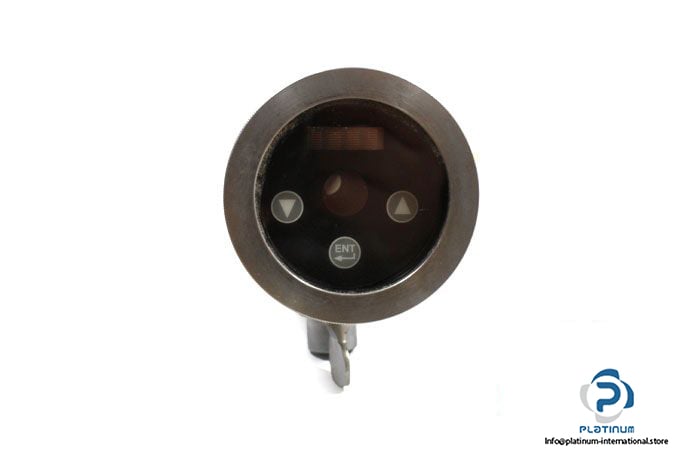

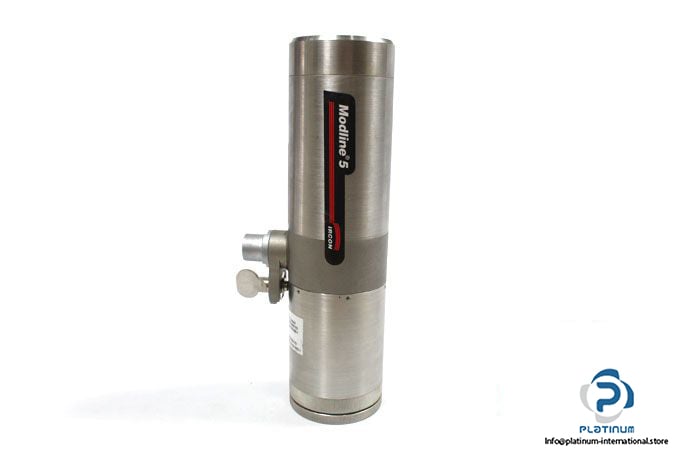

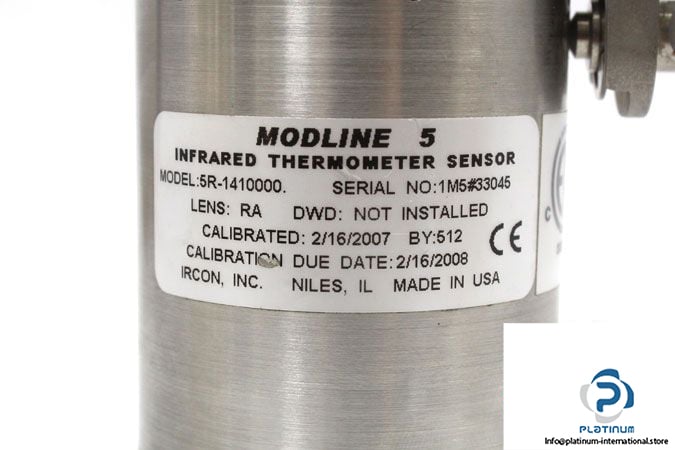

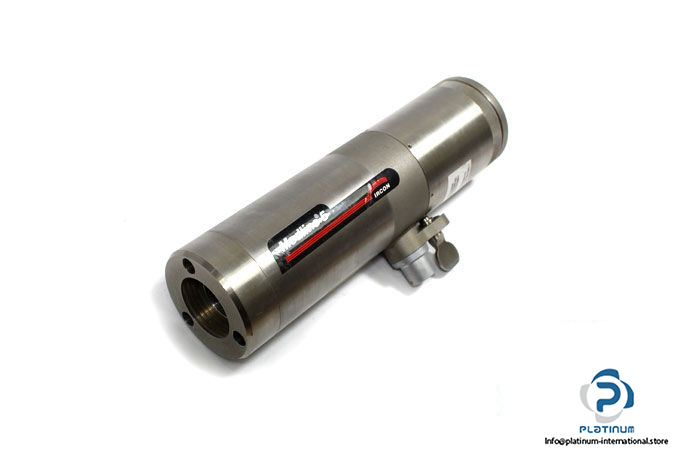

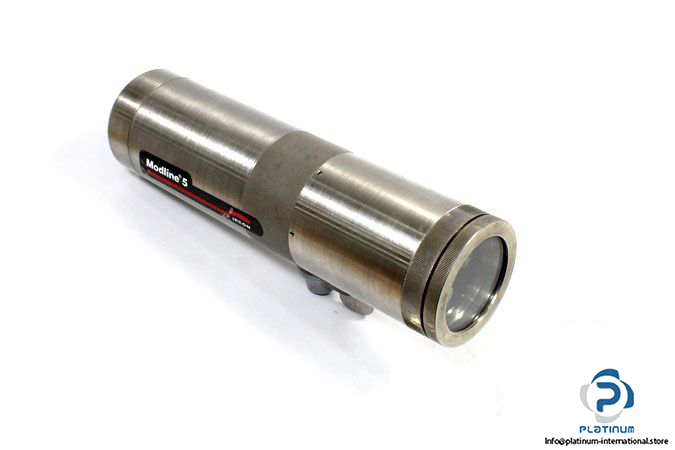

Ircon Modline 5 5R-1410000 Infrared Thermometer Sensor

Manufacturer: IRCON

Type: INFRARED THERMOMETER SENSOR

Series: MODLINE 5

Model: 5R-1410000

Features: Noncontact standalone dual-detector high-temperature sensors for difficult processes such as vacuum furnaces, kilns, molten metals, and thin wires or rods

Temperature Range: 600 … 1400°C

Operating Voltage: 24 V DC

Analog Output: 0 … 20 mA, 4 … 20 mA

Analog Input: 4 … 20 mA (emissivity or e-slope or Laser)

Spectral range: 0.75–1.05µm; 1.0–1.1µm (ratio mode), 1.0–1.1µm (single color)

Response: 10 ms

Emissivity: 0.100–1.000 (single color mode)

E-Slope range: 0.800–1.200 (ratio mode)

Ambient Operating temperature: Without Cooling 0 to 55°C

Ambient Operating temperature: With Air Cooling 0 to 105°C

Ambient Operating temperature: With Water Cooling 0 to 200°C

Enclosure rating: IP65

Diameter, housing length: 57 , 210 mm

Weight: 1.5 kg

Housing material: Stainless steel

Lens: RA
