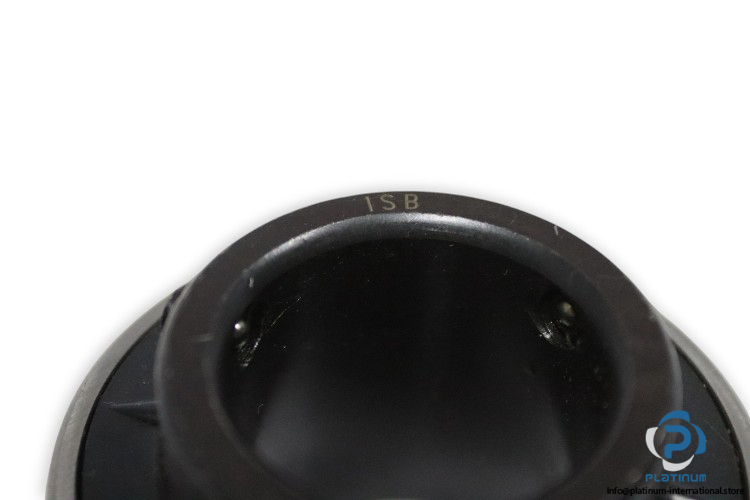

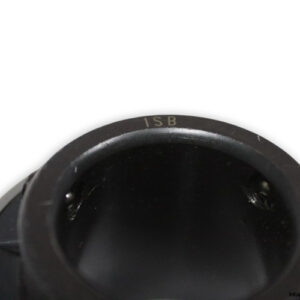

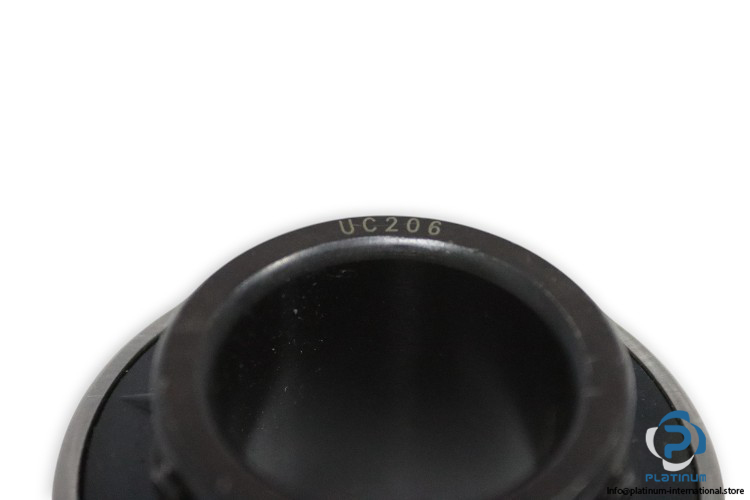

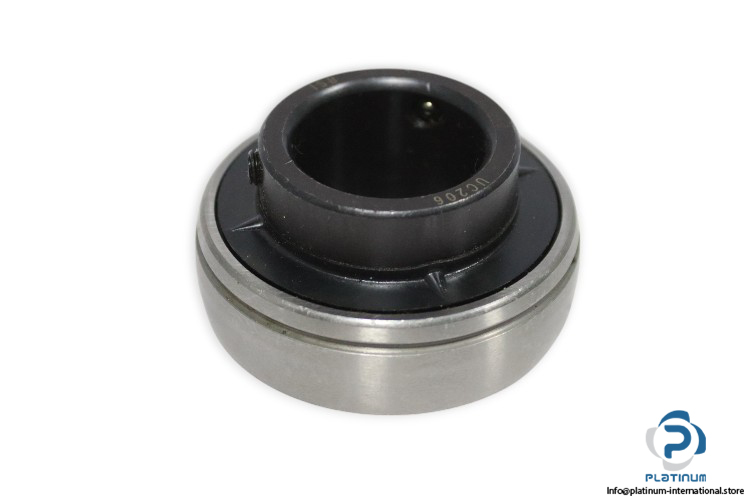

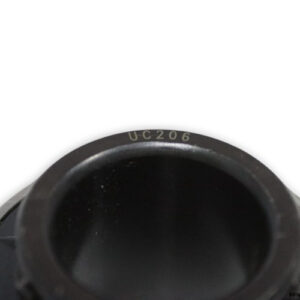

ISB UC 206 Insert Ball Bearing
ISB Insert Ball Bearing UC 206 €“ Precision-engineered bearing with a 30 mm shaft diameter, high load capacities, and a maximum speed of 800 RPM for reliable industrial performance.
ISB Insert Ball Bearing UC 206
Manufacturer: ISB
Type: Insert Ball Bearing
Model: UC 206
The ISB Insert Ball Bearing UC 206 is a robust and versatile bearing designed for industrial applications requiring reliability and durability. It features a precise engineering design, ensuring optimal performance even under heavy loads and demanding conditions. With its exceptional load capacities and adaptability, this bearing is suitable for various mechanical systems.
Technical Specifications:
- Shaft Diameter (d): 30 mm
- Outer Diameter (D): 62 mm
- Width of Inner Ring (B): 38 mm
- Width of Outer Ring (C): 19 mm
- Maximum Speed: 800 RPM
- Basic Load Ratings:
- Dynamic (C): 55 kN
- Static (C0): 36 kN
Designed with precision and durability in mind, the ISB UC 206 Insert Ball Bearing is easy to install and ideal for heavy-duty applications, delivering consistent performance over its lifespan.
