Italcoppie 97404414 Temperature Transmitter
New
In stock1 unitReady to ship

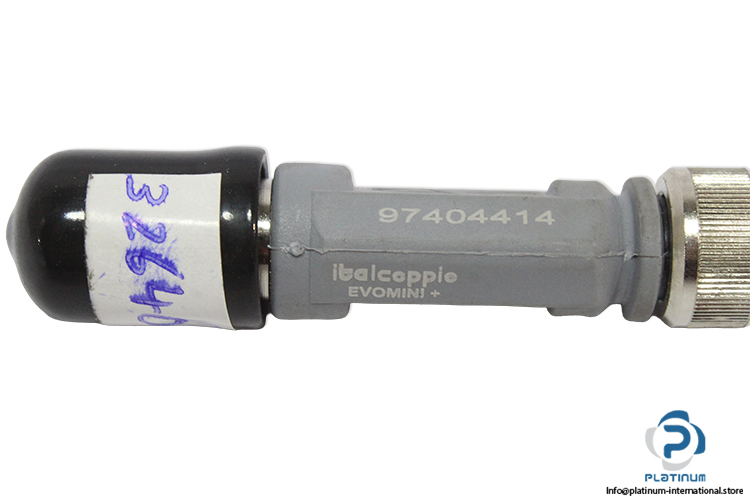

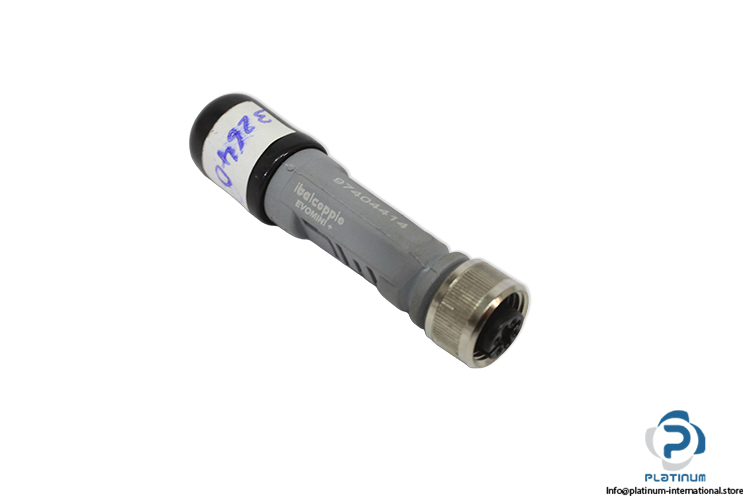

Italcoppie EVOMINI+ 97404414 temperature transmitter with Pt100 input, 4–20 mA output, 8.5–32 Vdc power supply, AISI 316 body, M12 connector, and IP65/67 protection for industrial temperature measurement applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | EVOMINI+ |
| Ref No | 19/15, 674/45 |

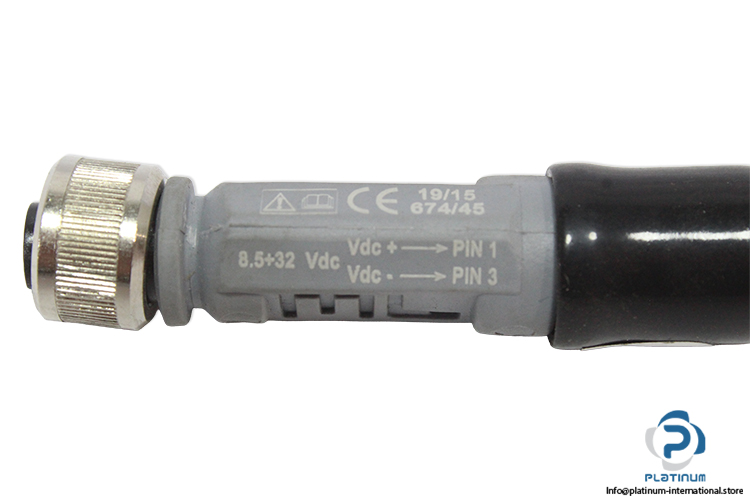

| Power supply | 8,5 …32 Vdc (polarity protected) |
| Accuracy | maximum value between ±0.2 °C and ±0.2% of range set |
| Response time of electronics section | <50 ms |
| Temperature influence | Maximum value between ±0,3°C/25°C and ±0,3% of span/25°C |
| Permitted load | 700 O @ 24 Vcc [RLO= (Valim. - 8,5) / 0,022] |
| Electronic board input | RTD Pt100 (a= 0,00385) 3 wire connection |
| PCB input range | -50 ÷800 °C |
| Sensor exciting current | 0,5 mA |
| Signal | 4 … 20 mA |
| Connection body material | AISI 316 |

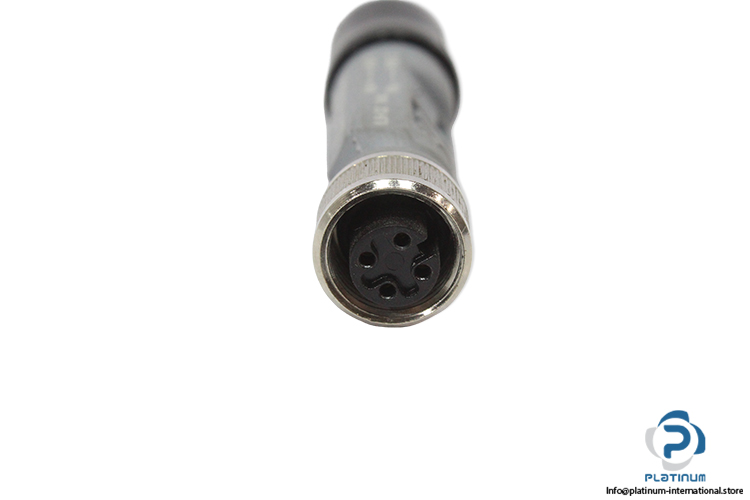

| Sensing part connector | 4-pin female connector with M12x1 metal screw lock (in accordance with IEC 61076-2-101 STANDARDS) |
| Protection class | IP65/67 |
| Condition | New |
| SKU | 1099126 |
| Weight | 0,01 |
