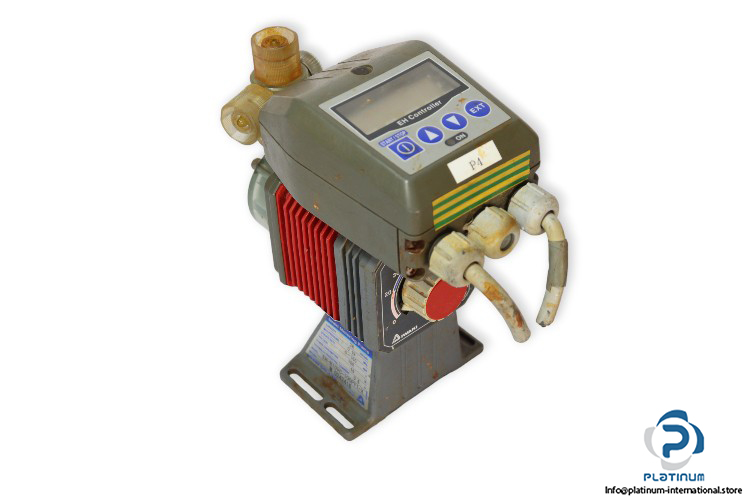

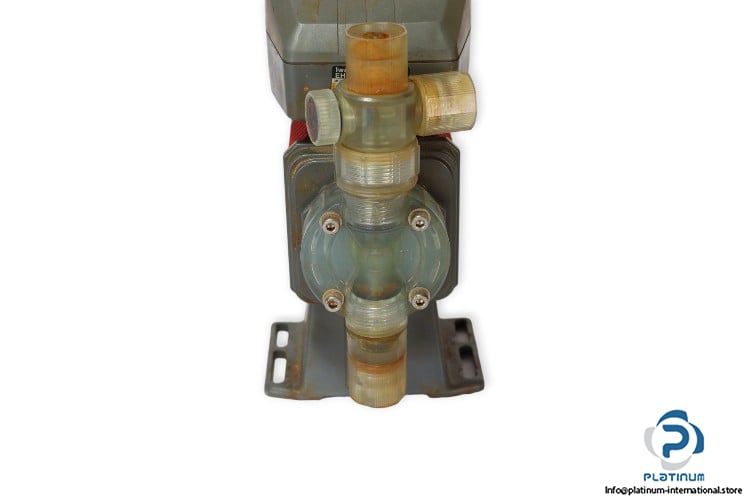

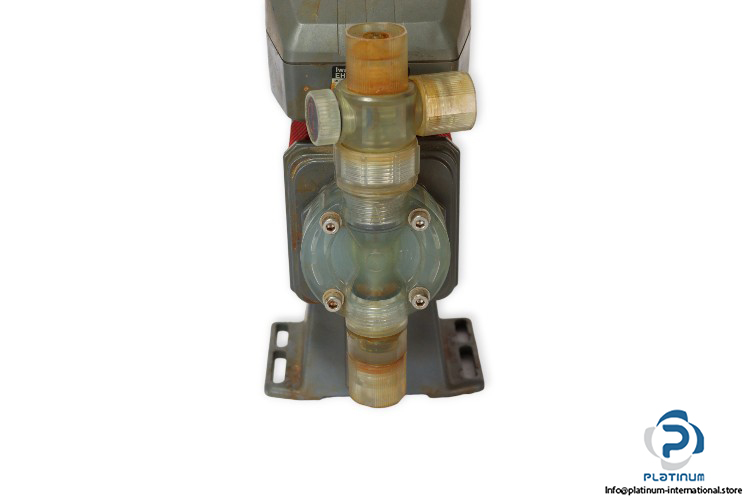

Iwaki EH-B10VC-100PY1-X Electromagnetic Metering Pump
Used
In stock1 unitReady to ship
Manufacturer: IWAKI METERING PUMP Part No.: M 0242418
Type:
Electromagnetic metering pump
Model:
EH-B10VC-100PY1-X
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

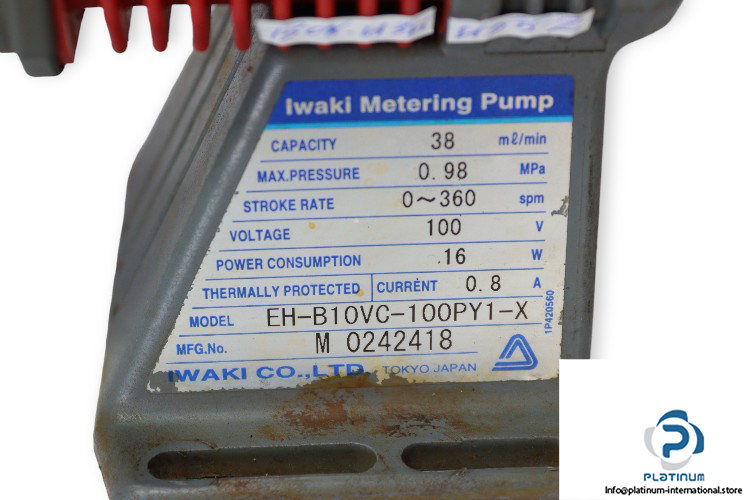

Manufacturer: IWAKI METERING PUMP
Type: Electromagnetic metering pump
Model: EH-B10VC-100PY1-X
Part No.: M 0242418
Diaphragm effective diameter: 9 mm
Main materials
pump head: PVC
valve balls: CE
Diaphragm: PTFE
Gasket: PTFE
Power supply: 100 VAC
Power Consumption: 16 w
Current: 0.8 A
Max. capacity range: 38 mL/min
Max. pressure range: 0.98 MPa
Stroke rate: 0 – 360 spm
Liquid temperature range: 0 – 40ËšC
