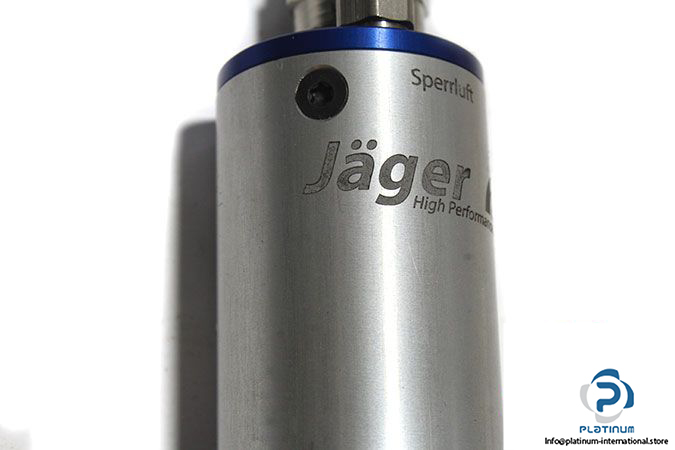

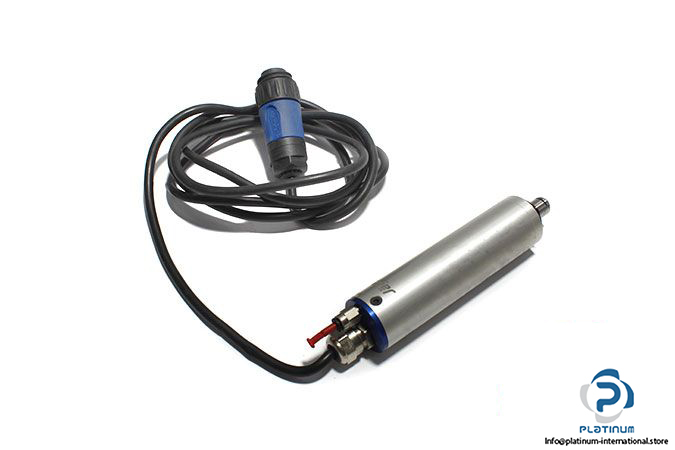

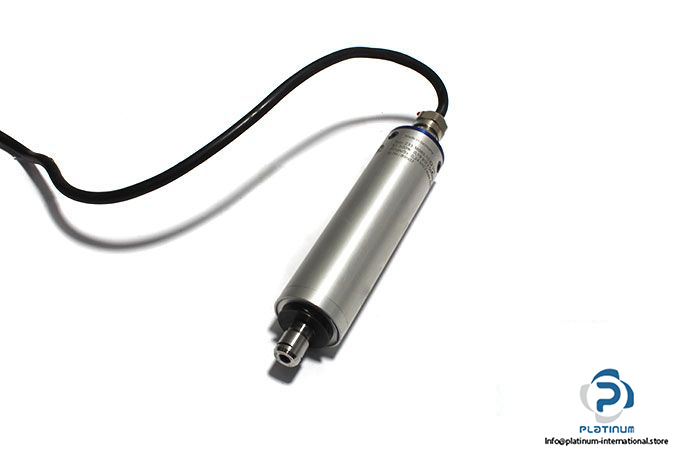

Jager Z33-M060.10 K2 S15 High Frequency Spindle

Manufacturer: JAGER

Type: High Frequency Spindle

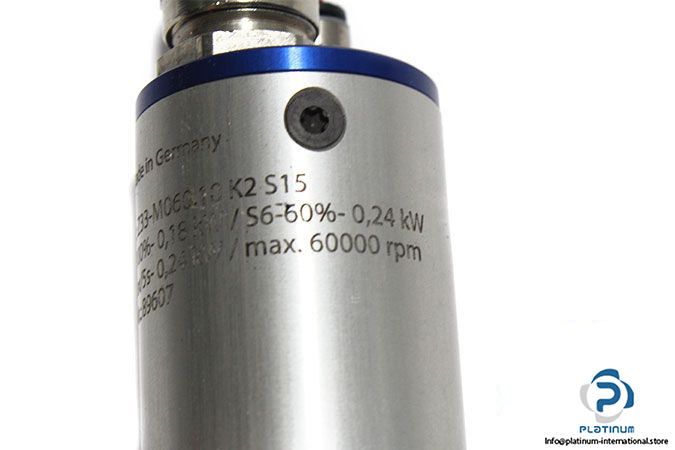

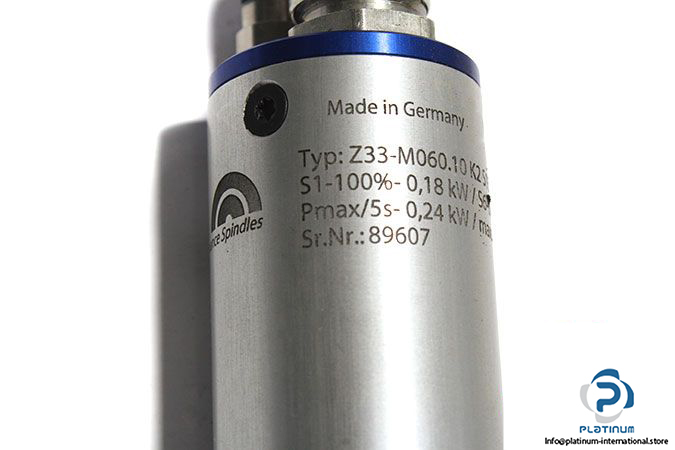

Model: Z33-M060.10 K2 S15

Motor technology: 3-phase asynchronous drive

Frequency: 1.000 Hz

Motor poles: 1

Hybrid ball bearing (pcs): 2 (front)

Steel ball bearing (pcs): 1 (rear)

Rated rotation speed: 60.000 rpm

Acceleration/braking value: 10.000 rpm

Housing Material: Stainless steel

Housing diameter: 33 mm

Tool change: Manual tool change

Ambient temperature: 10°C … + 45°C
