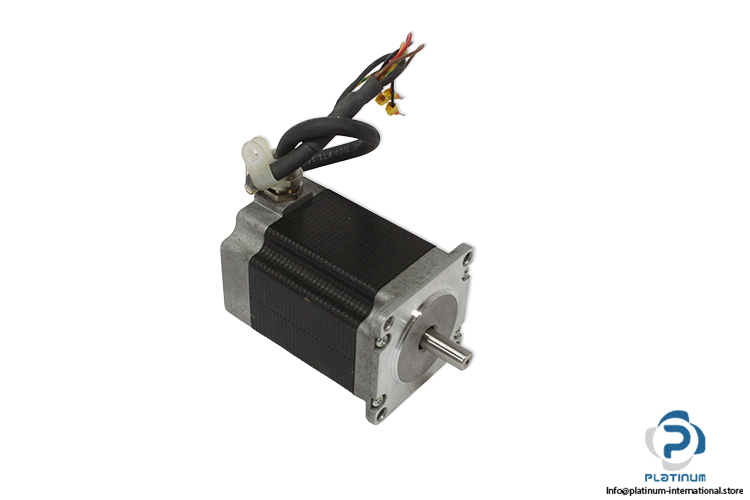

Jenaer 23S31-0650-80000-13 Stepper Motor
Used
In stock2 unitsReady to ship
Stepper Motor
JAT 23S31-0650-80000-13 2-phase stepper motor with 1.8° step angle, 1.88 Nm holding torque, and 60 V DC link voltage for precision motion control applications. Recommended for CNC machinery, automation systems, and accurate positioning tasks.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
JAT 23S31-0650-80000-13 Stepper Motor
The Jenaer Antriebstechnik (JAT) 23S31-0650-80000-13 is a high-performance 2-phase stepper motor engineered for precise positioning, controlled motion, and reliable torque delivery in industrial automation systems.
Manufacturer: Jenaer Antriebstechnik (JAT)
Type: 2-phase Stepper Motor
Model: 23S31-0650-80000-13

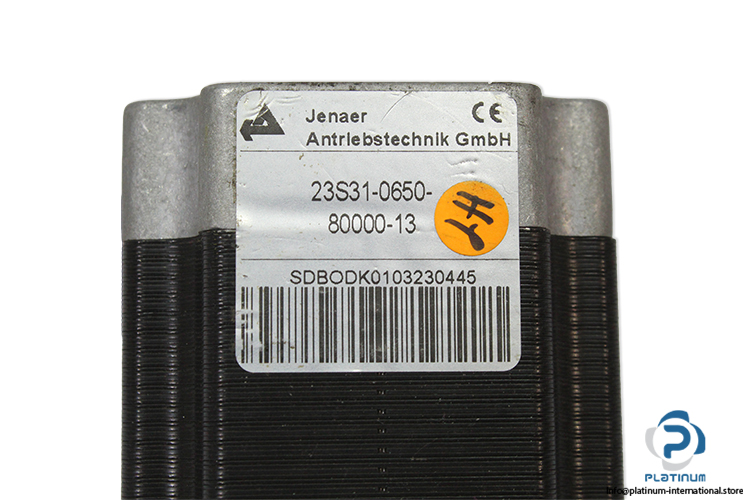

Code: SDBODK0103230445
Ideal for CNC systems, precision automation equipment, positioning applications, and industrial motion control solutions.
| Step Angle | 1.8 ° |
| Max. Holding Torque | 1.88 Nm |
| Stall Current (Per Phase) | 6.5 A |
| DC Link Voltage | 60 V DC |
| Max. Axial Load | 80 N |
| Max. Radial Load | 100 N |

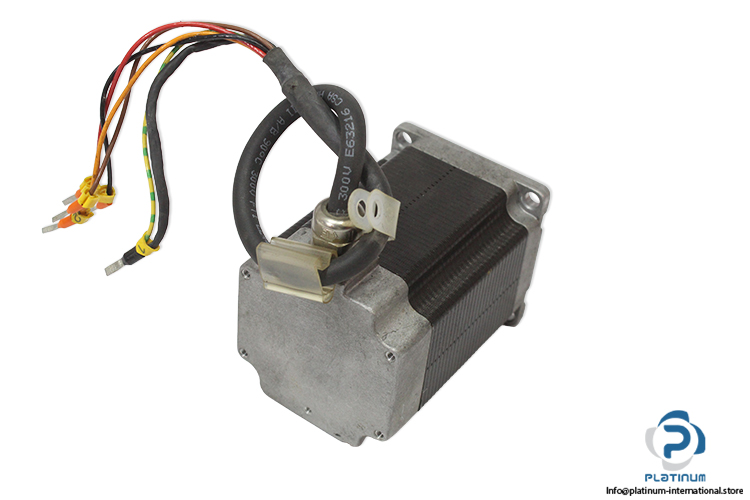

| Connection | Cable Wires (1.2 m) |
| Motor Length | 80 mm |
| Shaft Diameter | 8 mm |
| Mounting Flange | 55 x 55 x 20 mm |
| Ambient Temperature | -20 to 40 °C |
